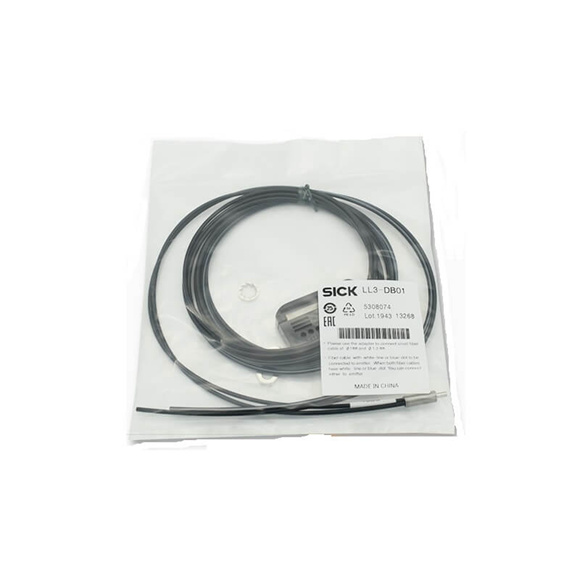

Sick Fiber Sensors LL3-DB01 LL3-TB01

Sick Fiber Sensors LL3-DB01 LL3-TB01
We are First Class Sick sensor dealer and Sick sensor distributor in China.
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Device type	Fibers
Detection principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180T, WLL24 Ex, KTL180
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Stainless steel 1)
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔ 2)
Thread size	M6

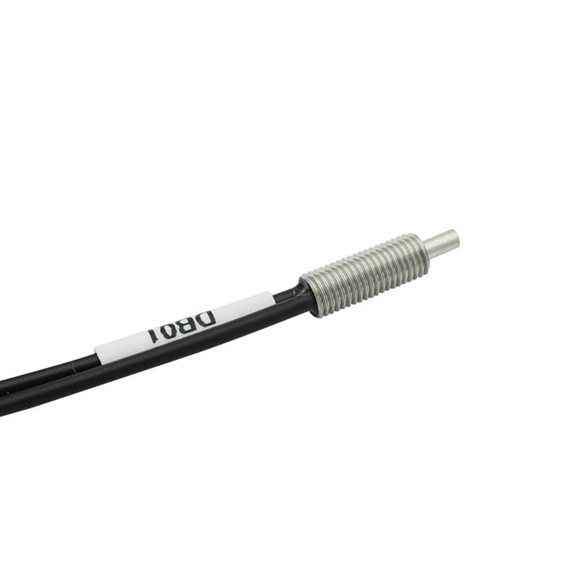

Fiber-optic head design	Threaded sleeve
Fiber arrangement	Coaxial arrangement
Core structure	S: Ø 1 mm, R: 16 x Ø 0,25 mm 3) Coaxial arrangement
Bend radius, fibre-optic cable	25 mm
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Ambient operating temperature	–40 °C … +70 °C
Diameter/thread size from 2 mm taper	≥ 2.8 mm
Length of taper	≥ 5 mm
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.015 mm 4)

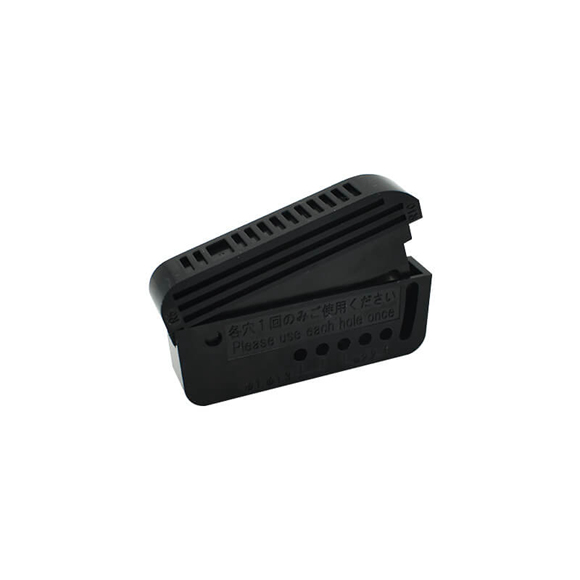

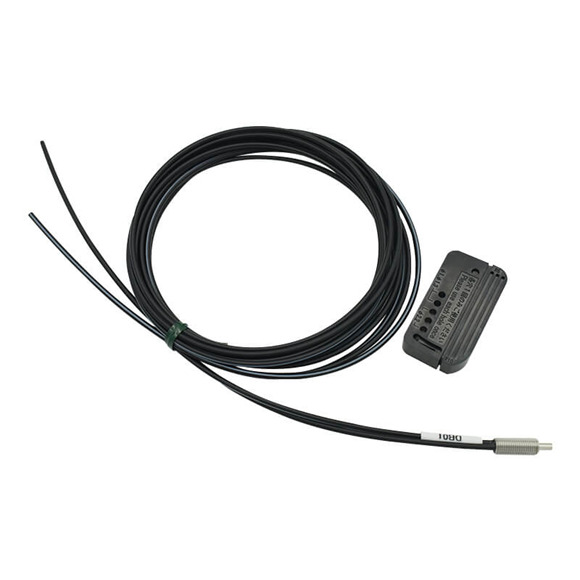

Included with delivery	Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters	No
Special features	Coaxial construction for exact switching. Standard, large sensing range
