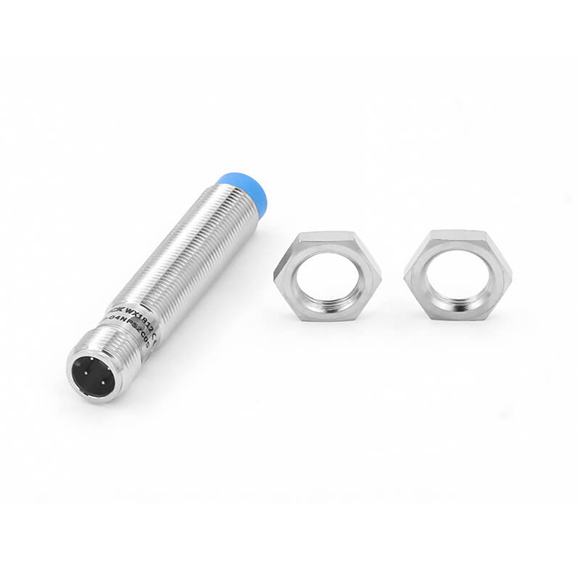

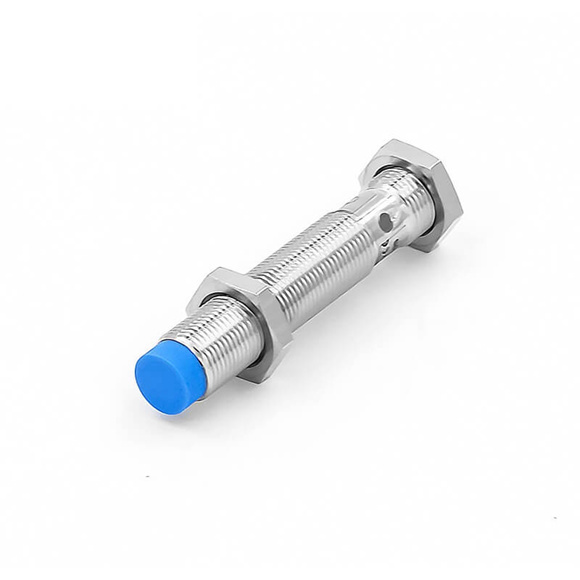

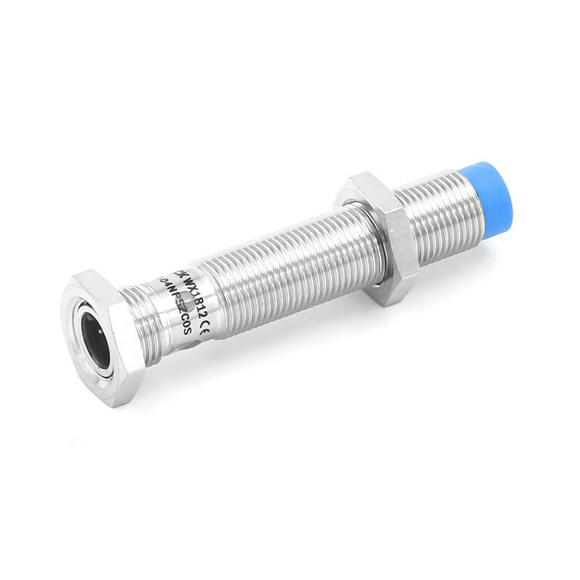

| Housing |
Cylindrical thread design |
| Housing |
Short-body |
| Thread size |
M8 x 1 |
| Diameter |
Ø 8 mm |
| Sensing range Sn |
2 mm |
| Safe sensing range Sa |
1.62 mm |
| Installation type |
Flush |
| Switching frequency |
4,000 Hz |
| Connection type |
Connector M8, 3-pin |
| Switching output |
PNP |
| Output function |
NC |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP67 1) |
| Supply voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10 % |
| Voltage drop |
≤ 2 V 1) |
| Current consumption |
10 mA 2) |
| Time delay before availability |
≤ 100 ms |
| Hysteresis |
5 % … 15 % |
| Reproducibility |
≤ 2 % 3) 4) |
| Temperature drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 200 mA |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C … +75 °C |
| Housing material |
Brass, nickel-plated |
| Sensing face material |
Plastic, PA 66 |
| Housing length |
41 mm |
| Thread length |
25 mm |
| Tightening torque, max. |
≤ 5 Nm |
| Items supplied |
Mounting nut, brass, nickel-plated (2x) |
| UL File No. |
NRKH.E181493 |
