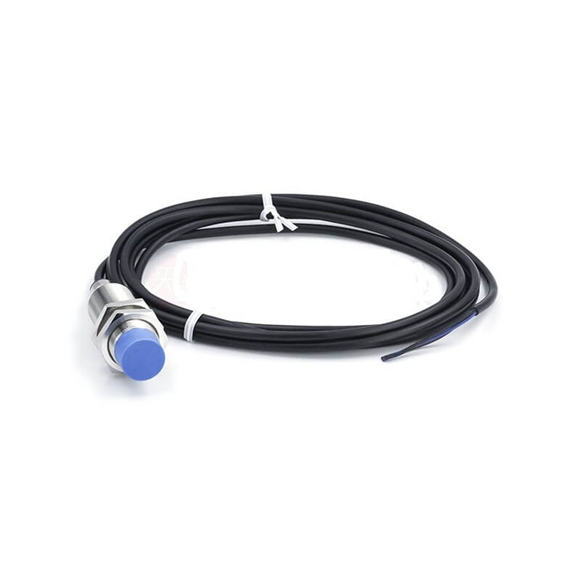

Housing | Cylindrical thread design | |||
Housing | Standard | |||
Thread size | M18 x 1 | |||
Diameter | Ø 18 mm | |||
Sensing range Sn | 8 mm | |||
Safe sensing range Sa | 6.48 mm | |||
Installation type | Flush | |||
Switching frequency | 1,000 Hz | |||
Connection type | Cable, 3-wire, 2 m | |||
Switching output | NPN | |||
Output function | NO | |||
Electrical wiring | DC 3-wire | |||
Enclosure rating | IP67 1) | |||
Supply voltage | 10 V DC … 30 V DC | |||
Ripple | ≤ 10 % | |||
Voltage drop | ≤ 2 V 1) | |||
Current consumption | 10 mA 2) | |||
Time delay before availability | ≤ 100 ms | |||
Hysteresis | 5 % … 15 % | |||
Reproducibility | ≤ 2 % 3) 4) | |||
Temperature drift (of Sr) | ± 10 % | |||
EMC | According to EN 60947-5-2 | |||
Continuous current Ia | ≤ 200 mA | |||
Cable material | PVC | |||
Conductor size | 0.25 mm² | |||
Cable diameter | Ø 3.9 mm | |||
Short-circuit protection | ✔ | |||
Reverse polarity protection | ✔ | |||
Power-up pulse protection | ✔ | |||
Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm | |||
Ambient operating temperature | –25 °C … +75 °C | |||
Housing material | Brass, nickel-plated | |||
Sensing face material | Plastic, PA 66 | |||
Housing length | 67 mm | |||
Thread length | 52 mm | |||
Tightening torque, max. | ≤ 40 Nm | |||
Items supplied | Mounting nut, brass, nickel-plated (2x) | |||
UL File No. | NRKH.E181493 |
