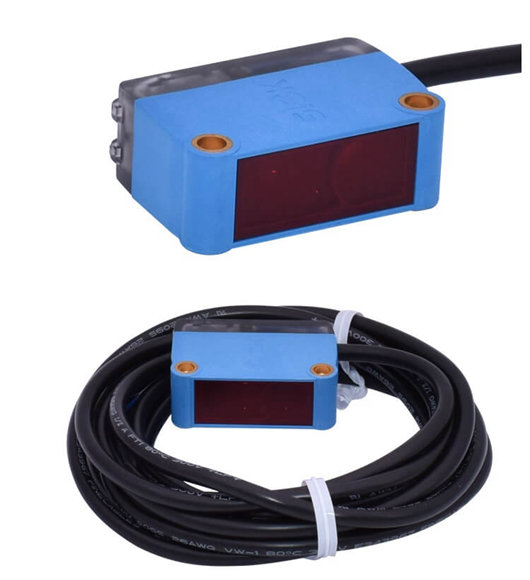

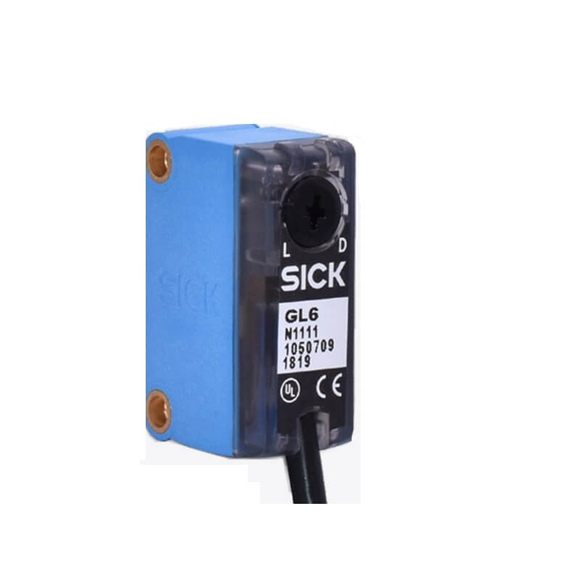

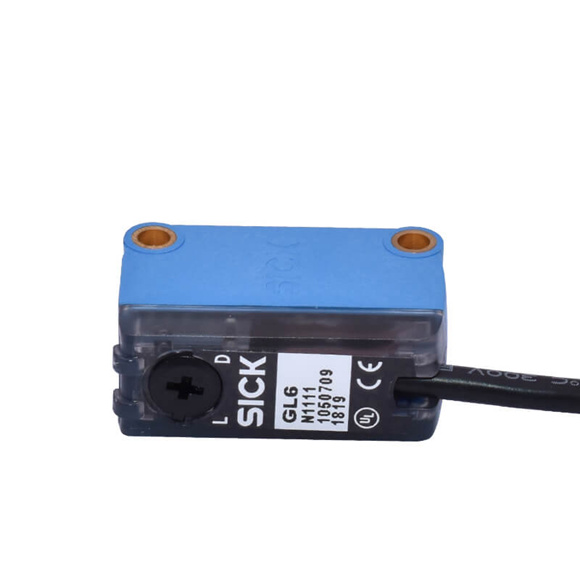

Sick Photoelectric sensors GL6-N1111 GL6-N1112

Series#: Sick Photoelectric sensors

Product Details

Qty:

Specification



Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Housing design (light emission) Rectangular
Sensing range max. ≤ 6 m 1)
Sensing range ≤ 5 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 8 mm (350 mm)
Wave length 650 nm
Adjustment None



Supply voltage 10 V DC … 30 V DC 1)
Ripple ± 10 % 2)
Current consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Signal voltage NPN HIGH/LOW Approx. VS / ≤ 3 V
Output current Imax. ≤ 100 mA 4)
Response time < 625 µs 5)
Switching frequency 1,000 Hz 6)
Connection type Cable, 3-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection A 8)

B 9)

D 10)

Protection class III
Weight 60 g
Polarisation filter
Housing material Plastic, ABS/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C … +55 °C 11)
Ambient storage temperature –40 °C … +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
