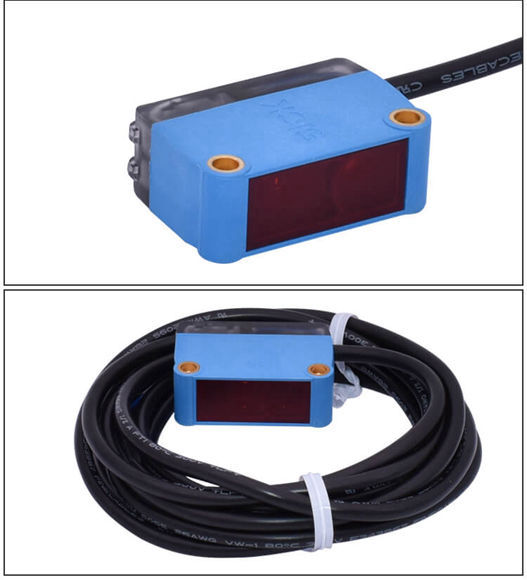

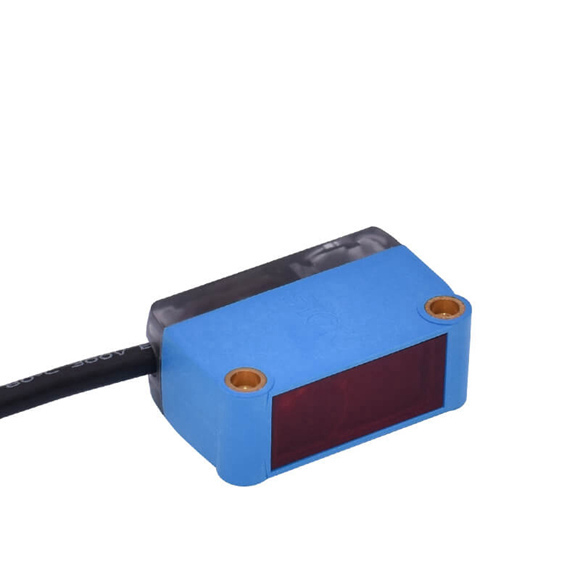

Sensor/ detection principle | Photoelectric retro-reflective sensor, Dual lens |
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Housing design (light emission) | Rectangular |
Sensing range max. | ≤ 6 m 1) |
Sensing range | ≤ 5 m 1) |
Type of light | Visible red light |
Light source | PinPoint LED 2) |
Light spot size (distance) | Ø 8 mm (350 mm) |
Wave length | 650 nm |
Adjustment | None |
Supply voltage | 10 V DC … 30 V DC 1) |
Ripple | ± 10 % 2) |
Current consumption | 30 mA 3) |
Switching output | PNP |
Switching mode | Light/dark switching |

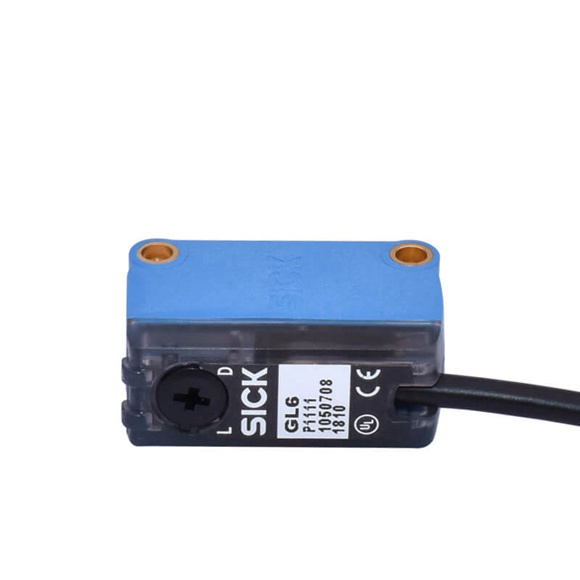

Switching mode selector | Selectable via light/dark selector |
Signal voltage PNP HIGH/LOW | VS – (≤ 3 V) / approx. 0 V |
Output current Imax. | ≤ 100 mA 4) |
Response time | < 625 µs 5) |
Switching frequency | 1,000 Hz 6) |
Connection type | Cable, 3-wire, 2 m 7) |
Cable material | PVC |
Conductor cross-section | 0.14 mm² |
Circuit protection | A 8)
B 9) D 10) |
Protection class | III |
Weight | 60 g |
Polarisation filter | ✔ |
Housing material | Plastic, ABS/PC |
Optics material | Plastic, PMMA |
Enclosure rating | IP67 |
Ambient operating temperature | –25 °C … +55 °C 11) |
Ambient storage temperature | –40 °C … +70 °C |
UL File No. | NRKH.E348498 & NRKH7.E348498 |
