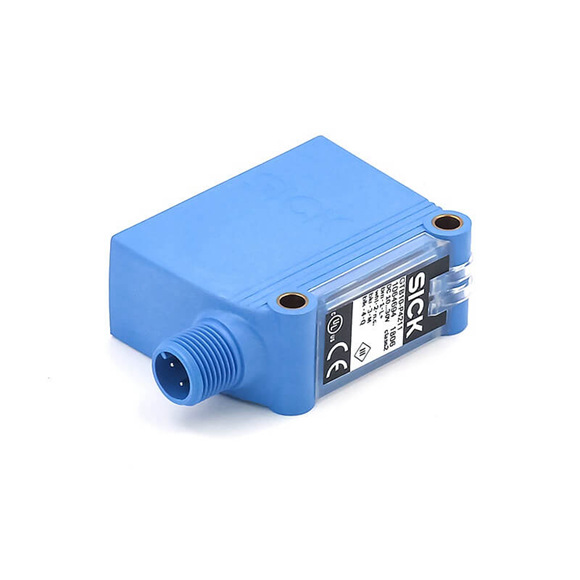

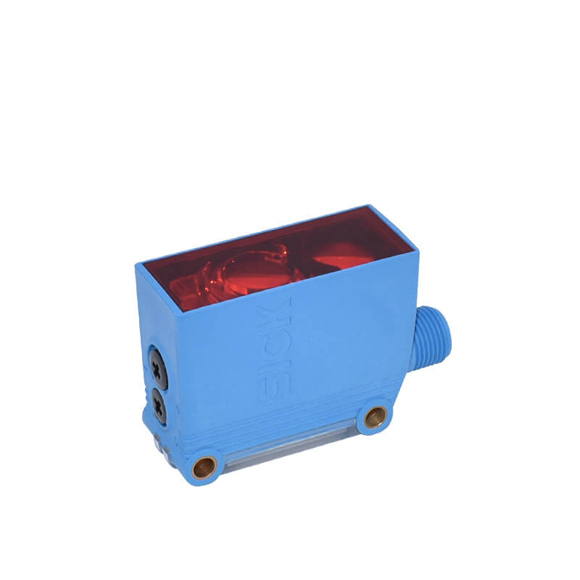

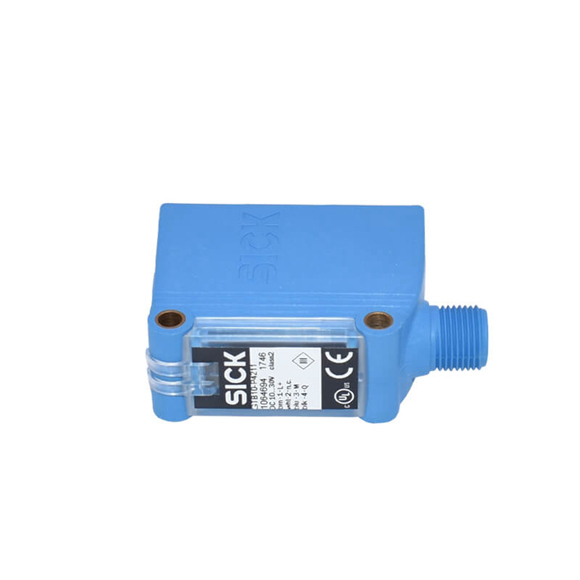

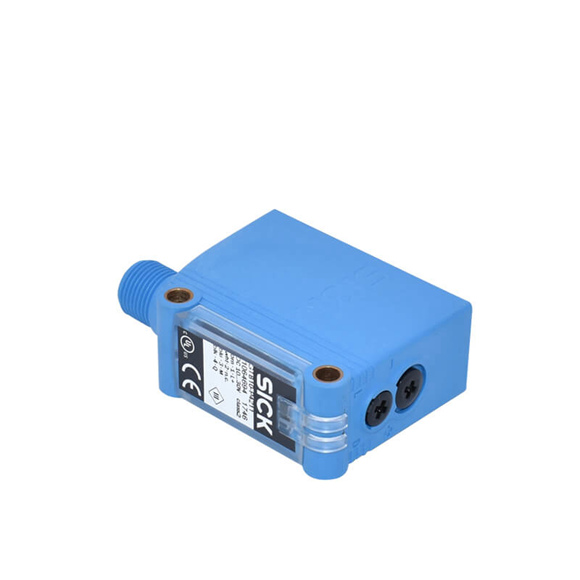

Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
Housing design (light emission) | Rectangular |
Sensing range max. | 20 mm … 950 mm 1) |
Type of light | Visible red light |
Light source | PinPoint LED 2) |
Light spot size (distance) | Ø 8 mm (700 mm) |
Wave length | 625 nm |

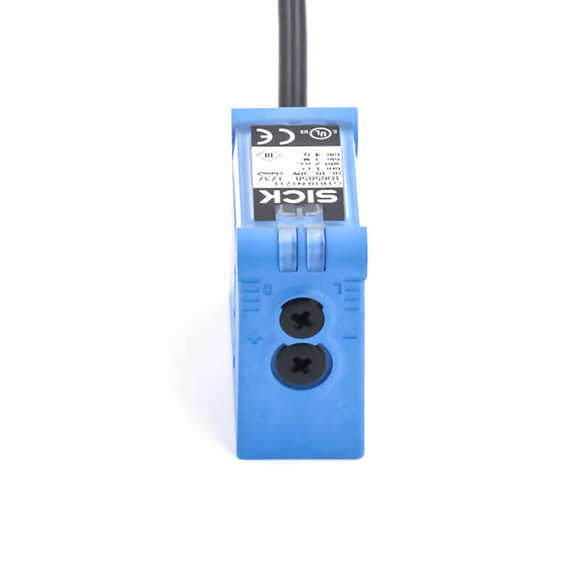

Adjustment | Potentiometer, 5 turns |
Supply voltage | 10 V DC … 30 V DC 1) |
Ripple | ± 5 Vpp 2) |
Current consumption | 20 mA |
Switching output | PNP |
Switching mode | Light/dark switching |
Switching mode selector | Selectable via light/dark selector |
Output current Imax. | ≤ 100 mA |
Response time | ≤ 500 µs 3) |
Switching frequency | 1,000 Hz 4) |
Connection type | Male connector M12, 4-pin |
Circuit protection | A 5)
B 6) C 7) D 8) |
Protection class | III |
Weight | 35 g |
Housing material | Plastic, ABS/PMMA |
Enclosure rating | IP67 |
EMC | EN 60947-5-2 |
Ambient operating temperature | –30 °C … +60 °C |
Ambient storage temperature | –40 °C … +70 °C |
UL File No. | NRKH.E348498 & NRKH7.E348498 |
More standards | UL325 9) |
