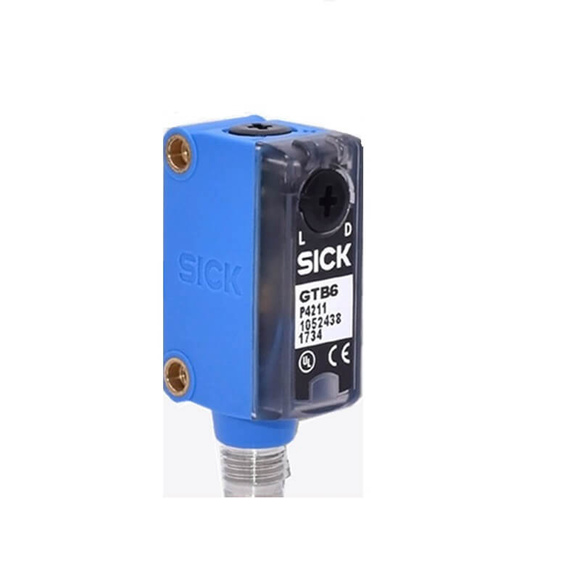

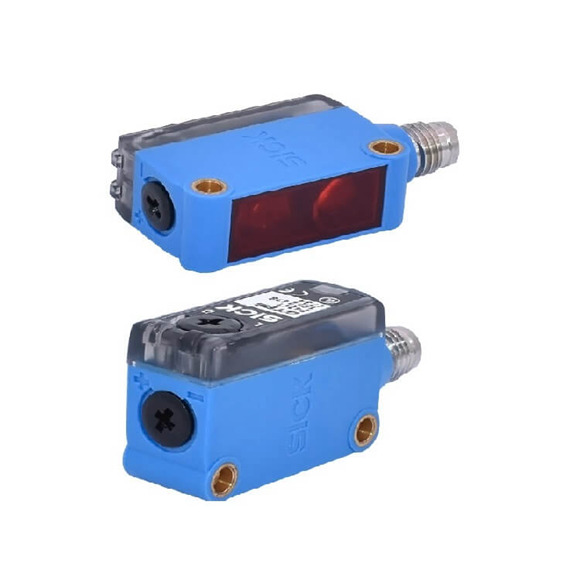

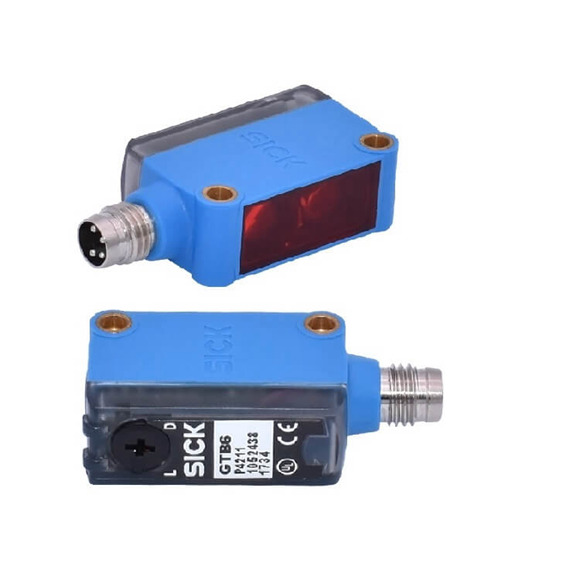

| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm … 250 mm 1) |
| Sensing range | 35 mm … 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | VS – (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | < 625 µs 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | A 7)
B 8) D 9) |
| Protection class | III |
| Weight | 20 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C 10) |
| Ambient storage temperature | –40 °C … +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
