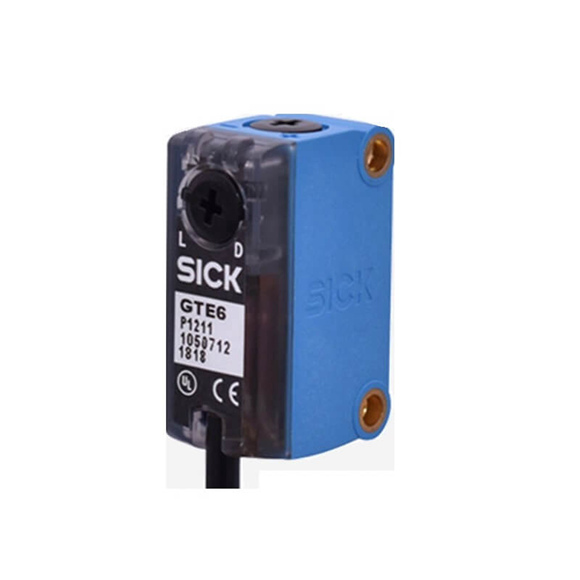

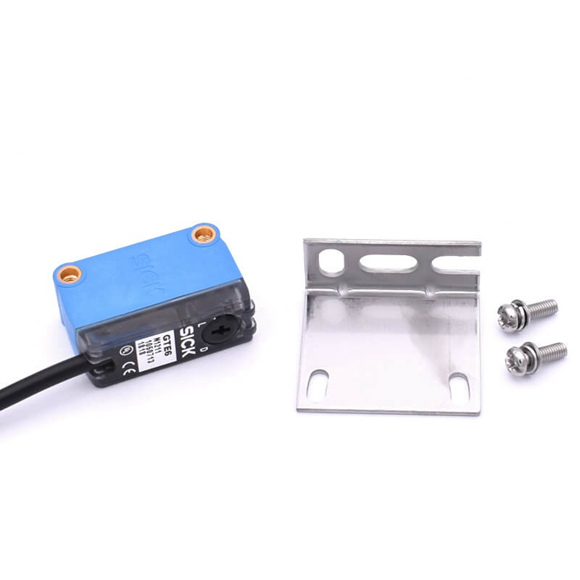

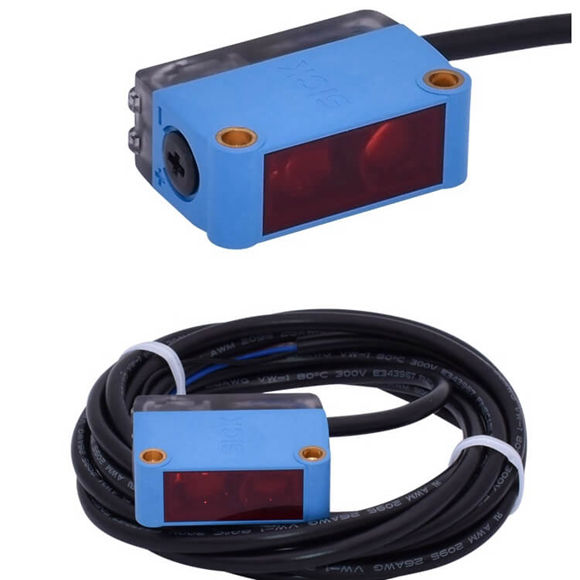

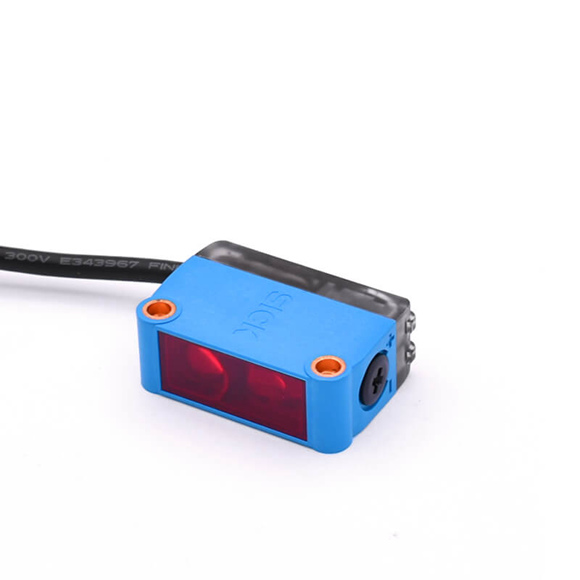

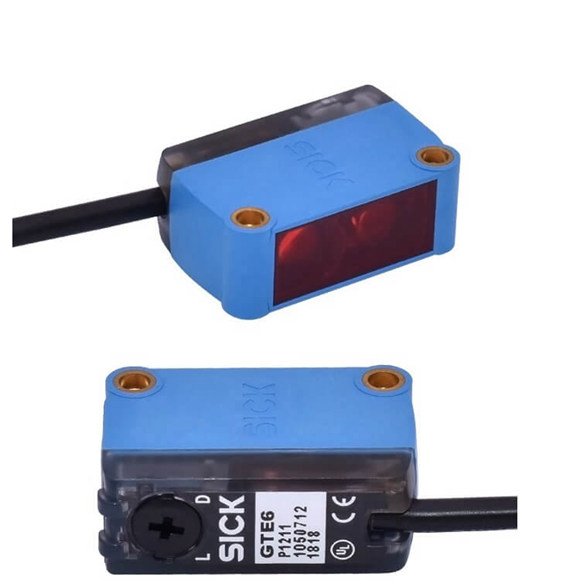

Sensor/ detection principle | Photoelectric proximity sensor, Energetic |
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Housing design (light emission) | Rectangular |
Sensing range max. | ≤ 300 mm 1) |
Sensing range | ≤ 250 mm |
Type of light | Visible red light |
Light source | PinPoint LED 2) |
Light spot size (distance) | Ø 7 mm (90 mm) |
Wave length | 650 nm |
Adjustment | Mechanical spindle, 5 turns |
Supply voltage | 10 V DC … 30 V DC 1) |
Ripple | ± 10 % 2) |
Current consumption | 30 mA 3) |
Switching output | PNP |
Switching mode | Light/dark switching |
Switching mode selector | Selectable via light/dark selector |
Signal voltage PNP HIGH/LOW | VS – (≤ 3 V) / approx. 0 V |
Output current Imax. | ≤ 100 mA 4) |
Response time | < 1,250 ms 5) |
Switching frequency | 500 Hz 6) |
Connection type | Male connector M8, 4-pin |
Circuit protection | A 7)
B 8) D 9) |
Protection class | III |
Weight | 20 g |
Housing material | Plastic, ABS/PC |
Optics material | Plastic, PMMA |
Enclosure rating | IP67 |
Ambient operating temperature | –25 °C … +55 °C 10) |
Ambient storage temperature | –40 °C … +70 °C |
UL File No. | NRKH.E348498 & NRKH7.E348498 |
