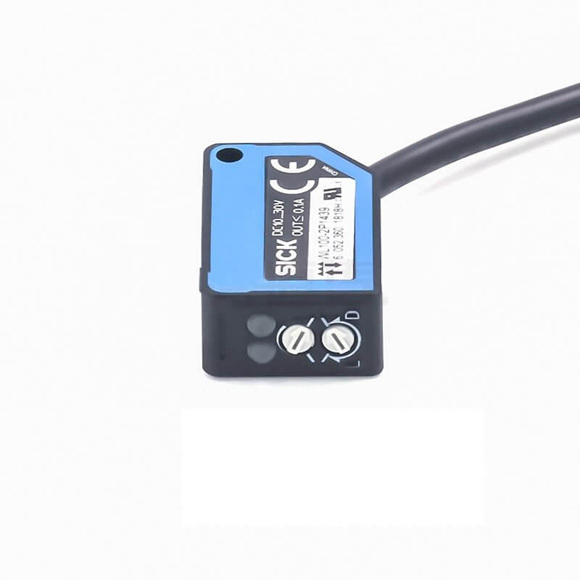

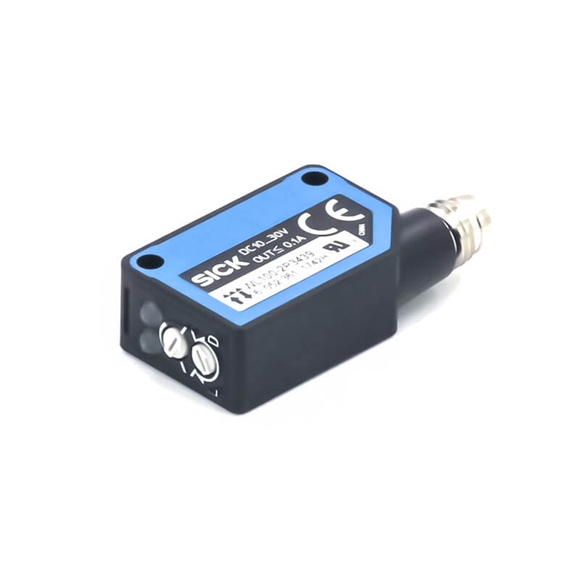

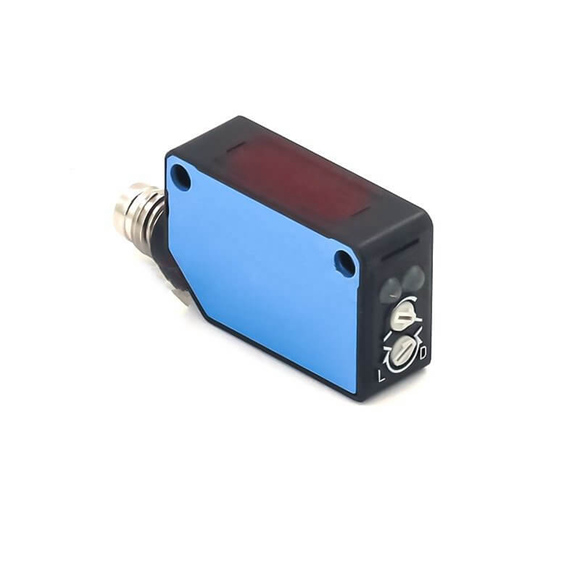

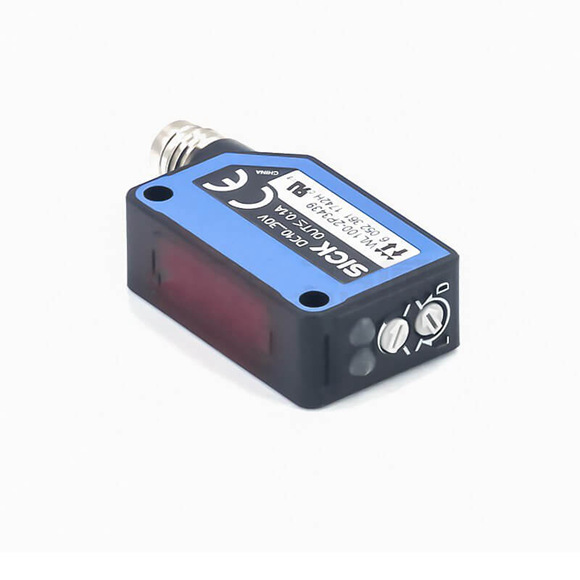

Sick Photoelectric sensors WL100-2P3439/-2N3439

Series#: Sick Photoelectric sensors

Product Details

Qty:

Specification



Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m … 7.2 m 1)
Sensing range 0.01 m … 5.5 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 280 mm (4 m)
Wave length 632 nm
Adjustment Potentiometer (Sensitivity)
Supply voltage 10 V DC … 30 V DC 1)
Ripple ± 10 % 2)
Current consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW UV – 1,8 V / ca. 0 V
Output current Imax. 100 mA
Response time ≤ 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Connector M8, 3-pin
Circuit protection A 6)

B 7)

D 8)

Protection class III
Polarisation filter
Housing material Plastic, ABS/PC/POM
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Mounting bracket BEF-W100-A, Reflector P250
Ambient operating temperature –25 °C … +55 °C
Ambient storage temperature –40 °C … +70 °C
