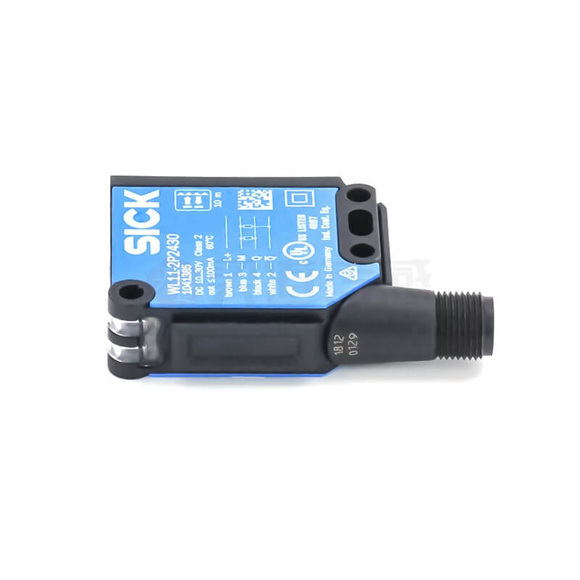

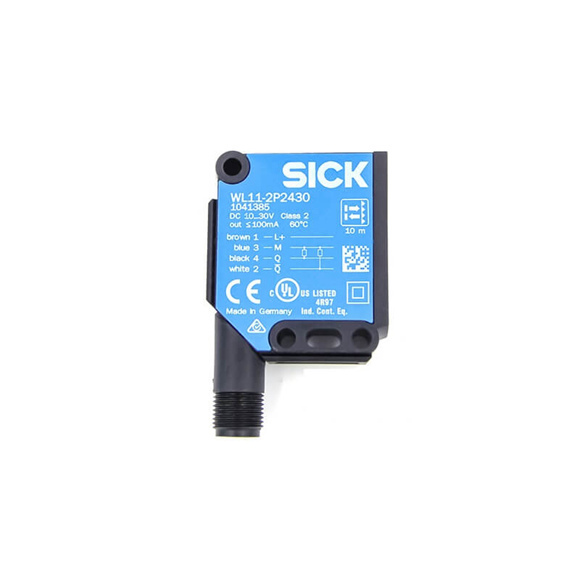

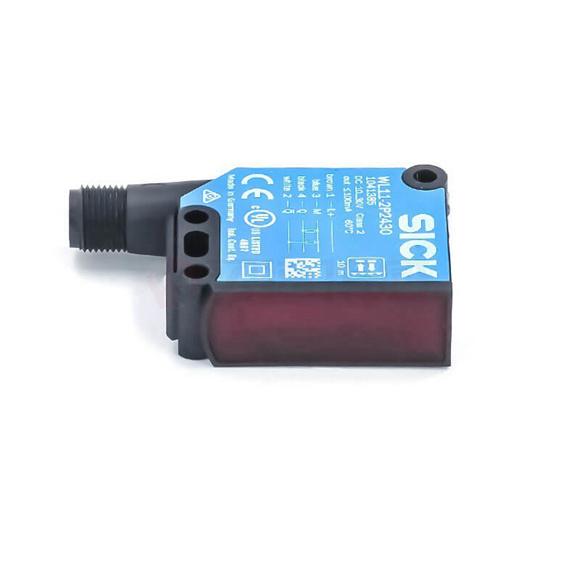

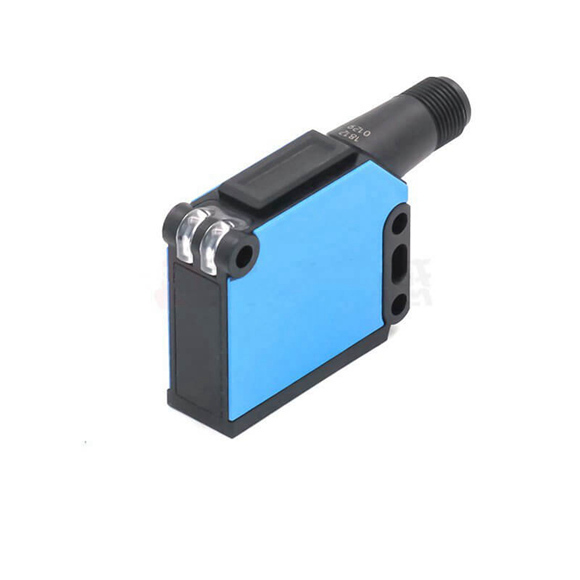

| Sensor/ detection principle | Photoelectric retro-reflective sensor, Dual lens |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.15 m … 10 m 1) |
| Sensing range | 0.15 m … 8 m 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 50 mm (3 m) |
| Angle of dispersion | Approx. 2.2° |
| Wave length | 640 nm |
| Adjustment | None |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | 30 mA 3) |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Uv – 2.5 V / approx. 0 V |
| Output current Imax. | 100 mA |
| Response time | ≤ 2.5 ms 4) |
| Switching frequency | 200 Hz 5) |
| Connection type | Cable, 4-wire, 2 m 6) |
| Cable material | PVC |
| Conductor cross-section | 0.25 mm² |
| Circuit protection | A 7)
C 8) D 9) |
| Protection class | II 10) |
| Weight | 200 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66
IP67 IP69K |
| Ambient operating temperature | –30 °C … +60 °C |
| Ambient storage temperature | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
