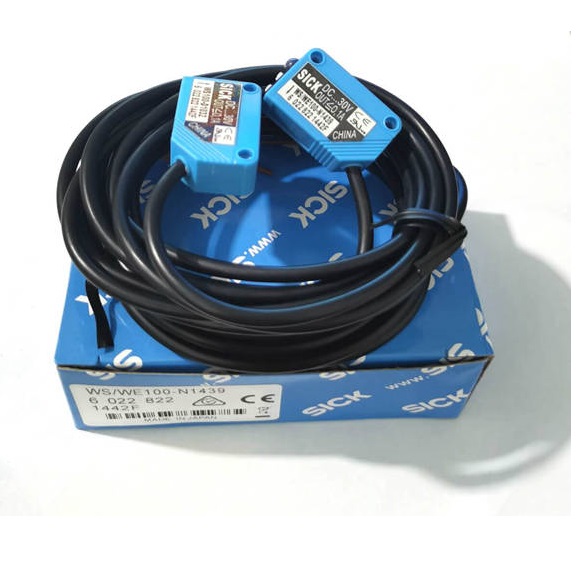

Sick Photoelectric sensors WS/WE100-N1439

Series#: Sick Photoelectric sensors

Product Details

Qty:

Specification

Sensor/ detection principle Through-beam photoelectric sensor
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 15 m
Sensing range 0 m … 12 m
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 1,500 mm (12 m)
Angle of dispersion Approx. 7.2°
Wave length 680 nm
Adjustment Potentiometer, 270°
Supply voltage 10 V DC … 30 V DC 1)
Ripple ± 10 % 2)
Power consumption, sender ≤ 15 mA 3)
Power consumption, receiver ≤ 20 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage NPN HIGH/LOW Approx. VS / < 1.8 V
Output current Imax. 100
Response time ≤ 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Angle of reception Approx. 15°
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm²
Circuit protection 7)

8)

9)

Weight 106 g
Housing material Plastic, ABS/PC/POM
Optics material Plastic, PMMA
Enclosure rating IP65
Items supplied 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
Ambient operating temperature –25 °C … +55 °C
Ambient storage temperature –40 °C … +70 °C
