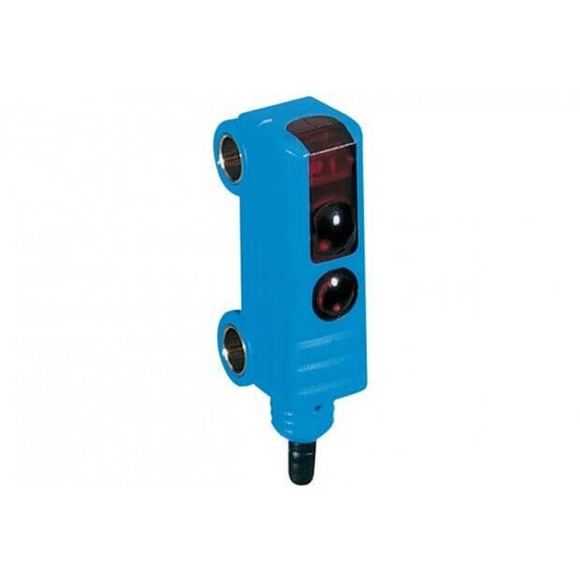

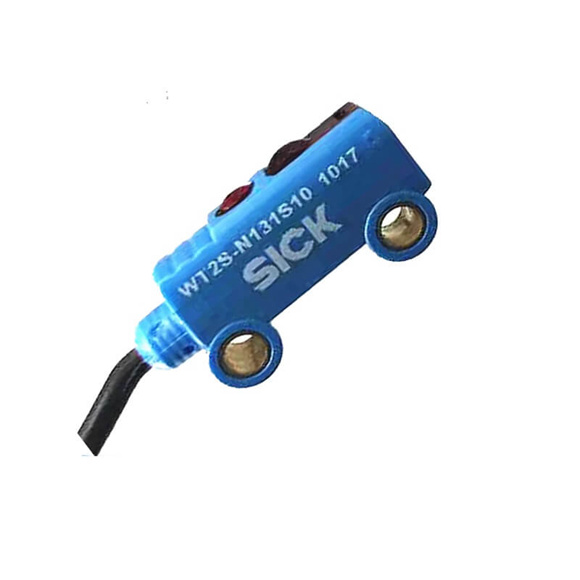

| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 7.6 mm x 25.1 mm x 12.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm … 30 mm 1) |
| Sensing range | 1 mm … 30 mm 1) |
| Focus | 15 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 1.5 mm (15 mm) |
| Wave length | 660 nm |
| Adjustment | None |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Switching output | NPN |
| Switching mode | Light switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.6 ms 3) |
| Switching frequency | 800 Hz 4) |
| Connection type | Cable, 3-wire, 2 m 5) |
| Cable material | PVC |
| Cable diameter | Ø 2.4 mm |
| Circuit protection | A 6)
C 7) D 8) |
| Weight | 18 g |
| Reverse polarity protection | ✔ |
| Short-circuit protection | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67
IP69K |
| Ambient operating temperature | –20 °C … +50 °C |
| Ambient storage temperature | –40 °C … +75 °C |
