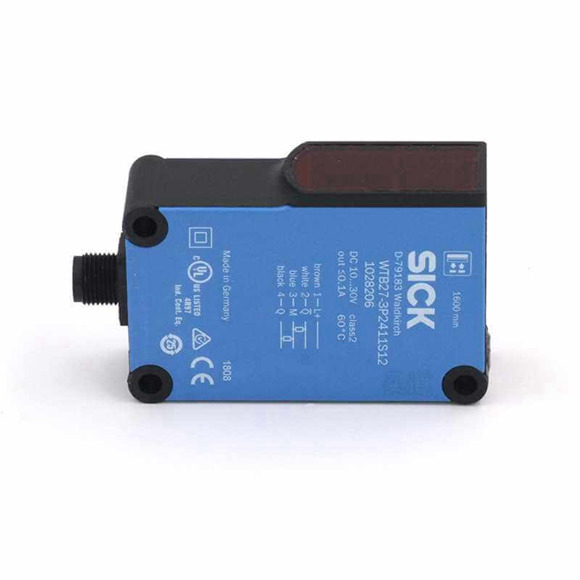

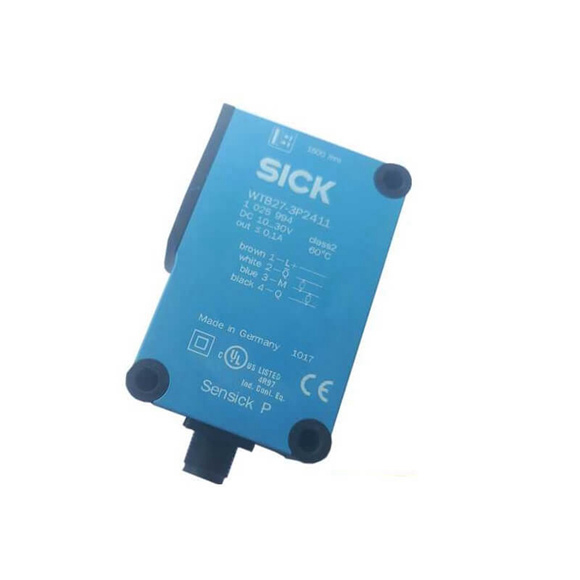

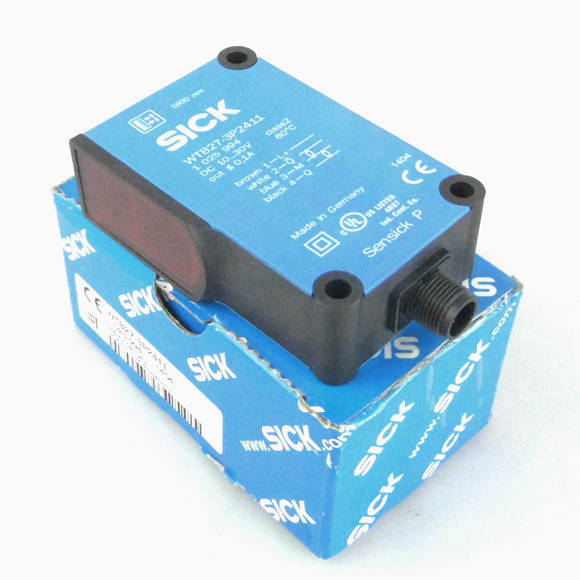

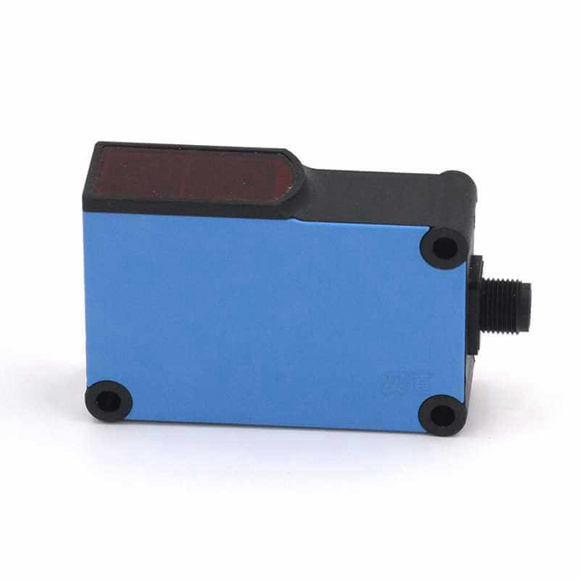

Sick Photoelectric sensors WTB27-3P2411

Series#: Sick Photoelectric sensors

Product Details

Qty:

Specification



Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm … 1,600 mm 1)
Sensing range 100 mm … 1,600 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 25 mm (800 mm)
Wave length 880 nm
Adjustment Potentiometer



Supply voltage 10 V DC … 30 V DC 1)
Ripple ≤ 5 Vpp 2)
Power consumption 40 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. ≤ 100 mA
Response time ≤ 1.5 ms 4)
Switching frequency 350 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection A 6)

B 7)

C 8)

Protection class II 9)
Weight 100 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP69K
Ambient operating temperature –40 °C … +60 °C
Ambient storage temperature –40 °C … +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
