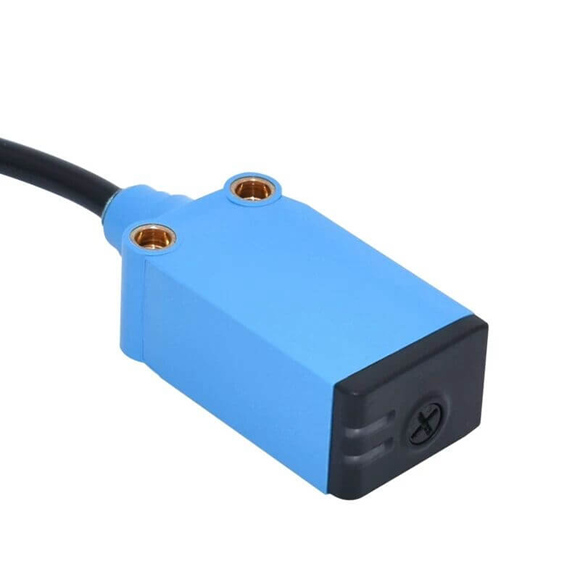

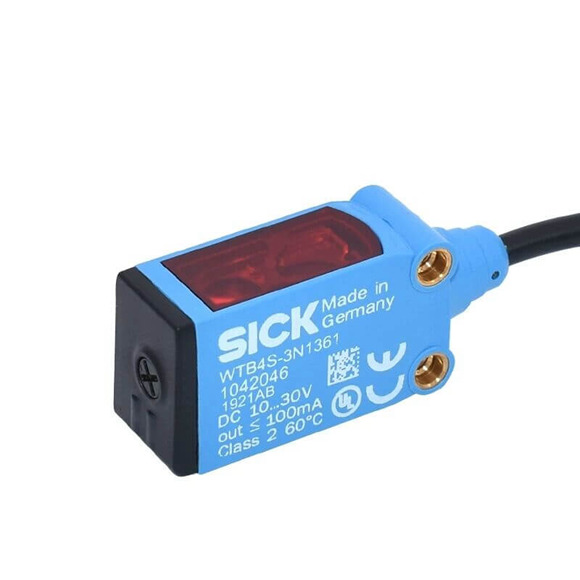

| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 4 mm … 180 mm 1) |
| Sensing range | 10 mm … 180 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6.5 mm (150 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Power consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | ≤ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable, 3-wire, 2 m 6) |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Circuit protection | A 7)
C 8) D 9) |
| Protection class | III |
| Weight | 30 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67
IP66 |
| Ambient operating temperature | –40 °C … +60 °C |
| Ambient storage temperature | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
