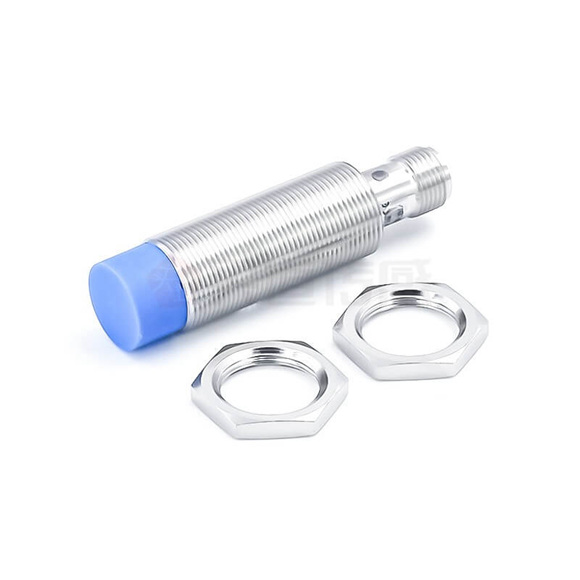

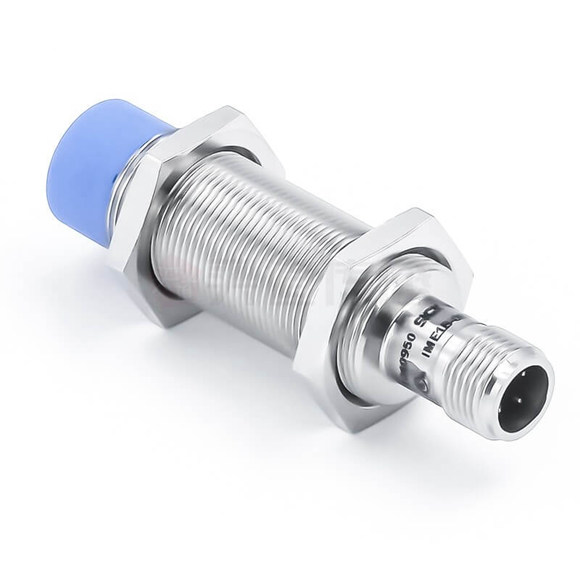

Sick proximity sensors IME18-08NPSZC0S IME18-08NPPZC0S/-08NPSZC0K

Series#: Sick proximity sensors

Product Details

Qty:

Specification



Housing Cylindrical thread design
Housing Standard
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 8 mm
Safe sensing range Sa 6.48 mm
Installation type Non-flush
Switching frequency 1,000 Hz

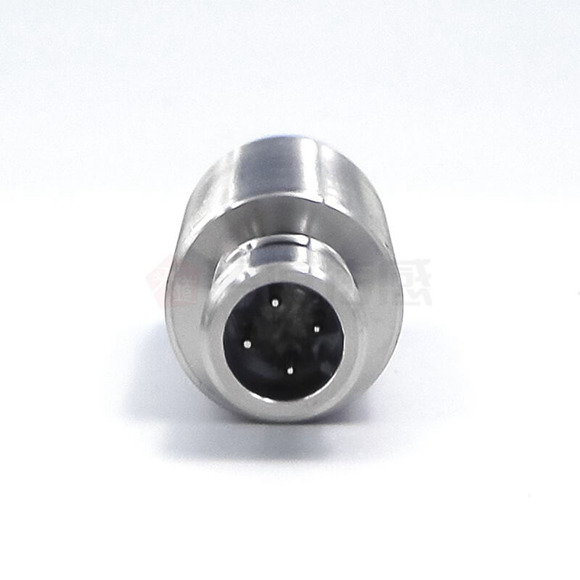

Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)



Supply voltage 10 V DC … 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2 V 1)
Current consumption 10 mA 2)
Time delay before availability ≤ 100 ms
Hysteresis 5 % … 15 %
Reproducibility ≤ 2 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
Short-circuit protection
Reverse polarity protection
Power-up pulse protection
Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature –25 °C … +75 °C
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 69 mm
Thread length 42 mm
Tightening torque, max. ≤ 40 Nm
Items supplied Mounting nut, brass, nickel-plated (2x)
UL File No. NRKH.E181493
