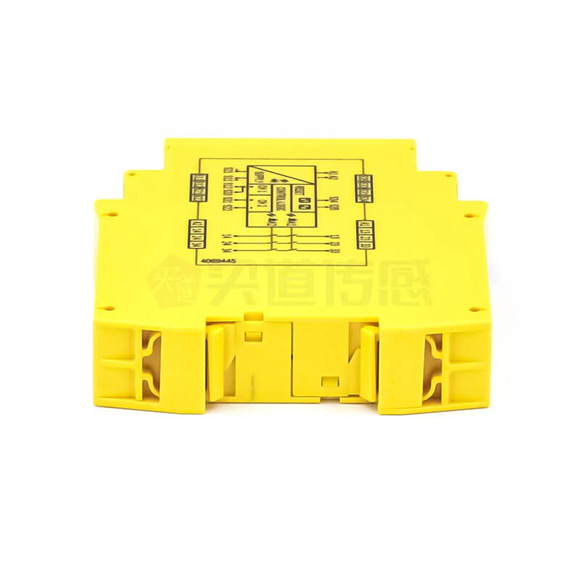

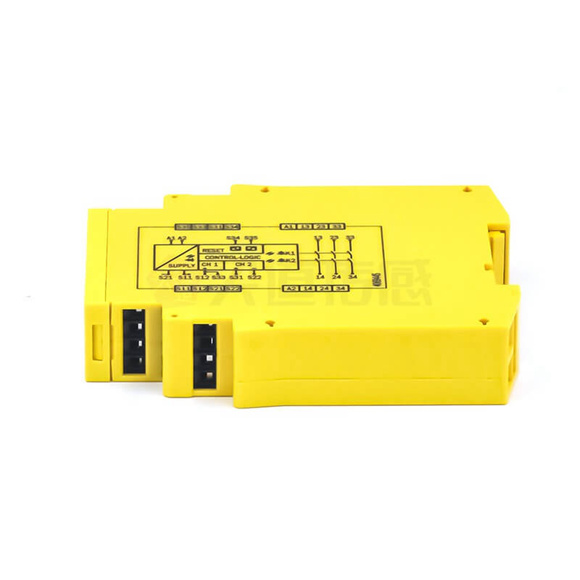

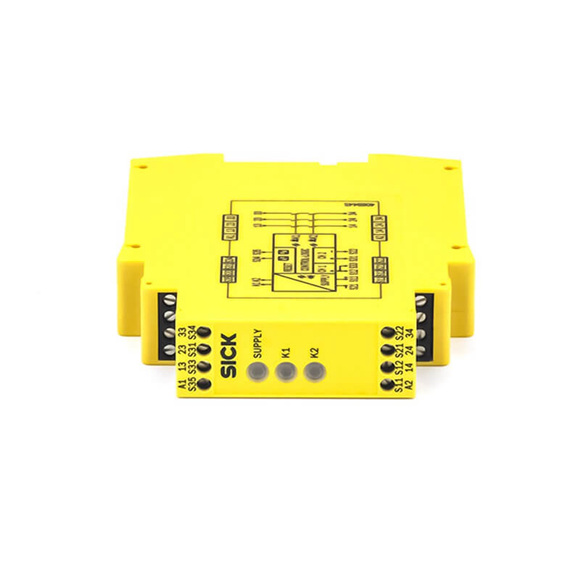

Sick Safety Relays UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2

Sick Safety Relays UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2
We are First Class Sick sensor dealer and Sick sensor distributor in China.
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Safety integrity level	SIL3 (IEC 61508) SILCL3 (EN 62061)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
B10d parameter	1.26 x 106 switching cycles (AC-15, 230 V, I = 1.5 A) 5.9 x 106 switching cycles (AC-15, 230 V, I = 0.75 A) 4.35 x 105 switching cycles (DC-13, 24 V, I = 2.5 A) 1 x 107 switching cycles (DC-13, 24 V, I = 0.63 A)
PFHD (mean probability of a dangerous failure per hour)	3.0 x 10-8 (EN ISO 13849)
TM (mission time)	20 years (EN ISO 13849)
Stop category	0 (EN 60204-1)

Connection type	Fixed screw terminals
Number of enabling current paths (N/O)	2, relevant for safety

Residual ripple	≤ 2.4 Vpp 1)
Power consumption	(≤ 4.6 VA (AC)) (≤ 2.1 W (DC))
Overvoltage category	II
Rated insulation voltage Ui	300 V AC
Rated impulse withstand voltage Uimp	4 kV
Test voltage	2 kV (50 Hz) (EN 60439-1)
Control voltage	22 V DC (≥ 17.4 V DC)
Control current	40 mA … 100 mA
Short-circuit current	≤ 300 mA, between S33 / S11 and S21
Short-circuit protection	Electronic fuse
Galvanized decoupling	– (between A1, A2 and S11, S21, S33)
