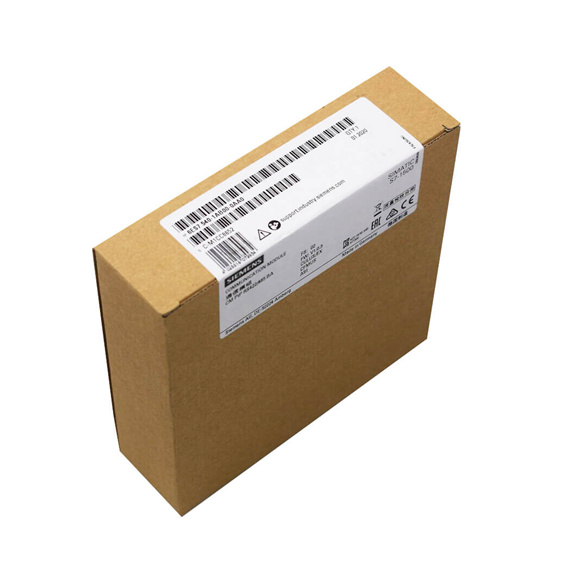

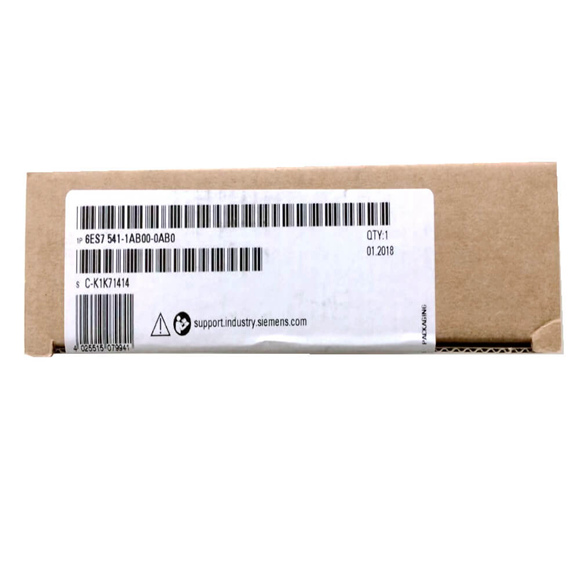

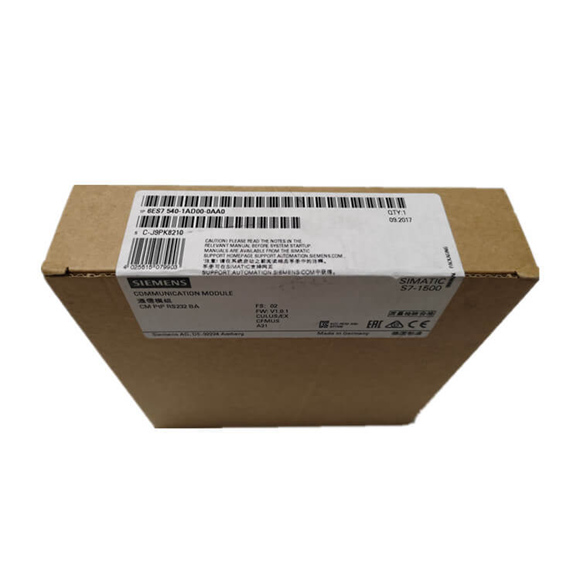

Siemens PLCs CM PtP module 6ES7540-1AB00-0AA0 6ES7540-1AD00-0AA0

Series#: Siemens PLC

Product Details

  • Modules for serial communication connections, scaled according to interface types, protocols, and performance
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7540-1AD00-0AA0 6ES7541-1AD00-0AB0 6ES7540-1AB00-0AA0 6ES7541-1AB00-0AB0
S7-1500, CM PTP RS232 BA S7-1500, CM PTP RS232 HF S7-1500, CM PTP RS422/485 BA S7-1500, CM PTP RS422/485 HF
General information
Product type designation CM PtP RS 232 BA CM PtP RS 232 HF CM PtP RS 422 / 485 BA CM PtP RS 422 / 485 HF
Product function


● I&M data



Yes; I&M 0 Yes; I&M 0 Yes; I&M 0 Yes; I&M 0


● Fast startup



Yes Yes Yes Yes
Engineering with


● STEP 7 TIA Portal configurable/integrated from version



V12 / V12 V12 / V12 V12 / V12 V12 / V12


● STEP 7 configurable/integrated from version



V5.5 SP2 with GSD file V5.5 SP2 with GSD file V5.5 SP2 with GSD file V5.5 SP2 with GSD file


● PROFIBUS from GSD version/GSD revision



– / – – / – – / – – / –


● PROFINET from GSD version/GSD revision



V2.3 V2.3 / – V2.3 V2.3 / –
Installation type/mounting
Rail mounting Yes; S7-1500 mounting rail Yes; S7-1500 mounting rail Yes; S7-1500 mounting rail Yes; S7-1500 mounting rail
Supply voltage
Type of supply voltage system power supply system power supply system power supply system power supply
Input current
Current consumption (rated value) 50 mA; From the backplane bus 50 mA; From the backplane bus 43 mA; From the backplane bus 43 mA; From the backplane bus
Power
Power available from the backplane bus 0.75 W 0.75 W 0.65 W 0.65 W
Power loss
Power loss, typ. 0.6 W 0.6 W 0.6 W 0.6 W
Address area
Address space per module


● Inputs



8 byte 8 byte 8 byte 8 byte
Interface types
RS 232


● Transmission rate, max.



19.2 kbit/s 115.2 kbit/s


● Cable length, max.



15 m 15 m


● RS 232 auxiliary signals



RTS, CTS, DTR, DSR, RI, DCD RTS, CTS, DTR, DSR, RI, DCD
RS 485


● Transmission rate, max.



19.2 kbit/s 115.2 kbit/s


● Cable length, max.



1 200 m 1 200 m
RS 422


● Transmission rate, max.



19.2 kbit/s 115.2 kbit/s


● Cable length, max.



1 200 m 1 200 m


● 4-wire full duplex connection



Yes Yes


● 4-wire multipoint connection



No No
Protocols
Integrated protocols
Freeport


— Telegram length, max.



1 kbyte 4 kbyte 1 kbyte 4 kbyte


— Bits per character



7 or 8 7 or 8 7 or 8 7 or 8


— Number of stop bits



1 or 2 bit 1 or 2 bit 1 or 2 bit 1 or 2 bit


— Parity



None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any
3964 (R)


— Telegram length, max.



1 kbyte 4 kbyte 1 kbyte 4 kbyte


— Bits per character



7 or 8 7 or 8 7 or 8 7 or 8


— Number of stop bits



1 or 2 bit 1 or 2 bit 1 or 2 bit 1 or 2 bit


— Parity



None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any None, even, odd, always 1, always 0, any
Modbus RTU master


— Address area



1 to 247, extended 1 to 65535 1 to 247, extended 1 to 65535


— Number of slaves, max.



1 32
MODBUS RTU slave


— Address area



1 to 247, extended 1 to 65535 1 to 247, extended 1 to 65535
Telegram buffer


● Buffer memory for telegrams



2 kbyte 8 kbyte 2 kbyte 8 kbyte


● Number of telegrams which can be buffered



255 255 255 255
Interrupts/diagnostics/status information
Diagnostics function Yes Yes Yes Yes
Alarms


● Diagnostic alarm



Yes Yes Yes Yes


● Hardware interrupt



No No No No
Diagnoses


● Wire-break



Yes Yes Yes Yes
Diagnostics indication LED


● RUN LED



Yes; green LED Yes; green LED Yes; green LED Yes; green LED


● ERROR LED



Yes; red LED Yes; red LED Yes; red LED Yes; red LED


● Receive RxD



Yes; Yellow LED Yes; Yellow LED Yes; Yellow LED Yes; Yellow LED


● Transmit TxD



Yes; Yellow LED Yes; Yellow LED Yes; Yellow LED Yes; Yellow LED
Potential separation
between backplane bus and interface Yes Yes Yes Yes
Isolation
Isolation tested with 707 V DC (type test) 707 V DC (type test) 707 V DC (type test) 707 V DC (type test)
Ambient conditions
Ambient temperature during operation


● horizontal installation, min.



0 °C 0 °C 0 °C 0 °C


● horizontal installation, max.



60 °C 60 °C 60 °C 60 °C


● vertical installation, min.



0 °C 0 °C 0 °C 0 °C


● vertical installation, max.



40 °C 40 °C 40 °C 40 °C
Decentralized operation
to SIMATIC S7-300 Yes Yes Yes Yes
to SIMATIC S7-400 Yes Yes Yes Yes
to SIMATIC S7-1500 Yes Yes Yes Yes
to standard PROFINET controller Yes Yes Yes Yes
Dimensions
Width 35 mm 35 mm 35 mm 35 mm
Height 147 mm 147 mm 147 mm 147 mm
Depth 127 mm 127 mm 127 mm 127 mm
Weights
Weight, approx. 0.22 kg 0.22 kg 0.22 kg 0.22 kg
