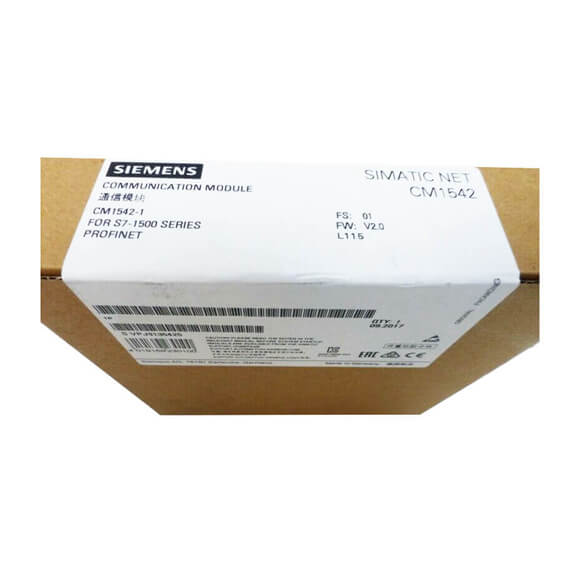

Siemens PLCs Communication module CM 1542-1 6GK7542-1AX00-0XE0

Series#: Siemens PLC

Product Details

  • Siemens PLCs Communication module CM 1542-1 6GK7542-1AX00-0XE0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6GK7542-1AX00-0XE0
Product type designation CM 1542-1
Transfer rate
Transfer rate


● at the 1st interface



10 … 100 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet 1
Number of electrical connections


● at the 1st interface acc. to Industrial Ethernet



2
Type of electrical connection


● at the 1st interface acc. to Industrial Ethernet



RJ45 port
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage DC
Supply voltage 1 from backplane bus 15 V
Relative symmetrical tolerance at DC


● at 15 V



3 %
Consumed current


● from backplane bus at DC at 15 V typical



0.22 A
Power loss [W] 3.3 W
Ambient conditions
Ambient temperature


● for vertical installation during operation



0 … 40 °C


● for horizontally arranged busbars during operation



0 … 60 °C


● during storage



-40 … +70 °C


● during transport



-40 … +70 °C
Relative humidity


● at 25 °C without condensation during operation maximum



95 %
Protection class IP IP20
Design, dimensions and weights
Module format Compact module S7-1500 single width
Width 35 mm
Height 142 mm
Depth 129 mm
Net weight 0.4 kg
Mounting type


● S7-1500 rail mounting



Yes
Product features, product functions, product components general
Number of units


● per CPU maximum



8


● Note



depending on CPU type
Performance data open communication
Number of possible connections for open communication


● by means of T blocks maximum



64; depending on the system upper limit
Amount of data


● as user data per ISO on TCP connection for open communication by means of T blocks maximum



65 536 byte
Number of Multicast stations 6
Performance data S7 communication
Number of possible connections for S7 communication


● maximum



64; depending on the system upper limit
Performance data multi-protocol mode
Number of active connections with multi-protocol mode 64
Performance data PROFINET communication as PN IO controller
Product function PROFINET IO controller Yes
Number of PN IO devices on PROFINET IO controller usable total 128
Number of PN IO IRT devices on PROFINET IO controller usable 64
Number of external PN IO lines with PROFINET per rack 10
Amount of data


● as user data for input variables as PROFINET IO controller maximum



8 Kibyte


● as user data for input variables as PROFINET IO controller maximum



8 Kibyte


● as user data for input variables per PN IO device as PROFINET IO controller maximum



1 433 byte


● as user data for output variables per PN IO device as PROFINET IO controller maximum



1 433 byte


● as user data for input variables per PN IO device for each sub-module as PROFINET IO controller maximum



256 byte


● as user data for output variables per PN IO device for each sub-module as PROFINET IO controller maximum



256 byte
Performance data PROFINET communication as PN IO device
Product function PROFINET IO device Yes
Amount of data


● as user data for input variables as PROFINET IO device maximum



8 192 byte


● as user data for input variables as PROFINET IO device maximum



8 192 byte


● as user data for input variables for each sub-module as PROFINET IO device



256 byte


● as user data for input variables for each sub-module as PROFINET IO device



256 byte


● as user data for the consistency area for each sub-module



256 byte
Number of submodules per PROFINET IO-Device 32
Performance data telecontrol
Protocol is supported


● TCP/IP



Yes
Product functions management, configuration, engineering
Product function MIB support Yes
Protocol is supported


● SNMP v1



Yes


● DCP



Yes


● LLDP



Yes
Configuration software


● required



STEP 7 Professional V14 (TIA Portal) or higher
Identification & maintenance function


● I&M0 – device-specific information



Yes


● I&M1 – higher-level designation/location designation



Yes
Product functions Diagnostics
Product function Web-based diagnostics Yes; via S7-1500 CPU
