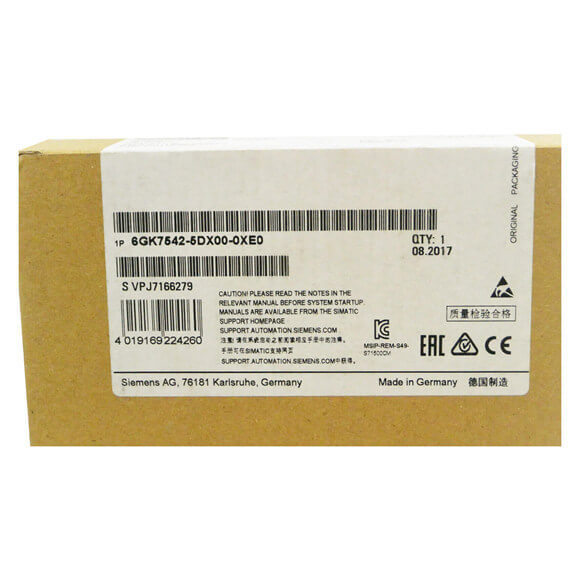

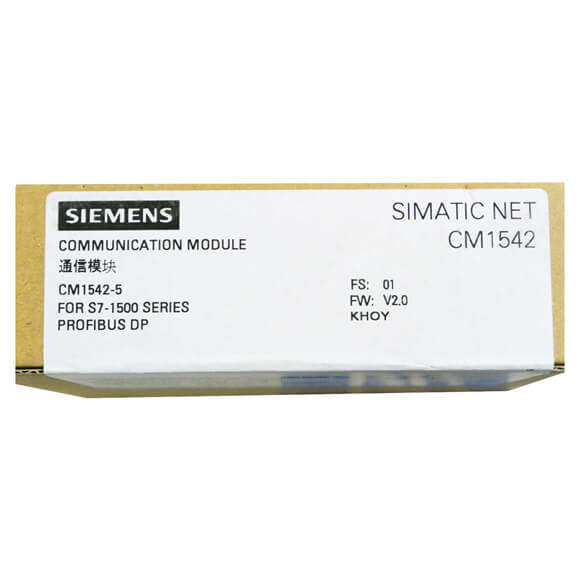

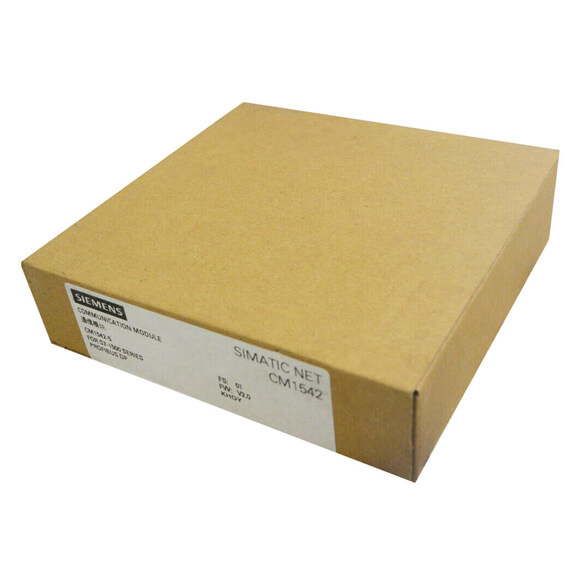

Siemens PLCs Communication module CM 1542-5 6GK7542-5DX00-0XE0

Series#: Siemens PLC

Product Details

  • Siemens PLCs CM 1542-5 Communication module 6GK7542-5DX00-0XE0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6GK7542-5DX00-0XE0
Product type designation CM 1542-5
Transfer rate
Transfer rate


● at the 1st interface acc. to PROFIBUS



9.6 kbit/s … 12 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet 0
Number of electrical connections


● at the 1st interface acc. to PROFIBUS



1
Type of electrical connection


● at the 1st interface acc. to PROFIBUS



9-pin Sub-D socket (RS485)
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage DC
Supply voltage 1 from backplane bus 15 V
Relative symmetrical tolerance at DC


● at 15 V



3 %
Consumed current


● from backplane bus at DC at 15 V typical



0.2 A
Power loss [W] 3 W
Ambient conditions
Ambient temperature


● for vertical installation during operation



0 … 40 °C


● for horizontally arranged busbars during operation



0 … 60 °C


● during storage



-40 … +70 °C


● during transport



-40 … +70 °C
Relative humidity


● at 25 °C without condensation during operation maximum



95 %
Protection class IP IP20
Design, dimensions and weights
Module format Compact module S7-1500 single width
Width 35 mm
Height 142 mm
Depth 129 mm
Net weight 0.4 kg
Mounting type


● S7-1500 rail mounting



Yes
Product features, product functions, product components general
Number of units


● per CPU maximum



8


● Note



depending on CPU type
Performance data open communication
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum 30
Amount of data


● as user data per connection for open communication by means of SEND/RECEIVE blocks maximum



240 byte
Performance data PROFIBUS DP
Service as DP master


● DPV1



Yes
Number of DP slaves


● on DP master usable



125
Amount of data


● of the address area of the inputs as DP master total



8 192 byte


● of the address area of the outputs as DP master total



8 192 byte


● of the address area of the inputs per DP slave



244 byte


● of the address area of the outputs per DP slave



244 byte
Service as DP slave


● DPV0



Yes


● DPV1



Yes
Amount of data


● of the address area of the inputs as DP slave total



240 byte


● of the address area of the outputs as DP slave total



240 byte
Performance data S7 communication
Number of possible connections for S7 communication


● maximum



48; depending on the system upper limit
Performance data multi-protocol mode
Number of active connections with multi-protocol mode 48
Performance data telecontrol
Protocol is supported


● TCP/IP



No
Product functions management, configuration, engineering
Configuration software


● required



STEP 7 Professional V12 (TIA Portal) or higher
Identification & maintenance function


● I&M0 – device-specific information



Yes


● I&M1 – higher-level designation/location designation



Yes
Product functions Diagnostics
Product function Web-based diagnostics Yes; via S7-1500 CPU
Product functions time
Product function pass on time synchronization Yes
