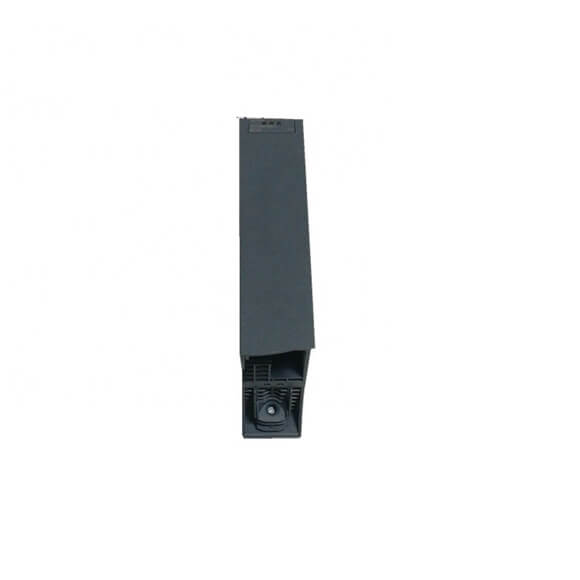

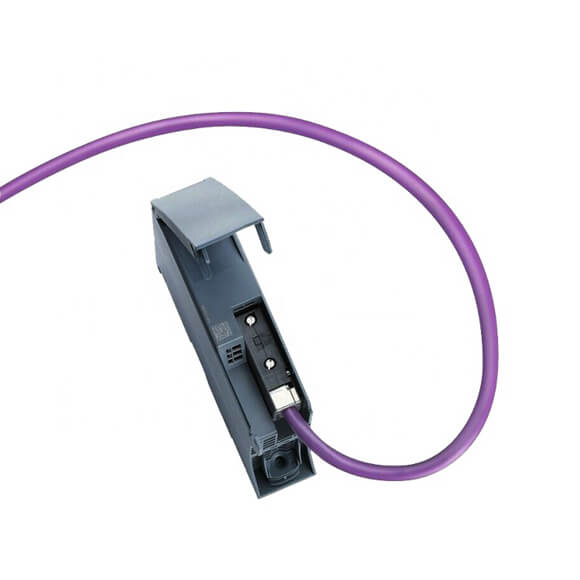

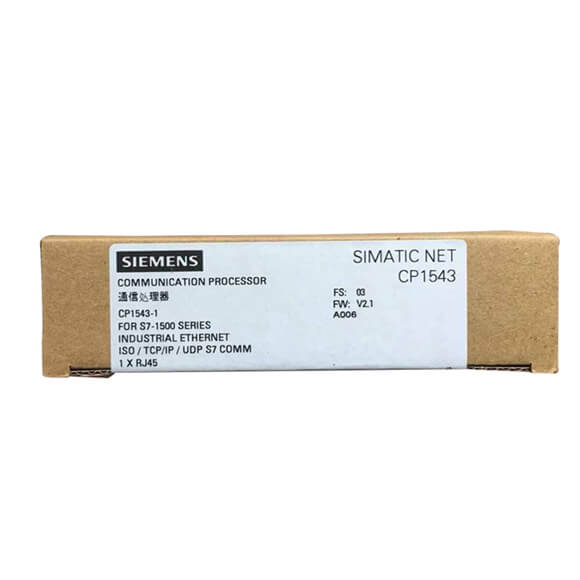

Siemens PLCs Communications CP 1543-1 6GK7543-1AX00-0XE0

Series#: Siemens PLC

Product Details

  • Siemens PLCs Communications CP 1543-1 6GK7543-1AX00-0XE0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6GK7543-1AX00-0XE0
Product type designation CP 1543-1
Transfer rate
Transfer rate


● at the 1st interface



10 … 1 000 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet 1
Number of electrical connections


● at the 1st interface acc. to Industrial Ethernet



1
Type of electrical connection


● at the 1st interface acc. to Industrial Ethernet



RJ45 port
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage DC
Supply voltage 1 from backplane bus 15 V
Relative symmetrical tolerance at DC


● at 15 V



3 %
Consumed current


● from backplane bus at DC at 15 V typical



0.35 A
Power loss [W] 5.3 W
Ambient conditions
Ambient temperature


● for vertical installation during operation



0 … 40 °C


● for horizontally arranged busbars during operation



0 … 60 °C


● during storage



-40 … +70 °C


● during transport



-40 … +70 °C
Relative humidity


● at 25 °C without condensation during operation maximum



95 %
Protection class IP IP20
Design, dimensions and weights
Module format Compact module S7-1500 single width
Width 35 mm
Height 142 mm
Depth 129 mm
Net weight 0.35 kg
Mounting type


● S7-1500 rail mounting



Yes
Product features, product functions, product components general
Number of units


● per CPU maximum



8


● Note



depending on CPU type
Performance data open communication
Number of possible connections for open communication


● by means of T blocks maximum



118; depending on the system upper limit
Amount of data


● as user data per ISO on TCP connection for open communication by means of T blocks maximum



65 536 byte
Number of Multicast stations 118
Performance data S7 communication
Number of possible connections for S7 communication


● maximum



118; depending on the system upper limit
Performance data multi-protocol mode
Number of active connections with multi-protocol mode 118
Performance data IT functions
Number of possible connections


● as client by means of FTP maximum



32


● as server by means of FTP maximum



16
Number of possible connections


● as server by means of HTTP maximum



4


● as e-mail client maximum



1
Amount of data as user data for email maximum 64 Kibyte
Performance data telecontrol
Protocol is supported


● TCP/IP



Yes
Product functions management, configuration, engineering
Product function MIB support Yes
Protocol is supported


● SNMP v1



Yes


● DCP



Yes


● LLDP



No
Configuration software


● required



STEP 7 Professional V14 (TIA Portal) or higher
Identification & maintenance function


● I&M0 – device-specific information



Yes


● I&M1 – higher-level designation/location designation



Yes
Product functions Diagnostics
Product function Web-based diagnostics Yes; via S7-1500 CPU
