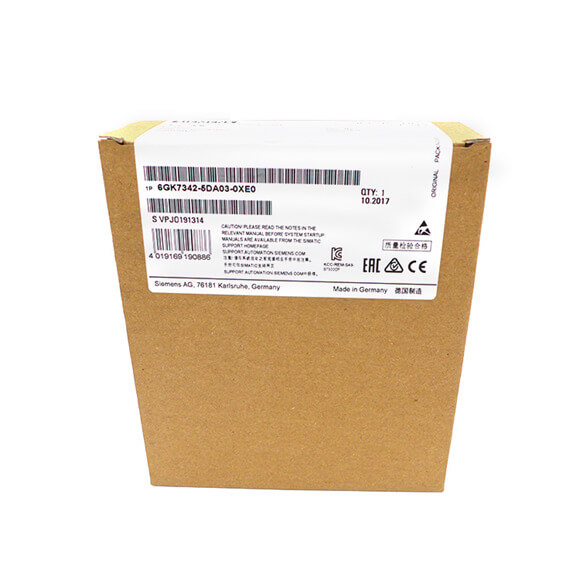

Article number | 6GK7342-5DA03-0XE0 |
Product type designation | CP 342-5 |
Transfer rate | |
Transfer rate | |
● at the 1st interface acc. to PROFIBUS
|
9.6 kbit/s … 12 Mbit/s |
Interfaces | |
Number of interfaces acc. to Industrial Ethernet | 0 |
Number of electrical connections | |
● at the 1st interface acc. to PROFIBUS
|
1 |
● for power supply
|
1 |
Type of electrical connection | |
● at the 1st interface acc. to PROFIBUS
|
9-pin Sub-D socket (RS485) |
● for power supply
|
4-pole terminal block |
Supply voltage, current consumption, power loss | |
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 5 V |
Supply voltage external | 24 V |
Supply voltage external at DC Rated value | 24 V |
Relative positive tolerance at DC at 24 V | 20 % |
Relative negative tolerance at DC at 24 V | 15 % |
Consumed current | |
● from backplane bus at DC at 5 V typical
|
0.15 A |
● from external supply voltage at DC at 24 V typical
|
0.25 A |
Power loss [W] | 6.75 W |
Ambient conditions | |
Ambient temperature | |
● during operation
|
0 … 60 °C |
● during storage
|
-40 … +70 °C |
● during transport
|
-40 … +70 °C |
Relative humidity | |
● at 25 °C without condensation during operation maximum
|
95 % |
Protection class IP | IP20 |
Design, dimensions and weights | |
Module format | Compact module S7-300 single width |
Width | 40 mm |
Height | 125 mm |
Depth | 120 mm |
Net weight | 0.3 kg |
Product features, product functions, product components general | |
Number of units | |
● per CPU maximum
|
4 |
Performance data open communication | |
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 16 |
Amount of data | |
● as user data per connection for open communication by means of SEND/RECEIVE blocks maximum
|
240 byte |
