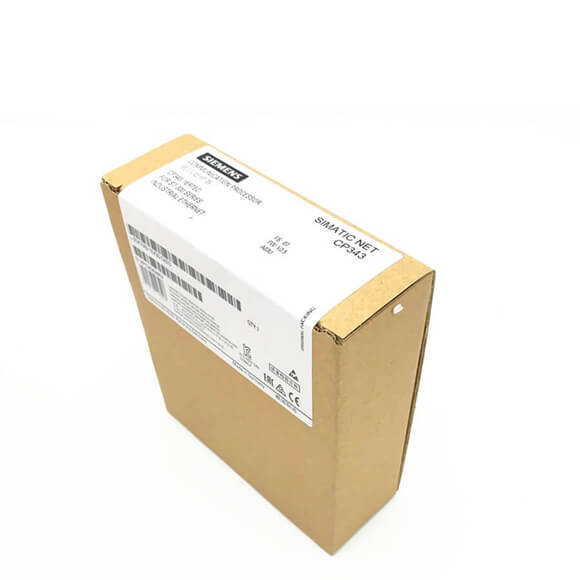

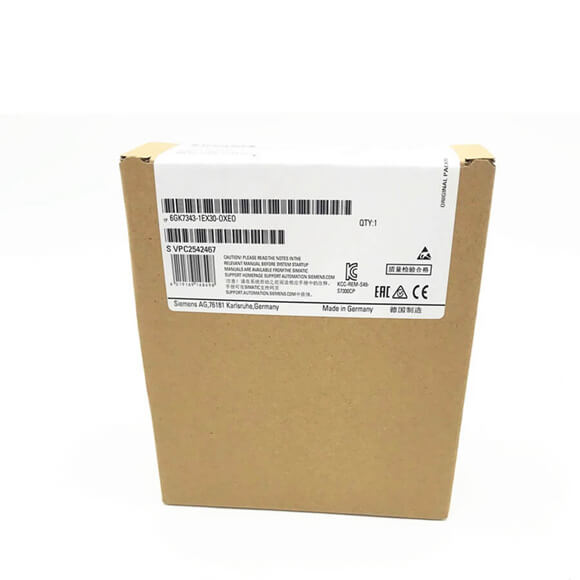

Siemens PLCs Communications processor CP 343-1 6GK7343-1EX30-0XE0
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6GK7343-1EX30-0XE0
Product type designation	CP 343-1
Transfer rate
Transfer rate
● at the 1st interface	10 … 100 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet	2
Number of electrical connections
● at the 1st interface acc. to Industrial Ethernet	2
● for power supply	1
Type of electrical connection
● of Industrial Ethernet interface	RJ45 port
● at the 1st interface acc. to Industrial Ethernet	RJ45 port
Type of electrical connection
● for power supply	2-pole plugable terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC
Supply voltage 1 from backplane bus	5 V
Supply voltage	24 V
Supply voltage external	24 V
Supply voltage external at DC Rated value	24 V
Relative positive tolerance at DC at 24 V	20 %
Relative negative tolerance at DC at 24 V	15 %
Consumed current
● from backplane bus at DC at 5 V typical	0.2 A
● from external supply voltage at DC at 24 V typical	0.16 A
● from external supply voltage at DC at 24 V maximum	0.2 A
Power loss [W]	5.8 W
Ambient conditions
Ambient temperature
● for vertical installation during operation	0 … 40 °C
● for horizontally arranged busbars during operation	0 … 60 °C
● during storage	-40 … +70 °C
● during transport	-40 … +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %
Protection class IP	IP20
Design, dimensions and weights
Module format	Compact module S7-300 single width
Width	40 mm
Height	125 mm
Depth	120 mm
Net weight	0.22 kg
Mounting type
● S7-300 rail mounting	Yes
Performance data open communication
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum	16
Amount of data
● as user data per ISO connection for open communication by means of SEND/RECEIVE blocks maximum	8 Kibyte
● as user data per ISO on TCP connection for open communication by means of SEND/RECEIVE blocks maximum	8 Kibyte
● as user data per TCP connection for open communication by means of SEND/RECEIVE blocks maximum	8 Kibyte
● as user data per UDP connection for open IE communication by means of SEND/RECEIVE blocks maximum	2 Kibyte
Number of Multicast stations	16
Performance data S7 communication
Number of possible connections for S7 communication
● maximum	16
Performance data multi-protocol mode
Number of active connections with multi-protocol mode	32
Performance data PROFINET communication as PN IO controller
Number of PN IO devices on PROFINET IO controller usable total	32
Number of external PN IO lines with PROFINET per rack	1
Amount of data
● as user data for input variables as PROFINET IO controller maximum	1 Kibyte
● as user data for input variables as PROFINET IO controller maximum	1 Kibyte
● as user data for input variables per PN IO device as PROFINET IO controller maximum	1 433 byte
● as user data for output variables per PN IO device as PROFINET IO controller maximum	1 433 byte
● as user data for input variables per PN IO device for each sub-module as PROFINET IO controller maximum	240 byte
● as user data for output variables per PN IO device for each sub-module as PROFINET IO controller maximum	240 byte
Performance data PROFINET communication as PN IO device
Product function PROFINET IO device	Yes
Amount of data
● as user data for input variables as PROFINET IO device maximum	512 byte
● as user data for input variables as PROFINET IO device maximum	512 byte
● as user data for input variables for each sub-module as PROFINET IO device	240 byte
● as user data for input variables for each sub-module as PROFINET IO device	240 byte
● as user data for the consistency area for each sub-module	240 byte
Number of submodules per PROFINET IO-Device	32
Performance data telecontrol
Protocol is supported
● TCP/IP	Yes
Product functions management, configuration, engineering
Product function MIB support	Yes
Protocol is supported
● SNMP v1	Yes
● DCP	Yes
● LLDP	Yes
Configuration software
● required	STEP 7 V5.4 SP2 or higher / STEP 7 Professional V11 (TIA Portal) or higher
