Article number | 6GK7443-1EX30-0XE0 |

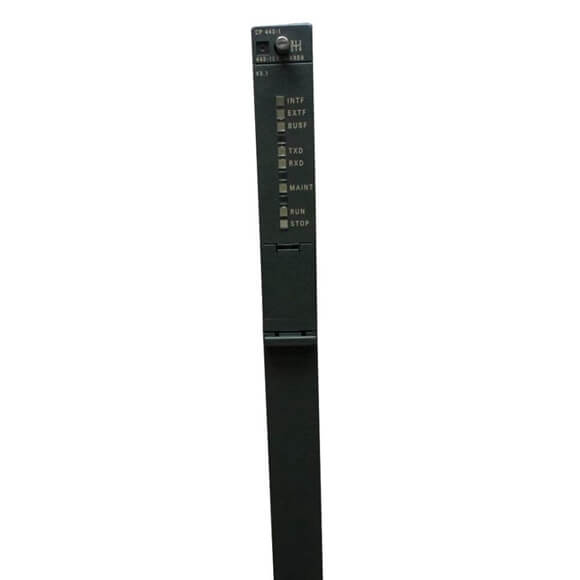

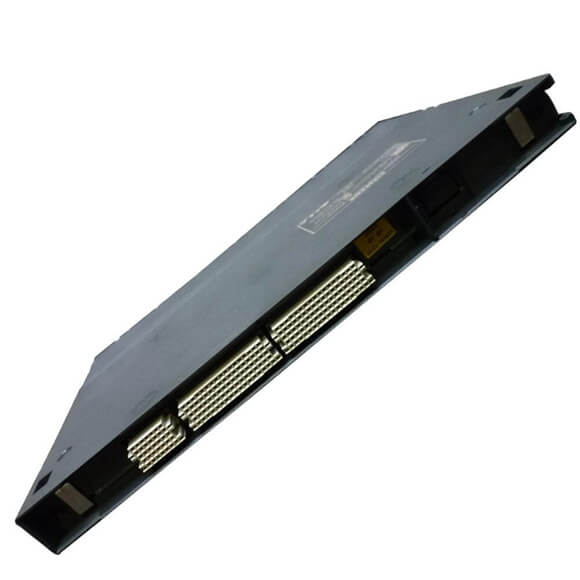

Product type designation | CP 443-1 |
Transfer rate | |
Transfer rate | |
● at the 1st interface
|
10 … 100 Mbit/s |
Interfaces | |
Number of interfaces acc. To
Industrial Ethernet |
2 |
Number of electrical connections | |
● at the 1st interface acc. to Industrial Ethernet
|
2 |
Type of electrical connection | |
● at the 1st interface acc. to Industrial Ethernet
|
RJ45 port |
design of the removable storage C-PLUG | No |
Supply voltage, current
consumption, power loss |
|
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 5 V |
Relative symmetrical tolerance at DC | |
● at 5 V
|
5 % |
Consumed current | |
● from backplane bus at DC at 5 V typical
|
1.4 A |
Power loss [W] | 7.25 W |
Ambient conditions | |
Ambient temperature | |
● during operation
|
0 … 60 °C |
● during storage
|
-40 … +70 °C |
● during transport
|
-40 … +70 °C |
Relative humidity | |
● at 25 °C without condensation during operation maximum
|
95 % |
Protection class IP | IP20 |
Design, dimensions and weights | |
Module format | Compact module S7-400 single width |
Width | 25 mm |
Height | 290 mm |
Depth | 210 mm |
Net weight | 0.7 kg |
Product features, product
functions, product components general |
|
Number of units | |
● per CPU maximum
|
14 |
● Note
|
max. 4 as PN IO ctrl. |
Performance data open communication | |
Number of possible
connections for open communication by means of SEND/RECEIVE blocks maximum |
64 |
Amount of data | |
● as user data per ISO connection for open communication by means of SEND/RECEIVE blocks maximum
|
8 Kibyte |
● as user data per ISO on TCP connection for open communication by means of SEND/RECEIVE blocks maximum
|
8 Kibyte |
● as user data per TCP connection for open communication by means of SEND/RECEIVE blocks maximum
|
8 Kibyte |
● as user data per UDP connection for open IE communication by means of SEND/RECEIVE blocks maximum
|
2 Kibyte |
Number of possible
connections for open communication |
|
● by means of T blocks maximum
|
64 |
Amount of data | |
● as user data per ISO on TCP connection for open communication by means of T blocks maximum
|
1 452 byte |
Performance data S7 communication | |
Number of possible connections
for S7 communication |
|
● maximum
|
128; when using several CPUs |
● with PG connections maximum
|
2 |
Performance data
multi-protocol mode |
|
Number of active connections
with multi-protocol mode |
128 |
Performance data PROFINET
communication as PN IO controller |
|
Product function PROFINET
IO controller |
Yes |
Number of PN IO devices on
PROFINET IO controller usable total |
128 |
Number of PN IO IRT
devices on PROFINET IO controller usable |
64 |
Number of external PN IO
lines with PROFINET per rack |
4 |
Amount of data | |
● as user data for input variables as PROFINET IO controller maximum
|
4 Kibyte |
● as user data for input variables as PROFINET IO controller maximum
|
4 Kibyte |
● as user data for input variables per PN IO device as PROFINET IO controller maximum
|
1 433 byte |
● as user data for output variables per PN IO device as PROFINET IO controller maximum
|
1 433 byte |
● as user data for input variables per PN IO device for each sub-module as PROFINET IO controller maximum
|
240 byte |
● as user data for output variables per PN IO device for each sub-module as PROFINET IO controller maximum
|
240 byte |
Product functions management,
configuration, engineering |
|
Product function MIB support | Yes |
Protocol is supported | |
● SNMP v1
|
Yes |
● DCP
|
Yes |
● LLDP
|
Yes |
Configuration software | |
● required
|
STEP 7 V5.5 SP3 or higher / STEP 7 Professional V12 (TIA Portal) or higher |
Product functions Diagnostics | |
Product function Web-based diagnostics | Yes |
Product functions Switch | |
Product feature Switch | Yes |
Product function | |
● switch-managed
|
No |
● with IRT PROFINET IO switch
|
Yes |
● Configuration with STEP 7
|
Yes |
Product functions redundancy | |
Product function | |
● Ring redundancy
|
Yes |
● Redundancy manager
|
Yes |
Protocol is supported Media
Redundancy Protocol (MRP) |
Yes |
Product functions Security | |
Product function | |
● password protection for Web applications
|
No |
● ACL – IP-based
|
Yes |
● ACL – IP-based for PLC/routing
|
No |
● switch-off of non-required services
|
Yes |
● Blocking of communication via physical ports
|
Yes |
● log file for unauthorized access
|
No |
Product functions time | |
Product function SICLOCK
support |
Yes |
Product function
pass on time synchronization |
Yes |
Protocol is supported | |
● NTP
|
Yes |
