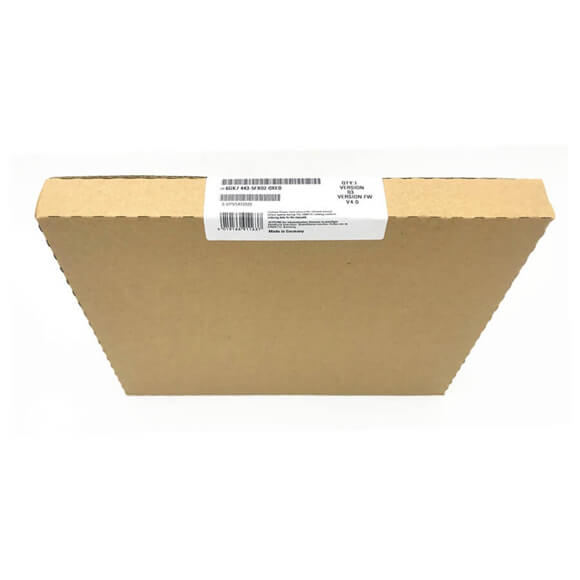

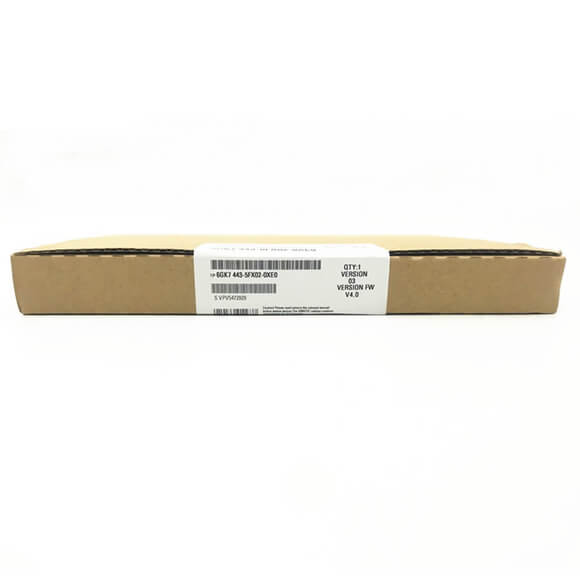

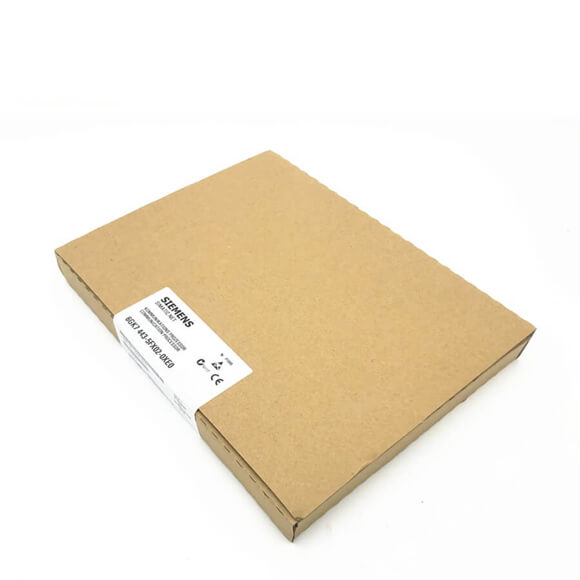

Article number | 6GK7443-5FX02-0XE0 |
Product type designation | CP 443-5 Basic |
Transfer rate | |
Transfer rate | |
● at the 1st interface acc. to PROFIBUS
|
9.6 kbit/s … 12 Mbit/s |
Interfaces | |
Number of interfaces acc. to Industrial Ethernet | 0 |
Number of electrical connections | |
● at the 1st interface acc. to PROFIBUS
|
1 |
Type of electrical connection | |
● at the 1st interface acc. to PROFIBUS
|
9-pin Sub-D socket (RS485) |
Supply voltage, current consumption, power loss | |
Type of voltage of the supply voltage | DC |
Supply voltage 1 from backplane bus | 5 V |
Supply voltage | 5 V |
Relative symmetrical tolerance at DC | |
● at 5 V
|
5 % |
Consumed current | |
● from backplane bus at DC at 5 V typical
|
1 A |
● from external supply voltage at DC at 24 V typical
|
1.2 A |
Power loss [W] | 5 W |
Ambient conditions | |
Ambient temperature | |
● during operation
|
0 … 60 °C |
● during storage
|
-40 … +70 °C |
● during transport
|
-40 … +70 °C |
Relative humidity | |
● at 25 °C without condensation during operation maximum
|
95 % |
Protection class IP | IP20 |
Design, dimensions and weights | |
Module format | Compact module S7-400 single width |
Width | 25 mm |
Height | 290 mm |
Depth | 210 mm |
Net weight | 0.65 kg |
Product features, product functions, product components general | |
Number of units | |
● per CPU maximum
|
14 |
● Note
|
depending on CPU type |
Performance data open communication | |
Number of possible connections for open communication by means of SEND/RECEIVE blocks maximum | 32 |
Amount of data | |
● as user data per connection for open communication by means of SEND/RECEIVE blocks maximum
|
240 byte |
Performance data FMS functions | |
Number of possible connections for FMS connection maximum | 48 |
Amount of data of the variables | |
● for READ job maximum
|
237 byte |
● for WRITE job maximum
|
233 byte |
Number of variables | |
● Configurable from server to FMS partner
|
512 |
● Loadable from server to FMS partner
|
2 640 |
Performance data S7 communication | |
Number of possible connections for S7 communication | |
● maximum
|
48 |
Performance data multi-protocol mode | |
Number of possible connections of which 2 reserved for PG/OP communication with multi-protocol mode maximum | 59 |
Product functions management, configuration, engineering | |
Configuration software | |
● required
|
STEP 7 V5.2 SP1 or higher and NCM S7 for PROFIBUS |
