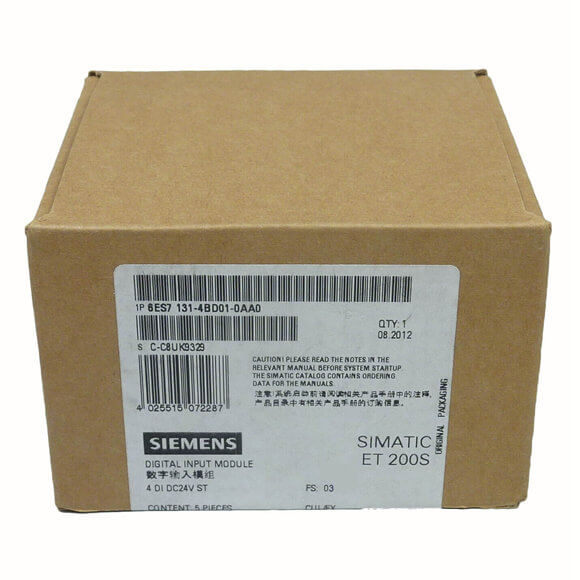

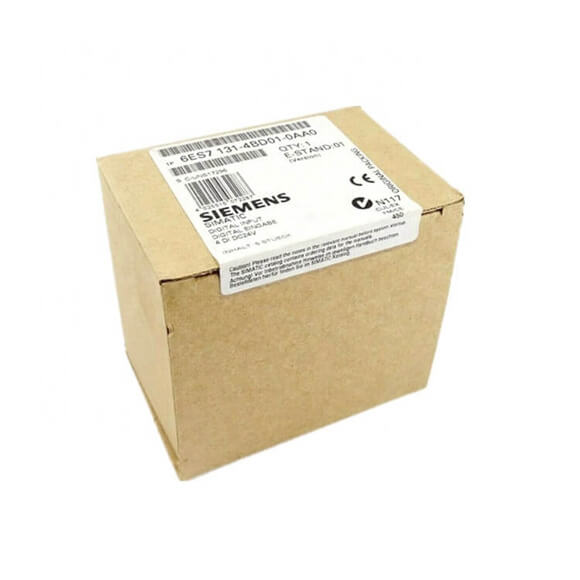

Siemens PLCs SIMATIC DP, 5 electronic modules for ET 200S 6ES7131-4BD01-0AA0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SIMATIC DP, 5 electronic modules for ET 200S 6ES7131-4BD01-0AA0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7131-4BB01-0AA0 6ES7131-4BB01-0AB0 6ES7131-4BD01-0AA0 6ES7131-4BD01-0AB0 6ES7131-4BF00-0AA0
ET200S, El-Mod., 2DI ST, DC 24V, 5pcs. ET200S, El-Mod., 2DI HF, DC 24V, 5pcs. ET200S, El-Mod., 4DI ST., DC 24V, 5pcs. ET200S, El-Mod., 4DI HF, DC 24V, 5PC. ET200S, ELEcTRONIc Module, 8DI DC 24V
Supply voltage
Rated value (DC)


● 24 V DC



Yes; From power module Yes; From power module Yes; From power module Yes; From power module Yes
Reverse polarity protection Yes Yes Yes Yes Yes
Input current
from supply voltage L+, max. Dependent on encoder Dependent on encoder Dependent on encoder Dependent on encoder Dependent on encoder
from backplane bus 3.3 V DC, max. 10 mA 10 mA 10 mA 10 mA 10 mA
Encoder supply
Number of outputs 0; no encoder supply
Type of output voltage min. L+ (-0.5 V), under load min. L+ (-0.5 V), under load min. L+ (-0.5 V), under load min. L+ (-0.5 V), under load
Short-circuit protection Yes; Electronic Yes; Electronic
Output current


● Rated value



500 mA 500 mA 500 mA 500 mA


● permissible range, lower limit



0 mA 0 mA 0 mA 0 mA


● permissible range, upper limit



500 mA 500 mA 500 mA 500 mA
Power loss
Power loss, typ. 0.4 W 0.4 W 0.7 W 0.7 W 1.2 W
Address area
Address space per module


● Address space per module, max.



1 byte 1 byte 1 byte 1 byte 1 byte


● with packing



2 bit 2 bit 4 bit 4 bit
Digital inputs
Number of digital inputs 2 2 4 4 8
Input characteristic curve in accordance with IEC 61131, type 1 Yes Yes Yes Yes Yes; 2-wire sensors connectable
Input voltage


● Type of input voltage



DC DC DC DC DC


● Rated value (DC)



24 V 24 V 24 V 24 V 24 V


● for signal “0”



-30 to +5 V -30 to +5 V -30 to +5 V -30 to +5 V -30 to +5 V


● for signal “1”



+15 to +30 V +11 to +30V +15 to +30 V +11 to +30V +15 to +30 V
Input current


● for signal “1”, typ.



7 mA; at 24 V 8 mA 7 mA; at 24 V 8 mA 5 mA
Input delay (for rated value of input voltage)
for standard inputs


— parameterizable



No Yes; 0.1 / 0.5 / 3 / 15 ms No Yes; 0.1 / 0.5 / 3 / 15 ms No


— at “0” to “1”, min.



2 ms; typically 3 ms 0.05 / 0.4 / 2.7 / 14.85 2 ms; typically 3 ms 0.05 / 0.4 / 2.7 / 14.85 2 ms


— at “0” to “1”, max.



4.5 ms 0,15 / 0,6 / 3,3 / 15,15 4.5 ms 0,15 / 0,6 / 3,3 / 15,15 4.5 ms


— at “1” to “0”, min.



2 ms; typically 3 ms 0.05 / 0.4 / 2.7 / 14.85 2 ms; typically 3 ms 0.05 / 0.4 / 2.7 / 14.85 2 ms


— at “1” to “0”, max.



4.5 ms 0,15 / 0,6 / 3,3 / 15,15 4.5 ms 0,15 / 0,6 / 3,3 / 15,15 4.5 ms
Cable length


● shielded, max.



1 000 m 1 000 m 1 000 m 1 000 m 1 000 m


● unshielded, max.



600 m 600 m 600 m 600 m 600 m
Encoder
Connectable encoders


● 2-wire sensor



Yes Yes Yes Yes Yes


— permissible quiescent current (2-wire sensor), max.



1.5 mA 1.5 mA 1.5 mA 1.5 mA 1.5 mA
Interrupts/diagnostics/status information
Diagnostics function No Yes No Yes No
Alarms


● Hardware interrupt



Yes; Parameterizable
Diagnoses


● Short-circuit



Yes; Short-circuit of outputs to ground; module by module Yes; Short-circuit of outputs to ground; module by module
Diagnostics indication LED


● Group error SF (red)



No Yes No Yes


● Status indicator digital input (green)



Yes; per channel Yes; per channel Yes; per channel Yes; per channel Yes
Parameter
Remark 1 byte 3 byte 1 byte 3 byte 3-byte parameter (not accessible for the user)
Diagnostics short-circuit Disable / enable Disable / enable
Potential separation
Potential separation digital inputs


● between the channels



No No No No No


● between the channels and backplane bus



Yes Yes Yes Yes Yes
Isolation
Isolation tested with 500 V DC 500 V DC 500 V DC 500 V DC 500 V DC
Dimensions
Width 15 mm 15 mm 15 mm 15 mm 15 mm
Height 81 mm 81 mm 81 mm 81 mm 81 mm
Depth 52 mm 52 mm 52 mm 52 mm 52 mm
Weights
Weight, approx. 35 g 35 g 35 g 35 g 35 g
