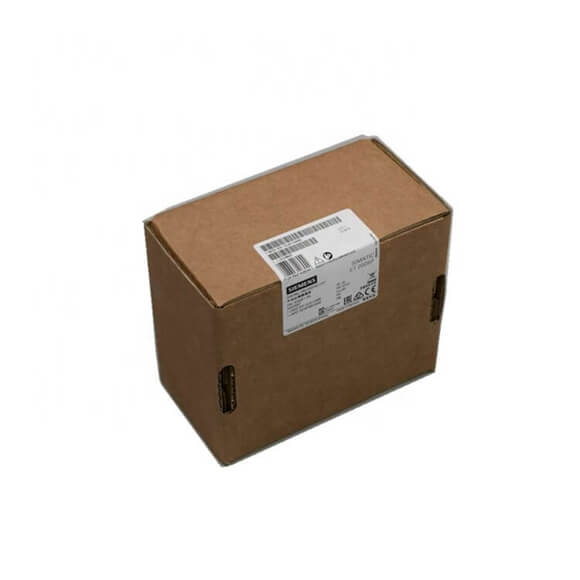

| Article number | 6ES7510-1DJ01-0AB0 |
| CPU 1510SP-1 PN, 100KB Prog./750KB Data | |
| General information | |
| Product type designation | CPU 1510SP-1 PN |
| HW functional status | FS05 |
| Firmware version | V2.8 |
| Product function | |
|
● I&M data
|
Yes; I&M0 to I&M3 |
|
● Module swapping during operation (hot swapping)
|
Yes; Multi-hot swapping |
|
● Isochronous mode
|
Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs |
| Engineering with | |
|
● STEP 7 TIA Portal configurable/integrated from version
|
V16 (FW V2.8) / V13 SP1 Update 4 (FW V1.8) or higher |
| Configuration control | |
| via dataset | Yes |
| Control elements | |
| Mode selector switch | 1 |
| Supply voltage | |
| Type of supply voltage | 24 V DC |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering | |
|
● Mains/voltage failure stored energy time
|
5 ms |
| Input current | |
| Current consumption (rated value) | 0.6 A |
| Current consumption, max. | 0.9 A |
| Inrush current, max. | 4.7 A; Rated value |
| I²t | 0.14 A²·s |
| Power | |
| Infeed power to the backplane bus | 8.75 W |
| Power loss | |
| Power loss, typ. | 5.6 W |
| Memory | |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory | |
|
● integrated (for program)
|
100 kbyte |
|
● integrated (for data)
|
750 kbyte |
| Load memory | |
|
● Plug-in (SIMATIC Memory Card), max.
|
32 Gbyte |
| Backup | |
|
● maintenance-free
|
Yes |
| CPU processing times | |
| for bit operations, typ. | 72 ns |
| for word operations, typ. | 86 ns |
| for fixed point arithmetic, typ. | 115 ns |
| for floating point arithmetic, typ. | 461 ns |
| CPU-blocks | |
| Number of elements (total) | 2 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB | |
|
● Number range
|
1 … 60 999; subdivided into: number range that can be used by the user: 1 … 59 999, and number range of DBs created via SFC 86: 60 000 … 60 999 |
|
● Size, max.
|
750 kbyte; For DBs with absolute addressing, the max. size is 64 KB |
