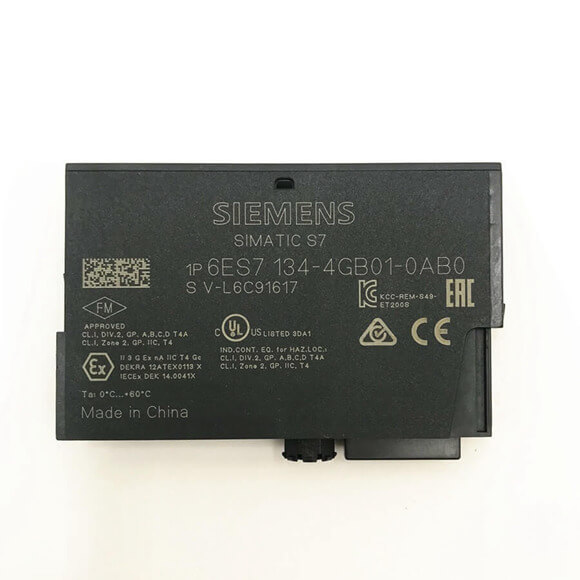

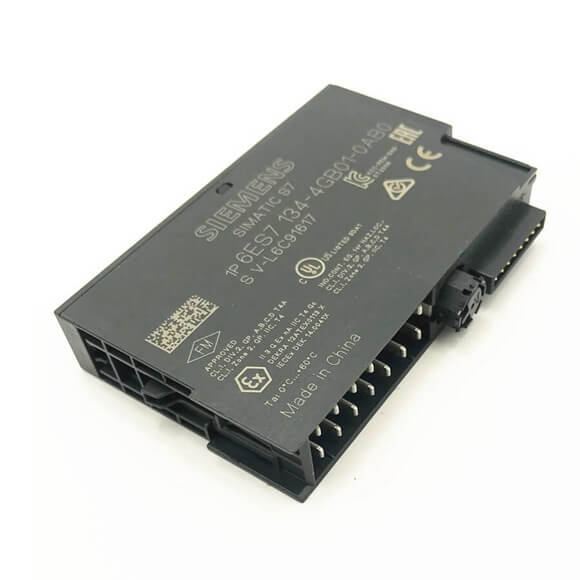

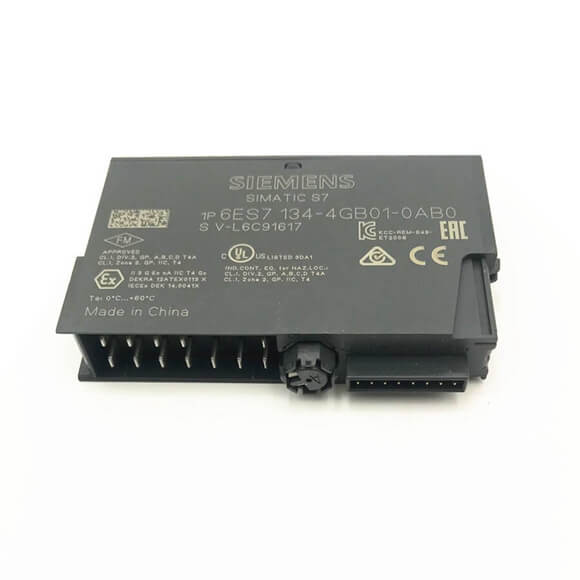

| Article number | 6ES7134-4FB01-0AB0 | 6ES7134-4LB02-0AB0 | 6ES7134-4GB01-0AB0 | 6ES7134-4GB52-0AB0 |
| ET200S, El-Mod., 2AI Std U, +/-10V,1-5V | ET200S, El-Mod., 2AI U HF, +/-10V, 1..5V | ET200S, El-Mod., 2AI Std I-2DMU, 0-20mA, | ET200S, El-Mod., 2AI HS I-2DMU, 0-20mA, | |
| Supply voltage | ||||
| Load voltage L+ | ||||
|
● Rated value (DC)
|
24 V; From power module | 24 V | 24 V; From power module | 24 V |
|
● Short-circuit protection
|
Yes | |||
|
● Reverse polarity protection
|
Yes | Yes | Yes; Destruction limit 35 mA per channel | Yes |
| Input current | ||||
| from load voltage L+ (without load), max. | 30 mA | 55 mA | 80 mA | 225 mA |
| from backplane bus 3.3 V DC, max. | 10 mA | 10 mA | 10 mA | 10 mA |
| Output voltage | ||||
| Power supply to the transmitters | ||||
|
● present
|
No | Yes | ||
| Power loss | ||||
| Power loss, typ. | 0.6 W | 0.85 W | 0.6 W | 2.5 W |
| Address area | ||||
| Address space per module | ||||
|
● Address space per module, max.
|
4 byte | 4 byte | 4 byte | 4 byte |
| Analog inputs | ||||
| Number of analog inputs | 2 | 2 | 2 | 2 |
| permissible input voltage for voltage input (destruction limit), max. | 35 V; 35 V continuous; 75 V for max. 1 ms (mark to space ratio 1:20) | 35 V; 35 V continuous; 75 V for max. 1 ms | ||
| permissible input current for current input (destruction limit), max. | 40 mA | |||
| Cycle time (all channels) max. | Number of active channels per module x basic conversion time | 0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per channel with noise suppression | Number of active channels per module x basic conversion time | 0.25 ms |
| Input ranges (rated values), voltages | ||||
|
● 1 V to 5 V
|
Yes | Yes | ||
|
— Input resistance (1 V to 5 V)
|
800 kΩ | |||
|
● -10 V to +10 V
|
Yes | Yes | ||
|
— Input resistance (-10 V to +10 V)
|
800 kΩ | |||
|
● -5 V to +5 V
|
Yes | Yes | ||
|
— Input resistance (-5 V to +5 V)
|
800 kΩ | |||
| Input ranges (rated values), currents | ||||
|
● 0 to 20 mA
|
Yes | |||
|
— Input resistance (0 to 20 mA)
|
106 Ω | |||
|
● 4 mA to 20 mA
|
Yes; on 50 ohms | Yes | ||
| Cable length | ||||
|
● shielded, max.
|
200 m | 200 m | 200 m | 200 m |
