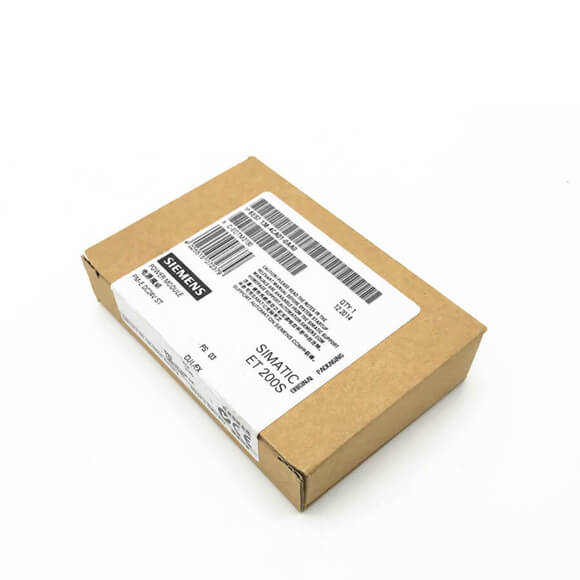

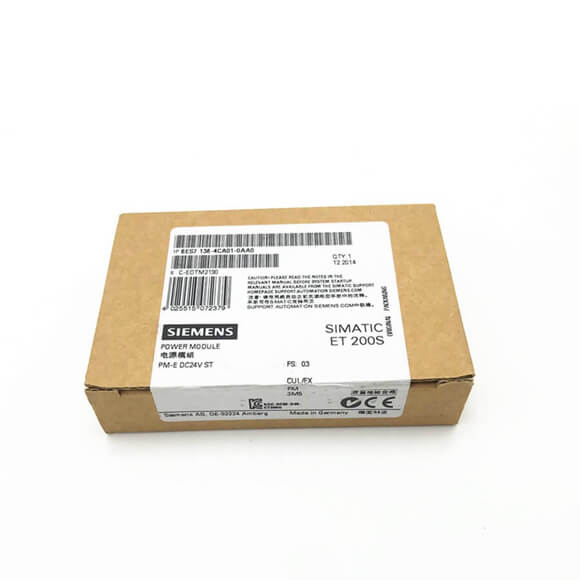

Siemens PLCs SIMATIC DP, PM-E power modules for ET 200S 6ES7138-4CA01-0AA0

Siemens PLCs SIMATIC DP, PM-E power modules for ET 200S 6ES7138-4CA01-0AA0
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7138-4CA01-0AA0	6ES7138-4CB11-0AB0
	ET200S, Power Module PM-E, 24V DC	ET200S, Powermod.PM-E;DC24-48V/AC24-230V
Supply voltage
Load voltage L+
● Rated value (DC)	24 V
● Short-circuit protection	No; external (e.g. automatic circuit breaker), tripping characteristic C
● Reverse polarity protection	Yes
Input current
from load voltage L+ (without load), max.	4 mA
Current carrying capacity
up to 60 °C, max.	10 A
Power loss
Power loss, typ.	0.1 W
Power loss, max.		5 W
Interrupts/diagnostics/status information
Diagnoses
● missing load voltage	Yes
Diagnostics indication LED
● Rated load voltage PWR (green)	Yes
● Group error SF (red)	Yes
Parameter
Remark	3 byte
missing load voltage	Disable / enable
Potential separation
primary/secondary	Yes; between rated load voltage and backplane bus, between power modules
Isolation
Isolation tested with	500 V DC
Dimensions
Width	15 mm	15 mm
Height	81 mm	81 mm
Depth	52 mm	52 mm
Weights
Weight, approx.	35 g
