| Article number |

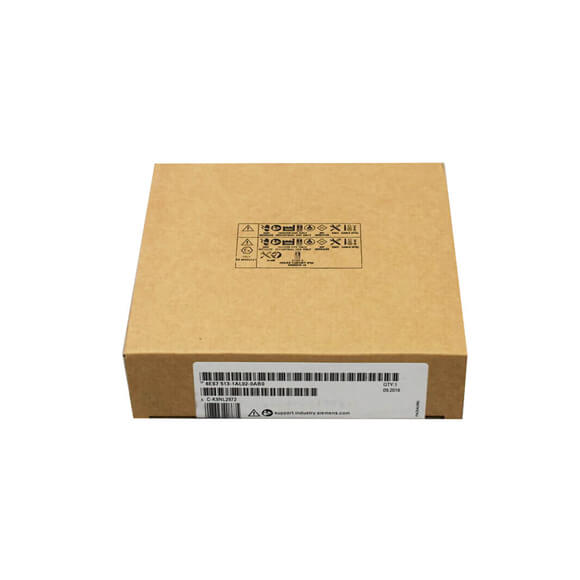

6ES7513-1AL02-0AB0 |
|
CPU 1513-1 PN, 300KB Prog., 1,5MB Data |
| General information |
|
| Product type designation |
CPU 1513-1 PN |
| HW functional status |
FS03 |
| Firmware version |
V2.8 |
| Product function |
|
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central) |
| Engineering with |
|
| ● STEP 7 TIA Portal configurable/integrated from version |
V16 (FW V2.8) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7513-1AL01-0AB0 |
| Configuration control |
|
| via dataset |
Yes |
| Display |
|
| Screen diagonal [cm] |
3.45 cm |
| Control elements |
|
| Number of keys |
8 |
| Mode buttons |
2 |
| Supply voltage |
|
| Type of supply voltage |
24 V DC |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Mains buffering |
|
| ● Mains/voltage failure stored energy time |
5 ms |
| ● Repeat rate, min. |
1/s |
| Input current |
|
| Current consumption (rated value) |
0.7 A |
| Current consumption, max. |
0.95 A |
| Inrush current, max. |
1.9 A; Rated value |
| I²t |
0.02 A²·s |
| Power |
|
| Infeed power to the backplane bus |
10 W |
| Power consumption from the backplane bus (balanced) |
5.5 W |
| Power loss |
|
| Power loss, typ. |
5.7 W |
| Memory |
|
| Number of slots for SIMATIC memory card |
1 |
| SIMATIC memory card required |
Yes |
| Work memory |
|
| ● integrated (for program) |
300 kbyte |
| ● integrated (for data) |
1.5 Mbyte |
| Load memory |
|
| ● Plug-in (SIMATIC Memory Card), max. |
32 Gbyte |
| Backup |
|
| ● maintenance-free |
Yes |
| CPU processing times |
|
| for bit operations, typ. |
40 ns |
| for word operations, typ. |
48 ns |
| for fixed point arithmetic, typ. |
64 ns |
| for floating point arithmetic, typ. |
256 ns |
| CPU-blocks |
|
| Number of elements (total) |
2 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
|
| ● Number range |
1 … 60 999; subdivided into: number range that can be used by the user: 1 … 59 999, and number range of DBs created via SFC 86: 60 000 … 60 999 |
| ● Size, max. |
1.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
|
| ● Number range |
0 … 65 535 |
| ● Size, max. |
300 kbyte |
| FC |
|
| ● Number range |
0 … 65 535 |
| ● Size, max. |
300 kbyte |
