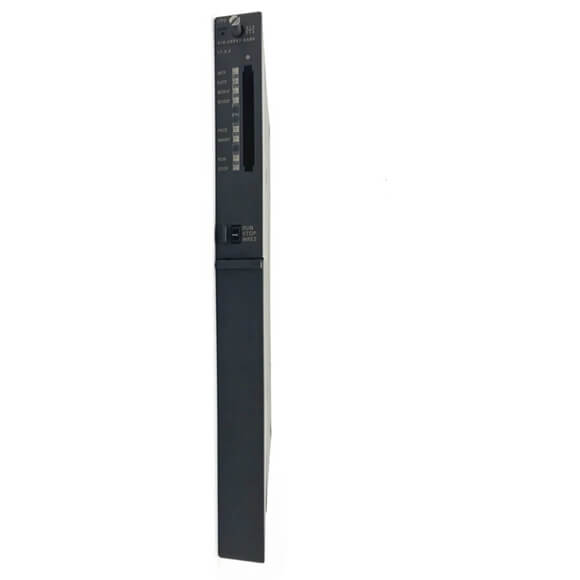

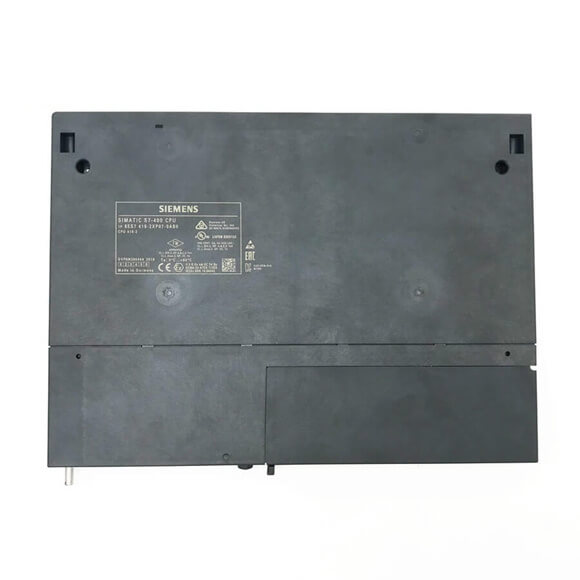

| Article number | 6ES7416-2XP07-0AB0 | 6ES7416-3XS07-0AB0 | 6ES7416-3ES07-0AB0 |
| Article number | CPU 416-2, MPI, PROFIBUS, 8 MB | CPU 416-3, 16 MB, 3 INTERFACES | CPU416-3 PN/DP, 16 MB, 3 INTERFACES |
| General information | |||
| Product type designation | CPU 416-2 | CPU 416-3 | CPU 416-3 PN/DP |
| HW functional status | 01 | 01 | 01 |
| Firmware version | V7.0 | V7.0 | V7.0 |
| Product function | |||
|
● Isochronous mode
|
Yes; For PROFIBUS only | Yes; For PROFIBUS only | Yes; Via PROFIBUS DP or PROFINET interface |
| Engineering with | |||
|
● Programming package
|
STEP 7 V5.4 or higher with HSP 261 | STEP 7 V5.4 or higher with HSP 261 | STEP 7 V5.5 or higher with HSP 262 |
| CiR – Configuration in RUN | |||
| CiR synchronization time, basic load | 100 ms | 100 ms | 100 ms |
| CiR synchronization time, time per I/O byte | 10 µs | 10 µs | 10 µs |
| Supply voltage | |||
| Rated value (DC) | |||
|
● 24 V DC
|
No; Power supply via system power supply | No; Power supply via system power supply | No; Power supply via system power supply |
| Input current | |||
| from backplane bus 5 V DC, typ. | 0.9 A | 1.1 A | 1.3 A |
| from backplane bus 5 V DC, max. | 1.1 A | 1.3 A | 1.6 A |
| from backplane bus 24 V DC, max. | 300 mA; 150 mA per DP interface | 450 mA; 150 mA per DP interface | 300 mA; 150 mA per DP interface |
| from interface 5 V DC, max. | 90 mA; At each DP interface | 90 mA; At each DP interface | 90 mA; At each DP interface |
| Power loss | |||
| Power loss, typ. | 4.5 W | 5.5 W | 6.5 W |
| Power loss, max. | 5.5 W | 6.5 W | 8 W |
| Memory | |||
| Type of memory | RAM | RAM | RAM |
| Work memory | |||
|
● integrated
|
8 Mbyte | 16 Mbyte | 16 Mbyte |
|
● integrated (for program)
|
4 Mbyte | 8 Mbyte | 8 Mbyte |
|
● integrated (for data)
|
4 Mbyte | 8 Mbyte | 8 Mbyte |
|
● expandable
|
No | No | No |
| Load memory | |||
|
● expandable FEPROM
|
Yes; with Memory Card (FLASH) | Yes; with Memory Card (FLASH) | Yes; with Memory Card (FLASH) |
|
● expandable FEPROM, max.
|
64 Mbyte | 64 Mbyte | 64 Mbyte |
|
● integrated RAM, max.
|
1 Mbyte | 1 Mbyte | 1 Mbyte |
|
● expandable RAM
|
Yes; with Memory Card (RAM) | Yes; with Memory Card (RAM) | Yes; with Memory Card (RAM) |
|
● expandable RAM, max.
|
64 Mbyte | 64 Mbyte | 64 Mbyte |
| Backup | |||
|
● present
|
Yes | Yes | Yes |
|
● with battery
|
Yes; all data | Yes; all data | Yes; all data |
|
● without battery
|
No | No | No |
| Battery | |||
| Backup battery | |||
|
● Backup current, typ.
|
180 µA; up to 40 °C | 180 µA; up to 40 °C | 180 µA; up to 40 °C |
|
● Backup current, max.
|
850 µA | 850 µA | 850 µA |
|
● Backup time, max.
|
Dealt with in the module data manual with the secondary conditions and the factors of influence | Dealt with in the module data manual with the secondary conditions and the factors of influence | Dealt with in the module data manual with the secondary conditions and the factors of influence |
|
● Feeding of external backup voltage to CPU
|
5 V DC to 15 V DC | 5 V DC to 15 V DC | 5 V DC to 15 V DC |
| CPU processing times | |||
| for bit operations, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
| for word operations, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
| for fixed point arithmetic, typ. | 12.5 ns | 12.5 ns | 12.5 ns |
| for floating point arithmetic, typ. | 25 ns | 25 ns | 25 ns |
| CPU-blocks | |||
| DB | |||
|
● Number, max.
|
10 000; Number range: 1 to 16000 | 10 000; Number range: 1 to 16000 | 10 000; Number range: 1 to 16000 |
|
● Size, max.
|
64 kbyte | 64 kbyte | 64 kbyte |
| FB | |||
|
● Number, max.
|
5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 |
|
● Size, max.
|
64 kbyte | 64 kbyte | 64 kbyte |
| FC | |||
|
● Number, max.
|
5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 | 5 000; Number range: 0 to 7999 |
|
● Size, max.
|
64 kbyte | 64 kbyte | 64 kbyte |
