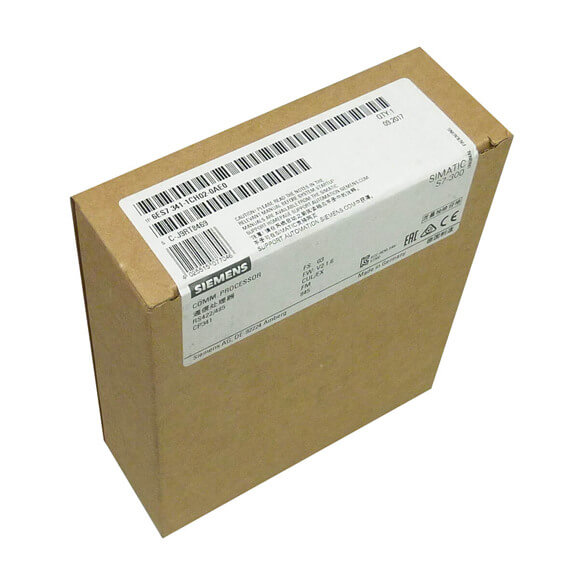

Siemens PLCs SIMATIC S7-300 CP 341 Communications 6ES7341-1CH02-0AE0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SIMATIC S7-300 CP 341 Communications 6ES7341-1CH02-0AE0
  • Siemens PLC Controller Module LOGO Series
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7341-1AH02-0AE0 6ES7341-1BH02-0AE0 6ES7341-1CH02-0AE0
CP 341 RS232C (V.24) CP341 20mA-Interface (TTY) CP341 RS422/485-Interface
General information
Product type designation CP 341 CP 341 CP 341
Supply voltage
Rated value (DC)


● 24 V DC



Yes Yes Yes
Input current
from supply voltage L+, max. 100 mA 100 mA 100 mA
from backplane bus 5 V DC, max. 70 mA 70 mA 70 mA
Power loss
Power loss, typ. 1.6 W 1.6 W 1.6 W
Power loss, max. 2.4 W 2.4 W 2.4 W
Interfaces
Interfaces/bus type RS 232C (V.24) 20 mA (TTY) RS 422 / 485 (X.27)
Number of interfaces 1; Isolated 1; Isolated 1; Isolated
Transmission rate, min. 0.3 kbit/s 0.3 kbit/s 0.3 kbit/s
Transmission rate, max. 115.2 kbit/s 19.2 kbit/s 115.2 kbit/s
Point-to-point connection


● Cable length, max.



15 m 1 000 m 1 200 m


● supported printers



Serial printers Serial printers Serial printers


● Connector type



9-pin sub D connector 9-pin sub D socket 15-pin sub D socket
Integrated protocol driver


— 3964 (R)



Yes Yes Yes; not with RS 485


— ASCII



Yes Yes Yes


— RK 512



Yes Yes Yes; not with RS 485
Telegram length, max.


— 3964 (R)



4 096 byte 4 096 byte 4 096 byte


— ASCII



4 096 byte 4 096 byte 4 096 byte


— RK 512



4 096 byte 4 096 byte 4 096 byte
Transmission rate, 20 mA (TTY)


— with 3964 (R) protocol, max.



19.2 kbit/s


— with ASCII protocol, max.



19.2 kbit/s


— with printer driver, max.



19.2 kbit/s


— with RK 512 protocol, max.



19.2 kbit/s
Transmission rate, RS 422/485


— with 3964 (R) protocol, max.



115.2 kbit/s


— with ASCII protocol, max.



115.2 kbit/s


— with printer driver, max.



115.2 kbit/s


— with RK 512 protocol, max.



115.2 kbit/s
Transmission speed, RS 232


— with 3964 (R) protocol, max.



115.2 kbit/s


— with ASCII protocol, max.



115.2 kbit/s


— with printer driver, max.



115.2 kbit/s


— with RK 512 protocol, max.



115.2 kbit/s
Ambient conditions
Ambient temperature during operation


● min.



0 °C 0 °C 0 °C


● max.



60 °C 60 °C 60 °C
Ambient temperature during storage/transportation


● min.



-40 °C -40 °C -40 °C


● max.



70 °C 70 °C 70 °C
Software
Block


● FB length in RAM, max.



6 100 byte; Data communication, sending and receiving 6 100 byte; Data communication, sending and receiving 6 100 byte; Data communication, sending and receiving
Connection method
Design of electrical connection for supply voltage 3 screw-type terminals: L+, M, GND 3 screw-type terminals: L+, M, GND 3 screw-type terminals: L+, M, GND
Dimensions
Width 40 mm 40 mm 40 mm
Height 125 mm 125 mm 125 mm
Depth 120 mm 120 mm 120 mm
Weights
Weight, approx. 300 g 300 g 300 g
