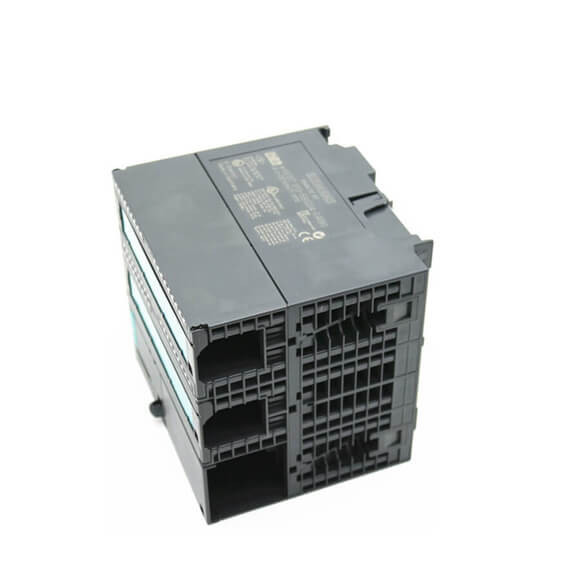

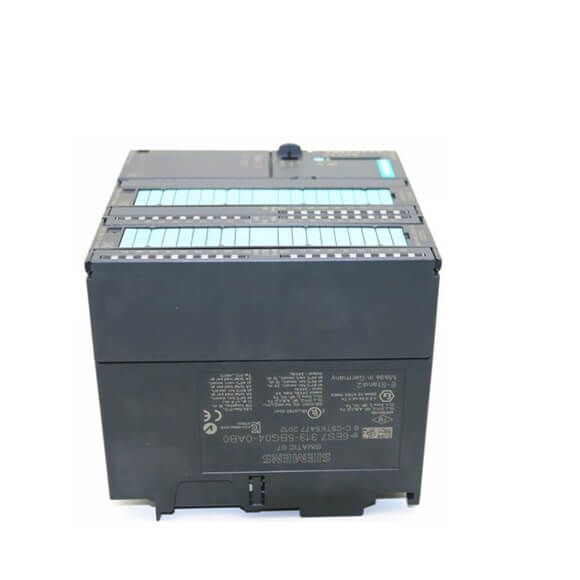

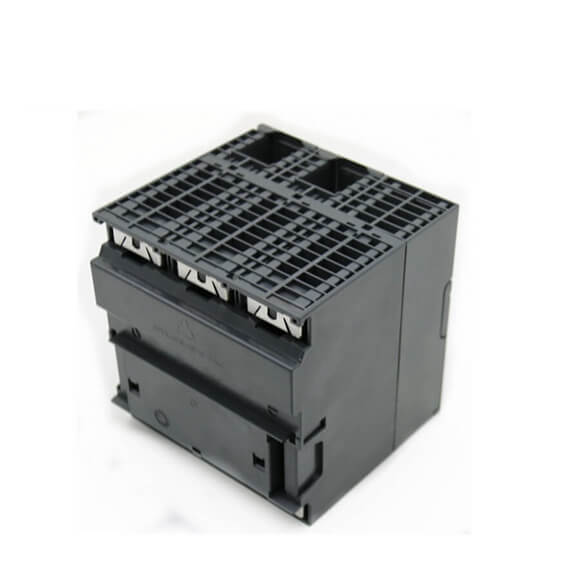

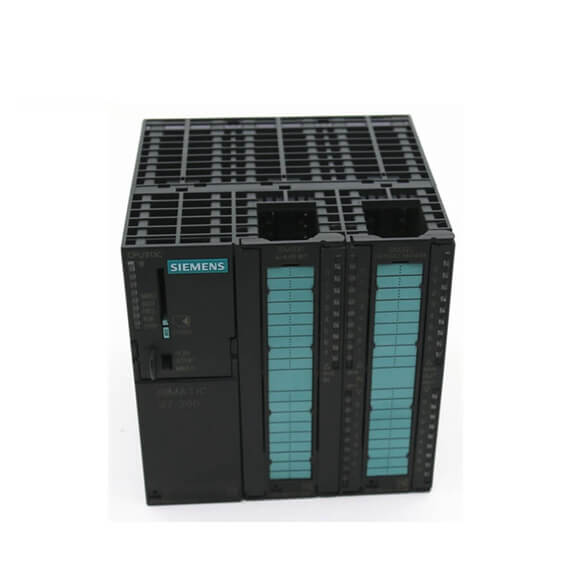

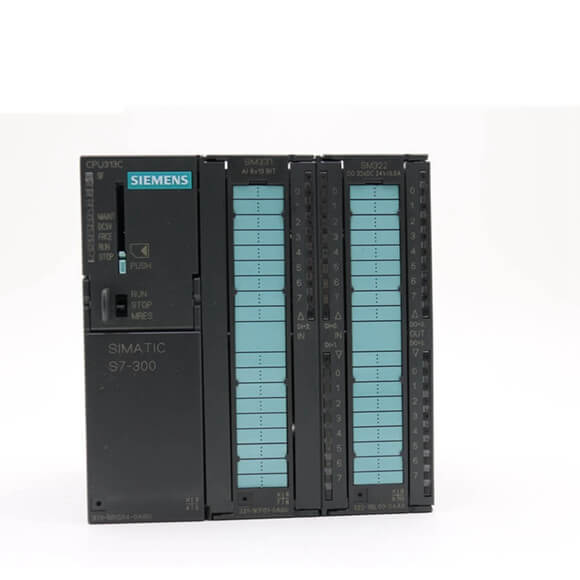

Siemens PLCs SIMATIC S7-300 CPU 313C Compact CPU with MPI 6ES7313-5BG04-0AB0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SIMATIC S7-300 CPU 313C Compact CPU with MPI 6ES7313-5BG04-0AB0
  • Siemens PLC Controller Module LOGO Series
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7313-5BG04-0AB0
CPU313C, 24DI/16DO/5AI/2AO, 128 KB
General information
HW functional status 01
Firmware version V3.3
Engineering with


● Programming package



STEP 7 V5.5 + SP1 or higher or STEP 7 V5.3 + SP2 or higher with HSP 203
Supply voltage
Rated value (DC)


● 24 V DC



Yes
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
external protection for power supply lines (recommendation) Miniature circuit breaker, type C; min. 2 A; miniature circuit breaker type B, min. 4 A
Mains buffering


● Mains/voltage failure stored energy time



5 ms


● Repeat rate, min.



1 s
Load voltage L+
Digital inputs


— Rated value (DC)



24 V


— Reverse polarity protection



Yes
Digital outputs


— Rated value (DC)



24 V


— Reverse polarity protection



No
Input current
Current consumption (rated value) 650 mA
Current consumption (in no-load operation), typ. 150 mA
Inrush current, typ. 5 A
I²t 0.7 A²·s
Digital inputs


● from load voltage L+ (without load), max.



80 mA
Digital outputs


● from load voltage L+, max.



50 mA
Power loss
Power loss, typ. 12 W
Memory
Work memory


● integrated



128 kbyte


● expandable



No


● Size of retentive memory for retentive data blocks



64 kbyte
Load memory


● Plug-in (MMC)



Yes


● Plug-in (MMC), max.



8 Mbyte


● Data management on MMC (after last programming), min.



10 y
Backup


● present



Yes; Guaranteed by MMC (maintenance-free)


● without battery



Yes; Program and data
CPU processing times
for bit operations, typ. 0.07 µs
for word operations, typ. 0.15 µs
for fixed point arithmetic, typ. 0.2 µs
for floating point arithmetic, typ. 0.72 µs
CPU-blocks
Number of blocks (total) 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB


● Number, max.



1 024; Number range: 1 to 16000


● Size, max.



64 kbyte
FB


● Number, max.



1 024; Number range: 0 to 7999


● Size, max.



64 kbyte
FC


● Number, max.



1 024; Number range: 0 to 7999


● Size, max.



64 kbyte
OB


● Description



see instruction list


● Size, max.



64 kbyte


● Number of free cycle OBs



1; OB 1


● Number of time alarm OBs



1; OB 10


● Number of delay alarm OBs



2; OB 20, 21


● Number of cyclic interrupt OBs



4; OB 32, 33, 34, 35


● Number of process alarm OBs



1; OB 40


● Number of startup OBs



1; OB 100


● Number of asynchronous error OBs



4; OB 80, 82, 85, 87


● Number of synchronous error OBs



2; OB 121, 122
