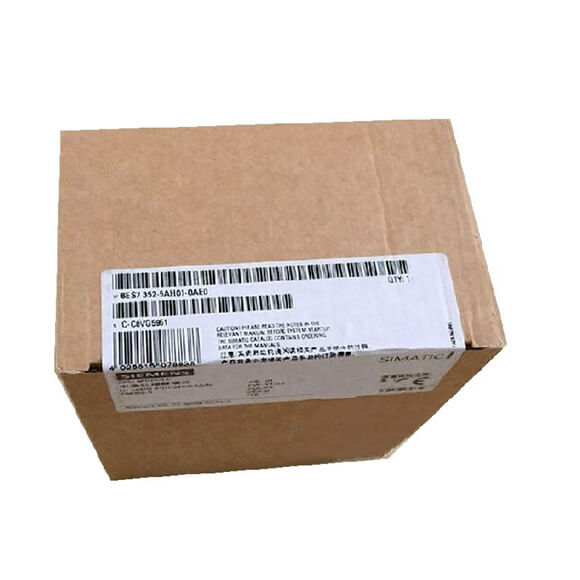

Article number | 6ES7352-5AH01-0AE0 | 6ES7352-5AH11-0AE0 |
FM 352-5, Boolean Processor 12DE/8DA | FM 352-5 PNP, Boolean Processor 12DI/8DO | |
Supply voltage | ||
Load voltage L+ | ||
● Rated value (DC)
|
24 V | 24 V |
● permissible range, lower limit (DC)
|
20.4 V | 20.4 V |
● permissible range, upper limit (DC)
|
28.8 V | 28.8 V |
● Reverse polarity protection
|
Yes | Yes |
Input current | ||
from load voltage1L+, max. | 150 mA; typ. 60 mA | 150 mA; typ. 60 mA |
from load voltage 2L+ (without load), max. | 200 mA; typ. 60 mA, DI/DO supply | 200 mA; typ. 60 mA, DI/DO supply |
from load voltage 3L+ (with encoder), max. | 600 mA; typ. 80 mA plus encoder supply | 600 mA; typ. 80 mA plus encoder supply |
from load voltage 3L+ (without load), max. | 200 mA; typ. 80 mA | 200 mA; typ. 80 mA |
from backplane bus 5 V DC, typ. | 135 mA | 135 mA |
Encoder supply | ||
5 V encoder supply | ||
● 5 V
|
Yes | Yes |
● Short-circuit protection
|
Yes; Electronic overload protection; no protection on applying a normal or counter voltage. | Yes; Electronic overload protection; no protection on applying a normal or counter voltage. |
● Output current, max.
|
250 mA | 250 mA |
24 V encoder supply | ||
● 24 V
|
Yes | Yes |
● Short-circuit protection
|
Yes; Overvoltage and overheating protection if overloaded; diagnostics if output reaches temperature limit; no protection on applying a normal or counter voltage | Yes; Overvoltage and overheating protection if overloaded; diagnostics if output reaches temperature limit; no protection on applying a normal or counter voltage |
● Output current, max.
|
400 mA | 400 mA |
Power loss | ||
Power loss, typ. | 6.5 W | 6.5 W |
Memory | ||
Type of memory | RAM | RAM |
Memory size | 128 kbyte; required for operation, MMC | 128 kbyte; required for operation, MMC |
Digital inputs | ||
Number of digital inputs | 8; Standard and up to 12 with 24 V DC encoder inputs as digital inputs | 8; Standard and up to 12 with 24 V DC encoder inputs as digital inputs |
Input voltage | ||
● Rated value (DC)
|
24 V | 24 V |
● for signal “0”
|
-30 to +5 V | -30 to +5 V |
● for signal “1”
|
+11 to +30V | +11 to +30V |
Input current | ||
● for signal “0”, max. (permissible quiescent current)
|
1.5 mA | 1.5 mA |
● for signal “1”, typ.
|
3.8 mA | 3.8 mA |
Input delay (for rated value of input voltage) | ||
● Input frequency (with a time delay of 0.1 ms), max.
|
200 kHz | 200 kHz |
● programmable digital filter delay
|
None, 5 µs, 10 µs, 15 µs, 20 µs, 50 µs, 1.6 ms | None, 5 µs, 10 µs, 15 µs, 20 µs, 50 µs, 1.6 ms |
● Minimum pulse width for program reactions
|
1 µs, 5 µs, 10 µs, 15 µs, 20 µs, 50 µs, 1,6 ms | 1 µs, 5 µs, 10 µs, 15 µs, 20 µs, 50 µs, 1,6 ms |
for standard inputs | ||
— at “0” to “1”, max.
|
3 µs; typ. 1.5 µs | 3 µs; typ. 1.5 µs |
Cable length | ||
● shielded, max.
|
600 m | 600 m |
● unshielded, max.
|
100 m; Shielded cable recommended if filtering delay is set to less than 1.6 ms | 100 m; Shielded cable recommended if filtering delay is set to less than 1.6 ms |
Digital outputs | ||
Number of digital outputs | 8 | 8 |
Current-sinking | Yes | No |
Current-sourcing | No | Yes |
Short-circuit protection | Yes; Overvoltage protection, thermal protection | Yes; Overvoltage protection, thermal protection |
● Response threshold, typ.
|
1.7 to 3.5 A | 1.7 to 3.5 A |
Limitation of inductive shutdown voltage to | 2M -45 V typ., (-40 V to -55 V); comment: no protection against inductive kickback >55 mJ | 2M -45 V typ., (-40 V to -55 V); comment: no protection against inductive kickback >55 mJ |
