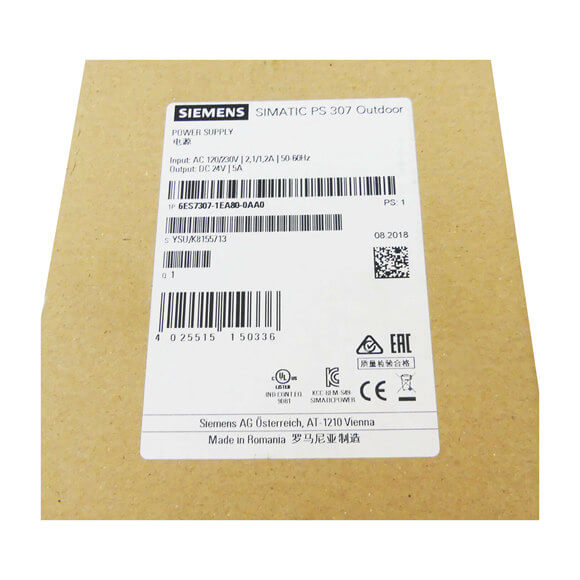

Siemens PLCs SIMATIC S7-300 Regulated power supply PS307 6ES7307-1EA80-0AA0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SIMATIC S7-300 Regulated power supply PS307 6ES7307-1EA80-0AA0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7307-1BA01-0AA0 6ES7305-1BA80-0AA0 6ES7307-1EA01-0AA0 6ES7307-1EA80-0AA0 6ES7307-1KA02-0AA0
Product PS 307 PS 305 Outdoor PS 307 PS 307 Outdoor PS 307
Power supply, type 24 V/2 A 24 V/2 A 24 V/5 A 24 V/5 A 24 V/10 A
Input
Input 1-phase AC DC voltage 1-phase AC 1-phase AC 1-phase AC


● Note



Automatic range selection Automatic range selection Set by means of selector switch on the device Automatic range selection
Supply voltage


● 1 at AC Rated value



120 V 120 V 120 V 120 V


● 2 at AC Rated value



230 V 230 V 230 V 230 V


● at DC



24 … 110 V
Input voltage


● 1 at AC



85 … 132 V 85 … 132 V 93 … 132 V 85 … 132 V


● 2 at AC



170 … 264 V 170 … 264 V 187 … 264 V 170 … 264 V


● at DC



16.8 … 138 V
Wide-range input No Yes No No No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms 154 V; 0.1 s 2.3 × Vin rated, 1.3 ms 2.3 × Vin rated, 1.3 ms 2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min. 20 ms; at Vin = 93/187 V 10 ms; at Vin rated 20 ms; at Vin = 93/187 V 20 ms; at Vin = 93/187 V 20 ms; at Vin = 93/187 V
Rated line frequency 1 50 Hz 50 Hz 50 Hz 50 Hz
Rated line frequency 2 60 Hz 60 Hz 60 Hz 60 Hz
Rated line range 47 … 63 Hz 47 … 63 Hz 47 … 63 Hz 47 … 63 Hz
Input current


● at rated input voltage 120 V



0.9 A 2.3 A 2.1 A 4.2 A


● at rated input voltage 230 V



0.5 A 1.2 A 1.2 A 1.9 A


● at rated input voltage 24 V



2.4 A


● at rated input voltage 110 V



0.6 A
Switch-on current limiting (+25 °C), max. 22 A 20 A 20 A 45 A 55 A
Duration of inrush current limiting at 25 °C


● maximum



3 ms 10 ms 3 ms 3 ms 3 ms
I²t, max. 1 A²·s 5 A²·s 1.2 A²·s 1.8 A²·s 3.3 A²·s
Built-in incoming fuse T 1.6 A/250 V (not accessible) T 6.3 A/250 V (not accessible) T 3,15 A/250 V (not accessible) T 3,15 A/250 V (not accessible) T 6.3 A/250 V (not accessible)
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: 3 A characteristic C Recommended miniature circuit breaker: from 10 A characteristic C, suitable for DC Recommended miniature circuit breaker: from 6 A characteristic C Recommended miniature circuit breaker: from 10 A characteristic C or from 6 A characteristic D Recommended miniature circuit breaker: from 10 A characteristic C
Output
Output Controlled, isolated DC voltage Controlled, isolated DC voltage Controlled, isolated DC voltage Controlled, isolated DC voltage Controlled, isolated DC voltage
Rated voltage Vout DC 24 V 24 V 24 V 24 V 24 V
Total tolerance, static ± 3 % 3 % 3 % 3 % 3 %
Static mains compensation, approx. 0.1 % 0.2 % 0.1 % 0.2 % 0.1 %
Static load balancing, approx. 0.2 % 0.4 % 0.5 % 0.4 % 0.5 %
Residual ripple peak-peak, max. 50 mV 150 mV 50 mV 150 mV 50 mV
Residual ripple peak-peak, typ. 5 mV 30 mV 10 mV 40 mV 15 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 150 mV 240 mV 150 mV 240 mV 150 mV
Spikes peak-peak, typ. (bandwidth: 20 MHz) 20 mV 150 mV 20 mV 90 mV 60 mV
Product function Output voltage adjustable No No No No No
Output voltage setting
Status display Green LED for 24 V OK Green LED for 24 V OK Green LED for 24 V OK Green LED for 24 V OK Green LED for 24 V OK
On/off behavior No overshoot of Vout (soft start) No overshoot of Vout (soft start) No overshoot of Vout (soft start) No overshoot of Vout (soft start) No overshoot of Vout (soft start)
Startup delay, max. 2 s 3 s 2 s 3 s 2 s
Voltage rise, typ. 10 ms 5 ms 10 ms 100 ms 10 ms
Rated current value Iout rated 2 A 2 A 5 A 5 A 10 A
Current range 0 … 2 A 0 … 3 A 0 … 5 A 0 … 5 A 0 … 10 A


● Note



3 A up to +60°C at Vin > 24 V
Supplied active power typical 48 W 48 W 120 W 120 W 240 W
Short-term overload current


● on short-circuiting during the start-up typical



9 A 9 A 20 A 20 A 38 A


● at short-circuit during operation typical



9 A 9 A 20 A 20 A 38 A
Duration of overloading capability for excess current


● on short-circuiting during the start-up



90 ms 270 ms 100 ms 180 ms 80 ms


● at short-circuit during operation



90 ms 270 ms 100 ms 80 ms 80 ms
Parallel switching for enhanced performance Yes Yes Yes No Yes
Numbers of parallel switchable units for enhanced performance 2 2
