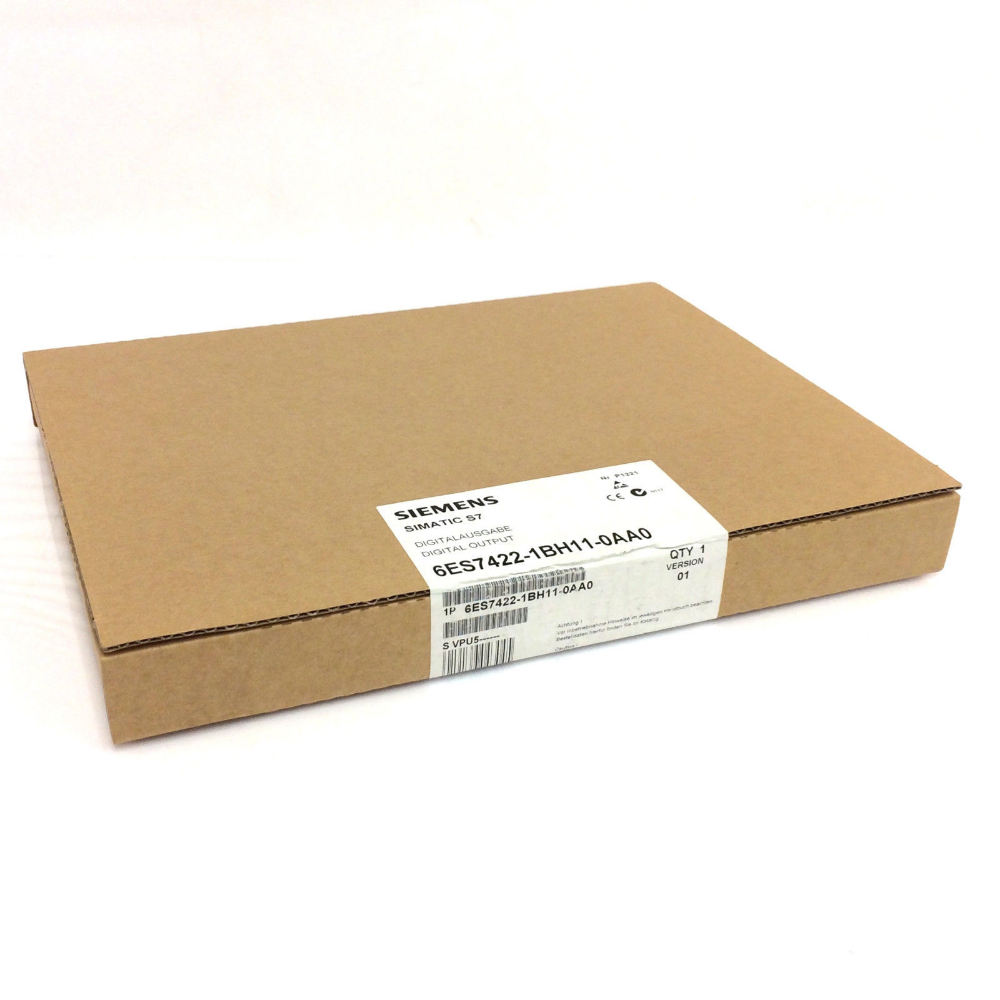

Siemens PLCs SIMATIC S7-400 digital output SM 422 6ES7422-1BH11-0AA0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SIMATIC S7-400 digital output SM 422 6ES7422-1BH11-0AA0
  • Siemens PLC Controller Module S7-400 Series
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7422-1FH00-0AA0 6ES7422-1HH00-0AA0 6ES7422-1BH11-0AA0 6ES7422-1BL00-0AA0 6ES7422-7BL00-0AB0
Article number SM422, 16DO, AC120/230V, 2A SM422, 16DO, AC5-230V, 5A RELAY SM422, 16DO, DC24V, 2A, SIMATIC S7-400, SM 422 SIMATIC S7-400, DIG.OUTPUT MOD.
Supply voltage
Load voltage L+


● Rated value (DC)



60 V 24 V 24 V 24 V


● permissible range, lower limit (DC)



1 V 20.4 V 20.4 V 20.4 V


● permissible range, upper limit (DC)



60 V 28.8 V 28.8 V 28.8 V
Load voltage L1


● Rated value (AC)



230 V; 120/230 V AC 230 V


● permissible range, lower limit (AC)



79 V 2 V


● permissible range, upper limit (AC)



264 V 264 V


● permissible frequency range, lower limit



47 Hz


● permissible frequency range, upper limit



63 Hz
Input current
from load voltage L+ (without load), max. 1.5 mA 30 mA 30 mA 120 mA
from backplane bus 5 V DC, max. 400 mA 1 A 160 mA 200 mA 200 mA
Power loss
Power loss, typ. 16 W 4.5 W 5 W 4 W 8 W
Digital outputs
Number of digital outputs 16 16; Relays 16 32 32
Short-circuit protection Yes; Fuse 8 A, 250 V; per group No Yes; Clocked electronically Yes; Clocked electronically Yes; Clocked electronically


● Response threshold, typ.



2.8 to 6 A 0.7 to 1.5 A 0.75 to 1.5 A


● required current for fuse shutdown, min.



100 A


● Response time, max.



100 ms
Limitation of inductive shutdown voltage to -30 V -27 V L+ (-45 V)
Controlling a digital input Yes; possible Yes; possible Yes; possible Yes; possible Yes; possible
Size of motor starters according to NEMA, max. Size 5 according to NEMA Size 5 according to NEMA
Spare fuses Fuse 8 A, 250 V, quick response
Zero-crossing switch No
Switching capacity of the outputs


● on lamp load, max.



50 W 60 W 10 W 5 W 5 W
Load resistance range


● lower limit



24 Ω 48 Ω 48 Ω


● upper limit



4 kΩ 4 kΩ 4 kΩ
Output voltage


● for signal “1”, min.



L1 (-18.1 V) L+ (-0.5 V) L+ (-0.3 V) L+ (-0.8 V)


● for signal “1” (at max. current), min.



L1 (-1.3 Vrms)


● for signal “1” (at min. current), min.



L1 (-18.1 Vrms)
Output current


● for signal “1” rated value



2 A 5 A 2 A 0.5 A 0.5 A


● for signal “1” permissible range, min.



10 mA 5 mA 5 mA 5 mA


● for signal “1” permissible range, max.



2 A 2.4 A 0.6 A 600 A


● for signal “1” permissible surge current, max.



50 A; per cycle


● for signal “0” residual current, max.



2.6 mA 0.5 mA 0.3 mA 0.5 mA
Output delay with resistive load


● “0” to “1”, max.



1 ms 1 ms 1 ms


● “1” to “0”, max.



1 AC cycle 1 ms 1 ms
Parallel switching of two outputs


● for uprating



No; Not possible No; Not possible Yes; possible (only outputs of the same group) Yes; possible (only outputs of the same group)


● for redundant control of a load



Yes; Possible (only outputs with the same load voltage) Yes; Possible (only outputs with the same load voltage) Yes; possible (only outputs of the same group) Yes; possible (only outputs of the same group) Yes; possible (only outputs of the same group)
Switching frequency


● with resistive load, max.



10 Hz 10 Hz 100 Hz 100 Hz 100 Hz


● with inductive load, max.



0.5 Hz 0.1 Hz 0.5 Hz 2 Hz


● with inductive load (acc. to IEC 60947-5-1, DC13), max.



0.2 Hz; 0.2 Hz at 1 A; 0.1 Hz at 2 A 2 Hz; 2 Hz at 0.3 A; 0.5 Hz at 0.5 A 2 Hz


● with inductive load (acc. to IEC 60947-5-1, AC15), max.



0.5 Hz


● With inductive load (to IEC 60947-5-1, DC13/AC15), max.



1 Hz


● on lamp load, max.



1 Hz 1 Hz 10 Hz 10 Hz 2 Hz


● mechanical, max.



20 Hz
