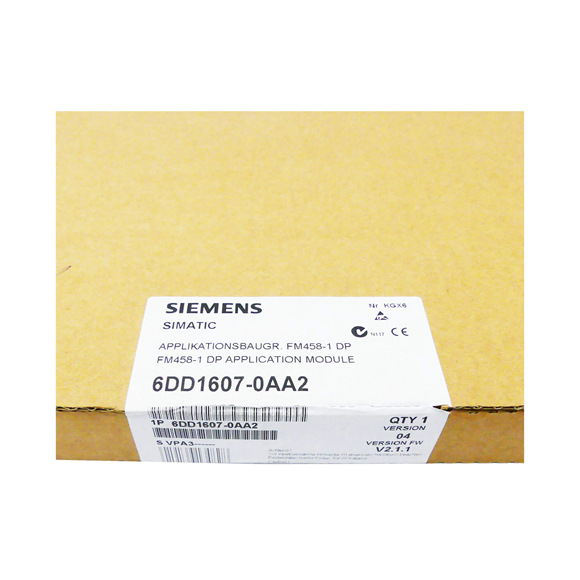

Article number | 6DD1607-0AA2 |
FM458-1 DP Application Module | |
Supply voltage | |
Rated value (DC) | |
● 5 V DC
|
Yes |
● 24 V DC
|
Yes |
permissible range (ripple included), lower limit (DC) | 4.8 V |
permissible range (ripple included), upper limit (DC) | 5.25 V |
Input current | |
Current consumption, typ. | 1.5 A |
Current consumption, max. | 3 A |
Memory | |
Backup | |
● present
|
Yes; SRAM |
Battery | |
Backup battery | |
● Backup current, max.
|
15 µA |
Hardware configuration | |
Slots | |
● required slots
|
1 |
Time of day | |
Clock | |
● Hardware clock (real-time)
|
Yes |
● Resolution
|
500 ms |
Digital inputs | |
Number of digital inputs | 8; Connector X2 |
Input voltage | |
● Rated value (DC)
|
24 V |
● for signal “0”
|
-1 to +6V |
● for signal “1”
|
13.5 to 33V |
Input current | |
● for signal “0”, max. (permissible quiescent current)
|
0 mA |
● for signal “1”, typ.
|
3 mA; at 24 V |
Input delay (for rated value of input voltage) | |
for standard inputs | |
— at “0” to “1”, max.
|
5 µs |
Interfaces | |
PROFIBUS DP | |
● Equidistance
|
Yes; With connection to interrupt tasks |
● Direct data exchange (slave-to-slave communication)
|
Yes |
Interrupts/diagnostics/status information | |
Alarms | Yes |
Potential separation | |
Potential separation digital inputs | |
● Potential separation digital inputs
|
No; only via optional interface modules |
Weights | |
Weight, approx. | 1 000 g |
