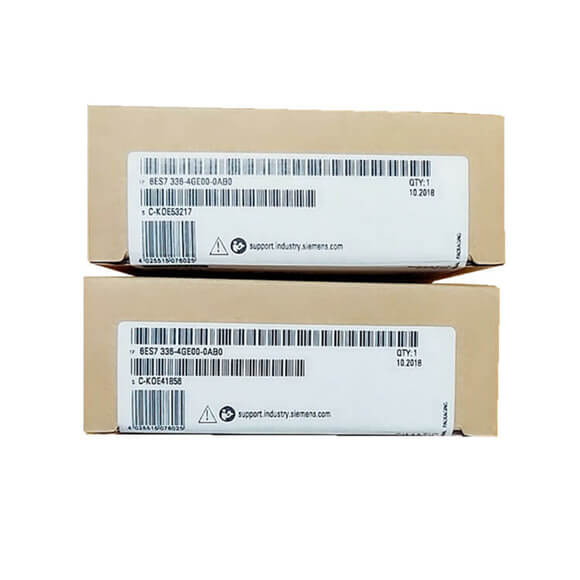

Article number | 6ES7336-4GE00-0AB0 |
SM 336, f.AI 6 X 0/4 … 20mA HART | |
Supply voltage | |
Rated value (DC) | 24 V |
Reverse polarity protection | Yes |
Load voltage L+ | |
● Rated value (DC)
|
24 V |
● Reverse polarity protection
|
Yes |
Input current | |
From power supply L+, typ. | 150 mA |
from backplane bus 5 V DC, max. | 90 mA |
Power loss | |
Power loss, typ. | 4.5 W |
Analog inputs | |
Number of analog inputs | 6 |
permissible input current for current input (destruction limit), max. | 40 mA |
Input ranges | |
● Voltage
|
No |
● Current
|
Yes |
● Thermocouple
|
No |
● Resistance thermometer
|
No |
● Resistance
|
No |
Input ranges (rated values), currents | |
● 0 to 20 mA
|
Yes |
— Input resistance (0 to 20 mA)
|
150 Ω; typ. 150 ohms max. 175 ohms |
● 4 mA to 20 mA
|
Yes |
— Input resistance (4 mA to 20 mA)
|
150 Ω; typ. 150 ohms max. 175 ohms |
Cable length | |
● shielded, max.
|
1 000 m |
Analog value generation for the inputs | |
Integration and conversion time/resolution per channel | |
● Resolution with overrange (bit including sign), max.
|
16 bit; 15 bit + sign |
● Integration time (ms)
|
20 ms @ 50 Hz, 16.7 ms @ 60 Hz |
● Interference voltage suppression for interference frequency f1 in Hz
|
f=n x (f1 ±0.5 %) |
Encoder | |
Connection of signal encoders | |
● for current measurement as 2-wire transducer
|
Yes |
● for current measurement as 4-wire transducer
|
Yes |
Errors/accuracies | |
Operational error limit in overall temperature range | |
● Current, relative to input range, (+/-)
|
0.2 %; 40 µA |
Basic error limit (operational limit at 25 °C) | |
● Current, relative to input range, (+/-)
|
0.1 % |
Interrupts/diagnostics/status information | |
Diagnostics function | Yes |
Alarms | |
● Diagnostic alarm
|
Yes |
Diagnoses | |
● Diagnostic information readable
|
Yes |
Diagnostics indication LED | |
● Fail-safe operation
|
Yes |
● Group error SF (red)
|
Yes |
● Encoder supply Vs (green)
|
No |
Potential separation | |
Potential separation analog inputs | |
● between the channels
|
Yes |
● between the channels and backplane bus
|
Yes |
● between the channels and the power supply of the electronics
|
Yes |
Isolation | |
Isolation tested with | 370V for 1 min |
Standards, approvals, certificates | |
Highest safety class achievable in safety mode | |
● acc. to EN 954
|
4 |
● Performance level according to ISO 13849-1
|
e |
● SIL acc. to IEC 61508
|
SIL 3 |
Connection method | |
required front connector | 20-pin |
Dimensions | |
Width | 40 mm |
Height | 125 mm |
Depth | 120 mm |
Weights | |
Weight, approx. | 350 g |
