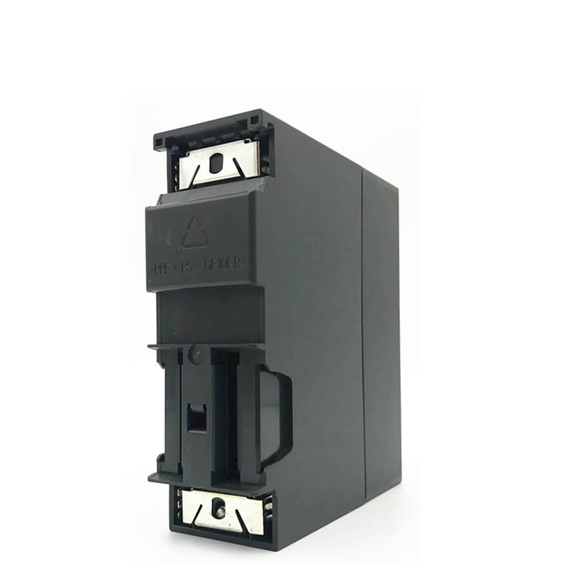

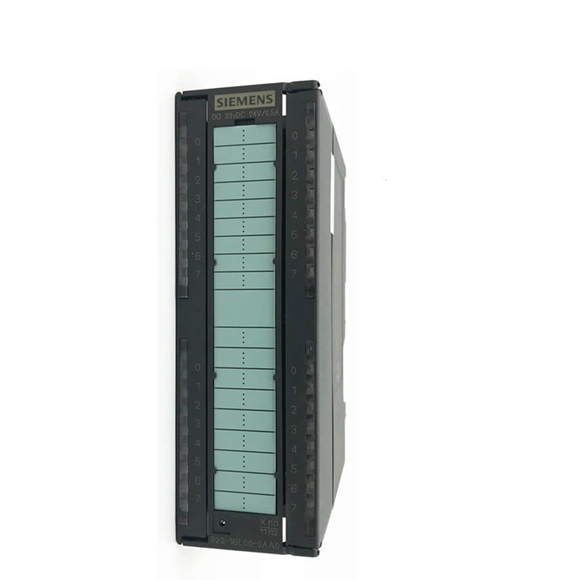

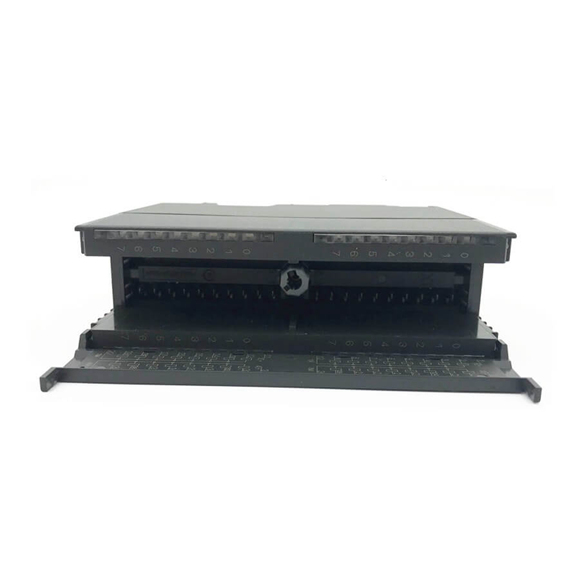

| Article number | 6ES7322-1BH01-0AA0 | 6ES7322-1BH10-0AA0 | 6ES7322-1BL00-0AA0 | 6ES7322-1BP00-0AA0 | 6ES7322-1BP50-0AA0 | 6ES7322-8BF00-0AB0 |
| SM322, 16DO 24V DC, 0,5A | SM322 High Speed, 16DO 24V DC, 0.5A | SM322, 32DO 24V DC, 0,5A | SM322 64DA, DC24V, 0,3A P-write | SM322 64DO, DC24V, 0.3A M-write | SM322, 8DO, 24V DC, 0,5A | |
| Load voltage L+ | ||||||
|
● Rated value (DC)
|
24 V | 24 V | 24 V | 24 V | 24 V | 24 V |
|
● permissible range, lower limit (DC)
|
20.4 V | 20.4 V | 20.4 V | 20.4 V | 20.4 V | 20.4 V |
|
● permissible range, upper limit (DC)
|
28.8 V | 28.8 V | 28.8 V | 28.8 V | 28.8 V | 28.8 V |
| Input current | ||||||
| from load voltage L+ (without load), max. | 80 mA | 110 mA | 160 mA | 75 mA | 75 mA | 90 mA |
| from backplane bus 5 V DC, max. | 80 mA | 70 mA | 110 mA | 100 mA | 100 mA | 70 mA |
| Power loss | ||||||
| Power loss, typ. | 4.9 W | 5 W | 6.6 W | 6 W | 6 W | 5 W |
| Digital outputs | ||||||
| Number of digital outputs | 16 | 16 | 32 | 64 | 64 | 8 |
| Short-circuit protection | Yes; Electronic | Yes; Electronic | Yes; Electronic | Yes; Electronic | Yes; Electronic | Yes; Electronic |
|
● Response threshold, typ.
|
1 A | 1 A | 1 A | 0.7 to 1.9 A | 0.75 to 1.5 A | |
| Limitation of inductive shutdown voltage to | L+ (-53 V) | L+ (-53 V) | L+ (-53 V) | L+ (-53 V) | M+ (45 V) | L+ (-45 V) |
| Controlling a digital input | Yes | Yes | Yes | Yes | Yes | Yes |
| Switching capacity of the outputs | ||||||
|
● on lamp load, max.
|
5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Load resistance range | ||||||
|
● lower limit
|
48 Ω | 48 Ω | 48 Ω | 80 Ω | 80 Ω | 48 Ω |
|
● upper limit
|
4 kΩ | 4 kΩ | 4 kΩ | 10 kΩ | 10 kΩ | 3 kΩ |
| Output voltage | ||||||
|
● for signal “1”, min.
|
L+ (-0.8 V) | L+ (-0.8 V) | L+ (-0.8 V) | L+ (-0.5 V) | M+ (0.5 V) | L+ (-0.8 to -1.6 V) |
| Output current | ||||||
|
● for signal “1” rated value
|
0.5 A | 0.5 A | 0.5 A | 0.3 A | 0.3 A | 0.5 A |
|
● for signal “1” permissible range, min.
|
2.4 mA | 2.4 mA | ||||
|
● for signal “1” permissible range, max.
|
0.36 A | 0.36 A | ||||
|
● for signal “1” permissible range for 0 to 40 °C, min.
|
5 mA | 5 mA | 5 mA | 10 mA | ||
|
● for signal “1” permissible range for 0 to 40 °C, max.
|
0.6 A | 0.6 A | 0.6 A | 0.6 A | ||
|
● for signal “1” permissible range for 40 to 60 °C, min.
|
5 mA | 5 mA | 5 mA | 10 mA | ||
|
● for signal “1” permissible range for 40 to 60 °C, max.
|
0.6 A | 0.6 A | 0.6 A | 0.6 A | ||
|
● for signal “1” minimum load current
|
5 mA | 5 mA | 5 mA | 10 mA | ||
|
● for signal “0” residual current, max.
|
0.5 mA | 0.5 mA | 0.5 mA | 0.1 mA | 0.5 mA | |
| Output delay with resistive load | ||||||
|
● “0” to “1”, max.
|
100 µs | 100 µs | 100 µs | 550 µs | 450 µs | 180 µs |
|
● “1” to “0”, max.
|
500 µs | 200 µs | 500 µs | 550 µs | 450 µs | 245 µs |
| Parallel switching of two outputs | ||||||
|
● for uprating
|
No | No | No | No | No | No |
|
● for redundant control of a load
|
Yes | Yes; only outputs of the same group | Yes; only outputs of the same group | Yes | Yes | Outputs with series diodes only |
| Switching frequency | ||||||
|
● with resistive load, max.
|
100 Hz | 1 000 Hz | 100 Hz | 100 Hz | 100 Hz | 100 Hz |
|
● with inductive load, max.
|
0.5 Hz | 0.5 Hz | 0.5 Hz | 0.5 Hz | 0.5 Hz | 2 Hz |
|
● with inductive load (acc. to IEC 60947-5-1, DC13), max.
|
0.5 Hz | 0.5 Hz | 0.5 Hz | 2 Hz | ||
|
● on lamp load, max.
|
10 Hz | 10 Hz | 10 Hz | 10 Hz | 10 Hz | 10 Hz |
| Total current of the outputs (per group) | ||||||
| horizontal installation | ||||||
|
— up to 40 °C, max.
|
4 A | 4 A | 4 A | 1.6 A | 1.6 A | 4 A |
|
— up to 60 °C, max.
|
3 A | 3 A | 3 A | 1.2 A | 1.2 A | 3 A |
| vertical installation | ||||||
|
— up to 40 °C, max.
|
2 A | 2 A | 2 A | 1.6 A | 1.6 A | 4 A |
| Cable length | ||||||
|
● shielded, max.
|
1 000 m | 1 000 m | 1 000 m | 1 000 m | 1 000 m | 1 000 m |
|
● unshielded, max.
|
600 m | 600 m | 600 m | 600 m | 600 m | 600 m |
