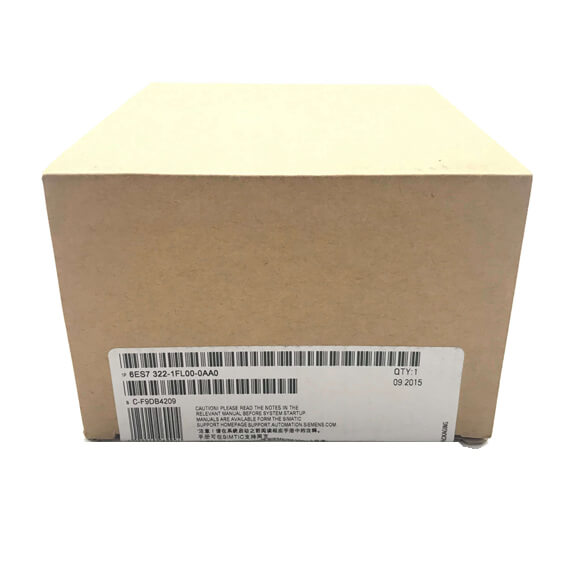

Siemens PLCs SM 322 output modules 6ES7322-1FL00-0AA0 6ES7322-1HF01-0AA0

Siemens PLCs SM 322 output modules 6ES7322-1FL00-0AA0 6ES7322-1HF01-0AA0

Series#: Siemens PLC

Product Details

Siemens PLCs SM 322 output modules 6ES7322-1FL00-0AA0 6ES7322-1HF01-0AA0
Siemens PLC Controller Module LOGO Series
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7322-1FL00-0AA0	6ES7322-1HF01-0AA0	6ES7322-1HF10-0AA0	6ES7322-5HF00-0AB0	6ES7322-1HH01-0AA0
	SM322, 32DO, 120/230V AC, 1A	SM322, 8DA, 24V DC/2A or 230V AC/2A	SM322, 8DA, 24V DC/5A OR 230V AC/5A	SM322, 8DO Relay, 24VDC, 120-230V AC, 5A	SM322, 16DO Relay
Load voltage L+
● Rated value (DC)		24 V	120 V	24 V	120 V
● permissible range, lower limit (DC)				24 V
● permissible range, upper limit (DC)				120 V
Load voltage L1
● Rated value (AC)	120 V; 120/230 V AC		230 V	230 V	230 V
● permissible range, lower limit (AC)	79 V
● permissible range, upper limit (AC)	264 V
● permissible frequency range, lower limit	47 Hz
● permissible frequency range, upper limit	63 Hz
Input current
from supply voltage L+, max.		160 mA	125 mA	160 mA	250 mA
from load voltage L1 (without load), max.	10 mA
from backplane bus 5 V DC, max.	190 mA	40 mA	40 mA	100 mA	100 mA
Power loss
Power loss, typ.	25 W	3.2 W	3.2 W	3.5 W	4.5 W
Digital outputs
Number of digital outputs	32	8; Relays	8; Relays	8; Relays	16; Relays
Short-circuit protection	No	No	No; to be provided externally	No; to be provided externally	No
Controlling a digital input	Yes	Yes	Yes	Yes	Yes
Size of motor starters according to NEMA, max.	Size 4 according to NEMA				Size 5 according to NEMA
Zero-crossing switch	Yes; Max. 60 V
Switching capacity of the outputs
● on lamp load, max.	50 W	50 W	1 500 W; 230 V AC	1 500 W; 230 V AC	50 W; 230 V AC
● Low energy/fluorescent lamps with electronic control gear		10x 58 W	10x 58 W	10x 58 W
● Fluorescent tubes, conventionally compensated		1x 58 W	1x 58 W	1x 58 W
● Fluorescent tubes, uncompensated		10x 58 W	10x 58 W	10x 58 W
Output voltage
● for signal “1”, min.	L1 (-0.8 V)
Output current
● for signal “1” rated value	1 A	2 A	5 A	5 A	2 A
● for signal “1” permissible range for 0 to 40 °C, min.	10 mA
● for signal “1” permissible range for 0 to 40 °C, max.	1 A
● for signal “1” permissible range for 40 to 60 °C, min.	10 mA
● for signal “1” permissible range for 40 to 60 °C, max.	1 A
● for signal “1” minimum load current	10 mA	5 mA	5 mA	10 mA	10 mA
● for signal “1” permissible surge current, max.	10 A; per group (for 2 AC cycles)
● for signal “0” residual current, max.	2 mA
Output delay with resistive load
● “0” to “1”, max.	1 AC cycle
● “1” to “0”, max.	1 AC cycle
Parallel switching of two outputs
● for uprating	No	No	No	No	No
● for redundant control of a load	Yes; only outputs of the same group	Yes	Yes	Yes	Yes
Switching frequency
● with resistive load, max.	10 Hz	2 Hz	2 Hz	2 Hz	1 Hz
● with inductive load, max.	0.5 Hz	0.5 Hz	0.5 Hz	0.5 Hz	0.5 Hz
● with inductive load (acc. to IEC 60947-5-1, AC15), max.	0.5 Hz
● With inductive load (to IEC 60947-5-1, DC13/AC15), max.		0.5 Hz	0.5 Hz	0.5 Hz	0.5 Hz
● on lamp load, max.	1 Hz	2 Hz	2 Hz	2 Hz	1 Hz
● mechanical, max.		10 Hz	10 Hz	10 Hz	10 Hz
Total current of the outputs (per group)
horizontal installation
— up to 40 °C, max.	4 A
— up to 60 °C, max.	3 A		5 A	5 A	8 A
vertical installation
— up to 40 °C, max.	4 A		5 A	5 A	8 A
Relay outputs
● Rated supply voltage of relay coil L+ (DC)		24 V; 110 mA	24 V		24 V
● Contact connection (internal)		Yes; SIOV-CU4032 K275G	No	Yes; 330 Ohm, 0.1uF	No
● Number of operating cycles, max.		300 000; 230 V AC: 100 000; 120 V AC: 200 000; 24 V DC: 300 000 (at 2 A)	300 000; 300 000 (24 V DC, at 2 A); 200 000 (120 V AC, at 3 A); 100 000 (230 V AC, at 3 A)	100 000; 100 000 (24 V DC, at 5 A), 100 000 (230 V AC, at 5 A)	100 000; 50 000 (24 V DC, at 2 A); 700 000 (120 V AC, at 2 A); 100 000 (230 V AC, at 2 A)
Switching capacity of contacts
— with inductive load, max.		2 A; 2 A (230 V AC), 2 A (24 V DC)	3 A; 3 A (230 V DC), 2 A (24 V AC)	5 A; 5 A (230 V DC), 5 A (24 V AC)	2 A; 2 A (230 V AC), 2 A (24 V DC)
— with resistive load, max.		2 A	8 A; 8 A (230 V DC), 5 A (24 V AC)	5 A; 5 A (230 V DC), 5 A (24 V AC)	2 A; 2 A (230 V AC), 2 A (24 V DC)
— Thermal continuous current, max.		3 A	8 A	5 A	2 A
Cable length
● shielded, max.	1 000 m	1 000 m	1 000 m	1 000 m	1 000 m
● unshielded, max.	600 m	600 m	600 m	600 m	600 m
Interrupts/diagnostics/status information
Alarms	No	No	No	Yes	No
Diagnostics function	Yes; Fuse blown or load voltage missing	No	No	Yes; Parameterizable	No
Alarms
● Diagnostic alarm	No	No	No	Yes; Parameterizable	No
Diagnoses
● Diagnostic information readable				Yes
● Wire-break		No	No		No
● Short-circuit		No	No		No
● Fuse blown		No	No		No
● missing load voltage		No	No		No
Diagnostics indication LED
● Rated load voltage PWR (green)		No	No		No
● Fuse OK FSG (green)		No	No		No
● Group error SF (red)	Yes			Yes
● Status indicator digital output (green)	Yes; per channel	Yes	Yes	Yes	Yes
Potential separation
Potential separation digital outputs
● between the channels	Yes	Yes	Yes	Yes	Yes
● between the channels, in groups of	8	2	1	1	8
● between the channels and backplane bus	Yes; Optocoupler	Yes; Optocoupler	Yes; Optocoupler	Yes; Optocoupler	Yes; Optocoupler
● Between the channels and the power supply of the relays				Yes
Isolation
Isolation tested with	4 000 V DC	1 500 V AC	2 000 V AC	1 500 V AC	1 500 V AC
Connection method
required front connector	20-pin	20-pin	40-pin	40-pin	20-pin
Dimensions
Width	80 mm	40 mm	40 mm	40 mm	40 mm
Height	125 mm	125 mm	125 mm	125 mm	125 mm
Depth	117 mm	120 mm	120 mm	120 mm	120 mm
Weights
Weight, approx.	500 g	190 g	320 g	320 g	250 g
