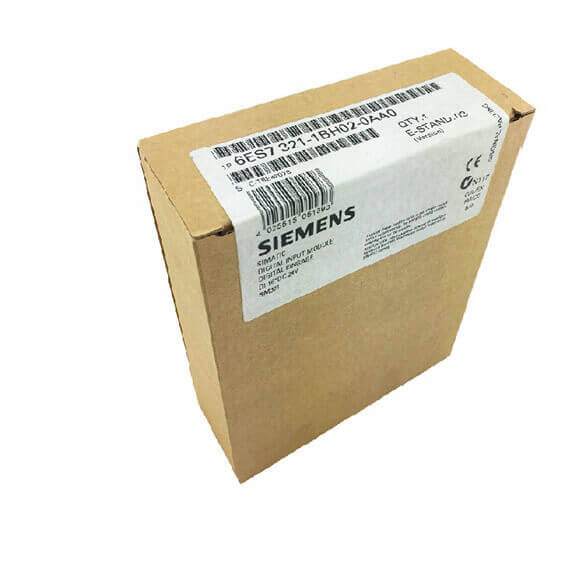

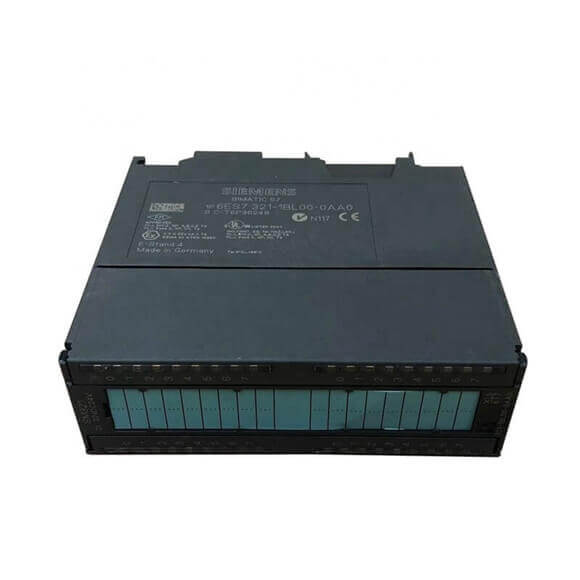

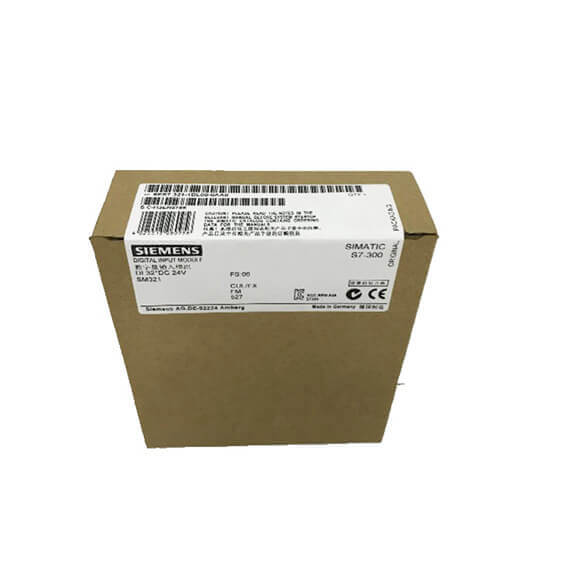

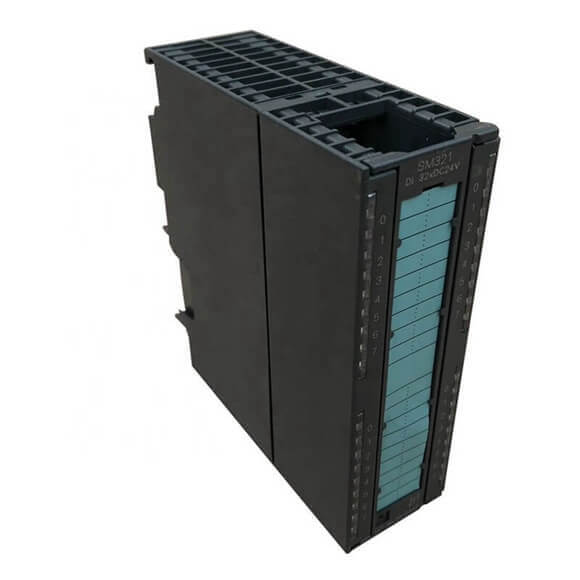

Siemens PLCs SM321 input modules 6ES7321-1BH02-0AA0 6ES7321-1BH10-0AA0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SM321 input modules 6ES7321-1BH02-0AA0 6ES7321-1BH10-0AA0
  • Siemens PLC Controller Module LOGO Series
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7321-1BH02-0AA0 6ES7321-1BH50-0AA0 6ES7321-1BL00-0AA0 6ES7321-1BP00-0AA0 6ES7321-1BH10-0AA0
SM321, 16DI, DC24V SM321, 16DI, DC24V, Source Input SM321, 32DI, DC24V SM321, 64 DI, DC 24V, 3MS, P/M reading SM321,16DI,DC24V, 0.05ms Input Delay.
Supply voltage
Load voltage L+


● Rated value (DC)



24 V 24 V 24 V 24 V 24 V


● permissible range, lower limit (DC)



20.4 V 20.4 V 20.4 V 20.4 V


● permissible range, upper limit (DC)



28.8 V 28.8 V 28.8 V 28.8 V


● Reverse polarity protection



Yes
Input current
from backplane bus 5 V DC, max. 10 mA 10 mA 15 mA 100 mA 110 mA
Power loss
Power loss, typ. 3.5 W 3.5 W 6.5 W 7 W 3.8 W
Digital inputs
Number of digital inputs 16 16 32 64 16
Input characteristic curve in accordance with IEC 61131, type 1 Yes Yes Yes Yes Yes
Number of simultaneously controllable inputs
all mounting positions


— up to 40 °C, max.



64


— up to 60 °C, max.



32
horizontal installation


— up to 40 °C, max.



16 16 32 64 16


— up to 60 °C, max.



16 16 16 32 16
vertical installation


— up to 40 °C, max.



16 16 32 32 16
Input voltage


● Type of input voltage



DC DC DC DC DC


● Rated value (DC)



24 V 24 V 24 V 24 V 24 V


● for signal “0”



-30 to +5 V -5 to +30V -30 to +5 V -30 to +5 V -30 to +5 V


● for signal “1”



13 to 30V -13 to -30V 13 to 30V 13 to 30V 13 to 30V
Input current


● for signal “1”, typ.



7 mA 7 mA 7 mA 4.2 mA 7 mA
Input delay (for rated value of input voltage)
for standard inputs


— parameterizable



No No No No No


— Rated value



4.2 ms


— at “0” to “1”, min.



1.2 ms 1.2 ms 1.2 ms 1.2 ms 25 µs


— at “0” to “1”, max.



4.8 ms 4.8 ms 4.8 ms 4.8 ms 75 µs


— at “1” to “0”, min.



1.2 ms 1.2 ms 1.2 ms 1.2 ms 25 µs


— at “1” to “0”, max.



4.8 ms 4.8 ms 4.8 ms 4.8 ms 75 µs
Cable length


● shielded, max.



1 000 m 1 000 m 1 000 m 1 000 m 1 000 m


● unshielded, max.



600 m 600 m 600 m 600 m 600 m
Encoder
Connectable encoders


● 2-wire sensor



Yes Yes Yes No Yes


— permissible quiescent current (2-wire sensor), max.



1.5 mA 1.5 mA 1.5 mA 1.5 mA
Interrupts/diagnostics/status information
Alarms No No No No No
Diagnostics function No No No No No
Alarms


● Diagnostic alarm



No No No No No


● Hardware interrupt



No No No No No
Diagnoses


● Diagnostic information readable



No


● Wire-break



No
Diagnostics indication LED


● Group error SF (red)



No


● Status indicator digital input (green)



Yes Yes Yes Yes Yes


● Encoder supply Vs (green)



No
Potential separation
Potential separation digital inputs


● between the channels



No No No No No


● between the channels, in groups of



16 16 16 16 16


● between the channels and backplane bus



Yes; Optocoupler Yes; Optocoupler Yes; Optocoupler Yes; Optocoupler Yes; Optocoupler
Isolation
Isolation tested with 500 V DC 500 V DC 500 V DC 500 V DC 500 V DC
Connection method
required front connector 20-pin 20-pin 40-pin Cable: 6ES7392-4Bxx0-0AA0 terminal blocks: 6ES7392-1xN00-0AA0 20-pin
Dimensions
Width 40 mm 40 mm 40 mm 40 mm 40 mm
Height 125 mm 125 mm 125 mm 125 mm 125 mm
Depth 120 mm 120 mm 120 mm 112 mm 120 mm
Weights
Weight, approx. 200 g 200 g 260 g 230 g 200 g
