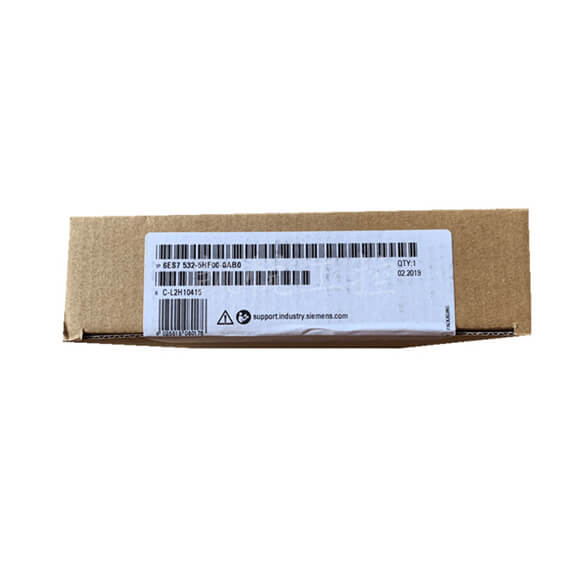

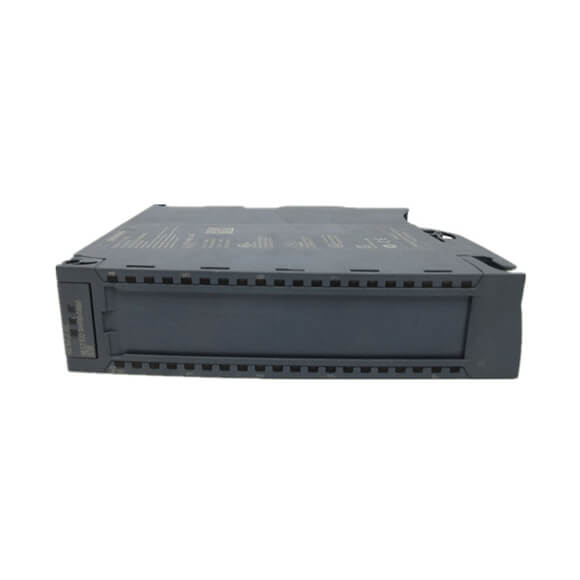

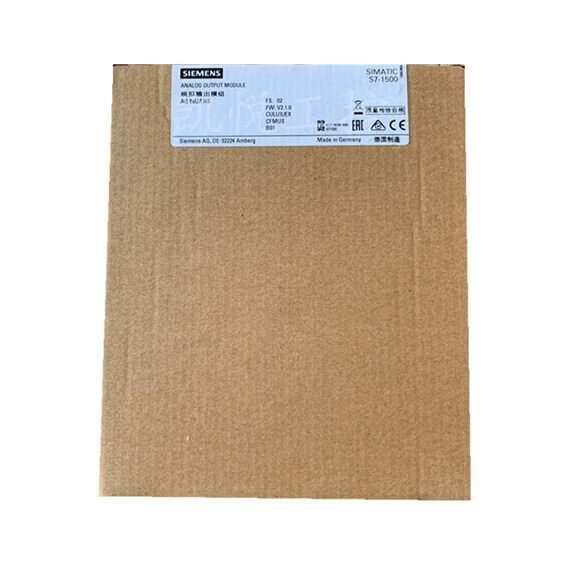

Siemens PLCs SM532 analog output modules 6ES7532-5HF00-0AB0

Series#: Siemens PLC

Product Details

  • Siemens PLCs SM532 analog output modules 6ES7532-5HD00-0AB0 6ES7532-5HF00-0AB0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7532-5NB00-0AB0 6ES7532-5HD00-0AB0 6ES7532-5HF00-0AB0 6ES7532-5ND00-0AB0
S7-1500, AQ 2xU/I ST S7-1500, AQ 4xU/I ST S7-1500, AQ 8xU/I HS S7-1500, AQ 4xU/I HF
General information
Product type designation AQ 2xU/I ST AQ 4xU/I ST AQ 8xU/I HS AQ 4xU/I HF
HW functional status FS01 from FS04 From FS01 From FS01
Firmware version V1.0.0 V2.2.0 V2.1.0 V1.1.0


● FW update possible



Yes Yes Yes Yes
Product function


● I&M data



Yes; I&M0 to I&M3 Yes; I&M0 to I&M3 Yes; I&M0 to I&M3 Yes; I&M0 to I&M3


● Isochronous mode



No No Yes Yes


● Prioritized startup



No No No Yes


● Output range scalable



No No No
Engineering with


● STEP 7 TIA Portal configurable/integrated from version



V13 / V13.0.2 V12 / V12 V14 / – V14 / –


● STEP 7 configurable/integrated from version



V5.5 SP3 / – V5.5 SP3 / – V5.5 SP3 / – V5.5 SP3 / –


● PROFIBUS from GSD version/GSD revision



V1.0 / V5.1 V1.0 / V5.1 V1.0 / V5.1 V1.0 / V5.1


● PROFINET from GSD version/GSD revision



V2.3 / – V2.3 / – V2.3 / – V2.3 / –
Operating mode


● Oversampling



No No Yes No


● MSO



Yes Yes Yes Yes
CiR – Configuration in RUN
Reparameterization possible in RUN Yes Yes Yes Yes
Calibration possible in RUN Yes Yes Yes Yes
Supply voltage
Type of supply voltage DC DC DC DC
Rated value (DC) 24 V 24 V 24 V 24 V
permissible range, lower limit (DC) 20.4 V 20.4 V 20.4 V 20.4 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V 28.8 V
Reverse polarity protection Yes Yes Yes Yes
Input current
Current consumption, max. 110 mA; with 24 V DC supply 190 mA; with 24 V DC supply 260 mA; with 24 V DC supply 160 mA; with 24 V DC supply
Power
Power available from the backplane bus 0.65 W 0.6 W 1.15 W 0.95 W
Power loss
Power loss, typ. 2.7 W 4 W 7 W 5 W
Analog outputs
Number of analog outputs 2 4 8 4
Voltage output, short-circuit protection Yes Yes Yes Yes
Voltage output, short-circuit current, max. 24 mA 24 mA 45 mA 24 mA
Current output, no-load voltage, max. 22 V 22 V 20 V 22 V
Cycle time (all channels), min. 3.2 ms; independent of number of activated channels 3.2 ms; independent of number of activated channels 125 µs; independent of number of activated channels 125 µs; independent of number of activated channels
Output ranges, voltage


● 0 to 10 V



Yes Yes Yes Yes


● 1 V to 5 V



Yes Yes Yes Yes


● -5 V to +5 V



No No No No


● -10 V to +10 V



Yes Yes Yes Yes
Output ranges, current


● 0 to 20 mA



Yes Yes Yes Yes


● -20 mA to +20 mA



Yes Yes Yes Yes


● 4 mA to 20 mA



Yes Yes Yes Yes
Connection of actuators


● for voltage output two-wire connection



Yes Yes Yes Yes


● for voltage output four-wire connection



Yes Yes Yes Yes


● for current output two-wire connection



Yes Yes Yes Yes
Load impedance (in rated range of output)


● with voltage outputs, min.



1 kΩ; 0.5 kOhm at 1 to 5 V 1 kΩ; 0.5 kOhm at 1 to 5 V 1 kΩ 1 kΩ; 0.5 kOhm at 1 to 5 V


● with voltage outputs, capacitive load, max.



1 µF 1 µF 100 nF 1 µF


● with current outputs, max.



750 Ω 750 Ω 500 Ω 750 Ω


● with current outputs, inductive load, max.



10 mH 10 mH 1 mH 10 mH
Cable length


● shielded, max.



800 m; for current, 200 m for voltage 800 m; for current, 200 m for voltage 200 m 800 m; for current, 200 m for voltage
Analog value generation for the outputs
Integration and conversion time/resolution per channel


● Resolution with overrange (bit including sign), max.



16 bit 16 bit 16 bit 16 bit


● Conversion time (per channel)



0.5 ms 0.5 ms 50 µs; independent of number of activated channels 125 µs; independent of number of activated channels
Settling time


● for resistive load



1.5 ms 1.5 ms 30 µs; see additional description in the manual 0.2 ms; see additional description in the manual


● for capacitive load



2.5 ms 2.5 ms 100 µs; see additional description in the manual 1.8 ms; see additional description in the manual


● for inductive load



2.5 ms 2.5 ms 100 µs; see additional description in the manual 2 ms; see additional description in the manual
