Siemens PLCs TM Count 2x24V counter module 6ES7550-1AA00-0AB0

Series#: Siemens PLC

Product Details

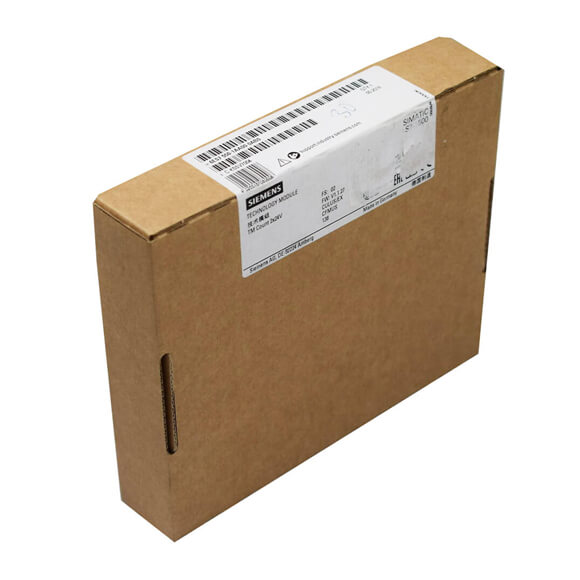

  • Siemens PLCs TM Count 2x24V counter module 6ES7550-1AA00-0AB0
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7550-1AA00-0AB0
S7-1500, TM Count 2x24V
General information
Product type designation TM Count 2x24V
Firmware version V1.3


● FW update possible



Yes
Product function


● I&M data



Yes; I&M0 to I&M3


● Isochronous mode



Yes
Engineering with


● STEP 7 TIA Portal configurable/integrated from version



V12 (FW V1.0) … V15 (FW V1.3)/V12 (FW V1.0), V13 (FW V1.1)


● PROFIBUS from GSD version/GSD revision



GSD Revision 5


● PROFINET from GSD version/GSD revision



V2.3 / –
Installation type/mounting
Rail mounting Yes; S7-1500 mounting rail
Supply voltage
Load voltage L+


● Rated value (DC)



24 V


● permissible range, lower limit (DC)



19.2 V


● permissible range, upper limit (DC)



28.8 V


● Reverse polarity protection



Yes
Input current
Current consumption, max. 75 mA; without load
Encoder supply
Number of outputs 1; A common 24V encoder supply for both channels
24 V encoder supply


● 24 V



Yes; L+ (-0.8 V)


● Short-circuit protection



Yes


● Output current, max.



1 A; total current of all encoders/channels
Power
Power available from the backplane bus 1.3 W
Power loss
Power loss, typ. 4 W
Address area
Address space per module


● Inputs



16 byte; Per channel


● Outputs



12 byte; per channel; 4 bytes for Motion Control
Digital inputs
Number of digital inputs 6; 3 per channel
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable


● Gate start/stop



Yes


● Capture



Yes


● Synchronization



Yes


● Freely usable digital input



Yes
Input voltage


● Type of input voltage



DC


● Rated value (DC)



24 V


● for signal “0”



-5 … +5 V


● for signal “1”



+11 to +30V


● permissible voltage at input, min.



-30 V; -5 V continuous, -30 V brief reverse polarity protection


● permissible voltage at input, max.



30 V
Input current


● for signal “1”, typ.



2.5 mA
Input delay (for rated value of input voltage)
for standard inputs


— parameterizable



Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms


— at “0” to “1”, min.



6 µs; for parameterization “none”


— at “1” to “0”, min.



6 µs; for parameterization “none”
for technological functions


— parameterizable



Yes
Cable length


● shielded, max.



1 000 m


● unshielded, max.



600 m
Digital outputs
Type of digital output Transistor
Number of digital outputs 4; 2 per channel
Digital outputs, parameterizable Yes
Short-circuit protection Yes; electronic/thermal


● Response threshold, typ.



1 A
Limitation of inductive shutdown voltage to L+ (-33 V)
Controlling a digital input Yes
Digital output functions, parameterizable


● Switching tripped by comparison values



Yes


● Freely usable digital output



Yes
Switching capacity of the outputs


● with resistive load, max.



0.5 A; Per digital output


● on lamp load, max.



5 W
Load resistance range


● lower limit



48 Ω


● upper limit



12 kΩ
Output voltage


● Type of output voltage



DC


● for signal “1”, min.



23.2 V; L+ (-0.8 V)
