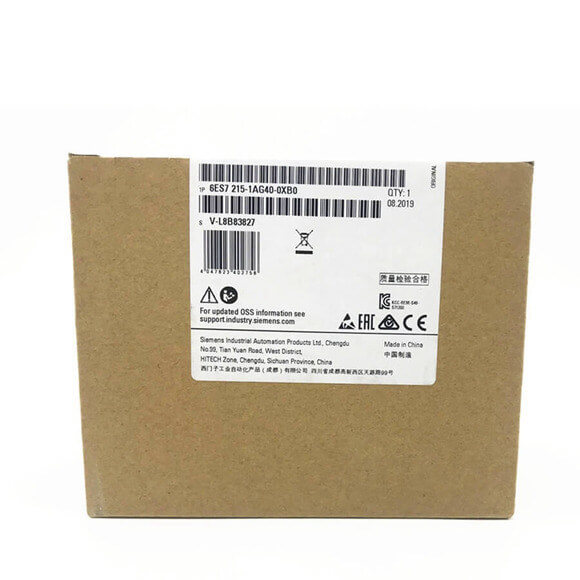

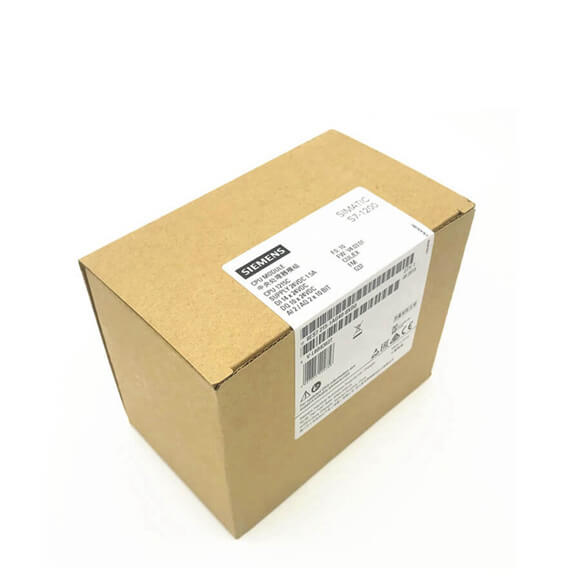

| Article number | 6ES7215-1BG40-0XB0 | 6ES7215-1AG40-0XB0 | 6ES7215-1HG40-0XB0 |
| CPU 1215C, AC/DC/RLY, 14DI/10DO/2AI/2AO | CPU 1215C, DC/DC/DC, 14DI/10DO/2AI/2AO | CPU 1215C, DC/DC/RLY, 14DI/10DO/2AI/2AO | |
| General information | |||
| Product type designation | CPU 1215C AC/DC/relay | CPU 1215C DC/DC/DC | CPU 1215C DC/DC/relay |
| Firmware version | V4.4 | V4.4 | V4.4 |
| Engineering with | |||
| ·
● Programming package · |
STEP 7 V16 or higher | STEP 7 V16 or higher | STEP 7 V16 or higher |
| Input current | |||
| Current consumption (rated value) | 100 mA at 120 V AC; 50 mA at 240 V AC | 500 mA; CPU only | 500 mA; CPU only |
| Current consumption, max. | 300 mA at 120 V AC; 150 mA at 240 V AC | 1 500 mA; CPU with all expansion modules | 1 500 mA; CPU with all expansion modules |
| Inrush current, max. | 20 A; at 264 V | 12 A; at 28.8 V DC | 12 A; at 28.8 V DC |
| I²t | 0.8 A²·s | 0.5 A²·s | 0.5 A²·s |
| Output current | |||
| for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM | 1 600 mA; Max. 5 V DC for SM and CM | 1 600 mA; Max. 5 V DC for SM and CM |
| CPU processing times | |||
| for bit operations, typ. | 0.08 µs; / instruction | 0.08 µs; / instruction | 0.08 µs; / instruction |
| for word operations, typ. | 1.7 µs; / instruction | 1.7 µs; / instruction | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.3 µs; / instruction | 2.3 µs; / instruction | 2.3 µs; / instruction |
| CPU-blocks | |||
| Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| OB | |||
| ·
● Number, max. · |
Limited only by RAM for code | Limited only by RAM for code | Limited only by RAM for code |
| Data areas and their retentivity | |||
| Retentive data area (incl. timers, counters, flags), max. | 10 kbyte | 10 kbyte | 10 kbyte |
| Flag | |||
| ·
● Number, max. · |
8 kbyte; Size of bit memory address area | 8 kbyte; Size of bit memory address area | 8 kbyte; Size of bit memory address area |
| Local data | |||
| ·
● per priority class, max. · |
16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
| ·
— parameterizable · |
Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| Cable length | |||
| ·
● shielded, max. · |
500 m; 50 m for technological functions | 500 m; 50 m for technological functions | 500 m; 50 m for technological functions |
| ·
● unshielded, max. · |
300 m; for technological functions: No | 300 m; for technological functions: No | 300 m; for technological functions: No |
| Encoder | |||
| Connectable encoders | |||
| ·
● 2-wire sensor · |
Yes | Yes | Yes |
| 1. Interface | |||
| Interface type | PROFINET | PROFINET | PROFINET |
| Physics | Ethernet | Ethernet | Ethernet |
| OPC UA | |||
| ·
● Runtime license required · |
Yes; “Basic” license required | Yes; “Basic” license required | Yes; “Basic” license required |
| ·
● OPC UA Server · |
Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required |
| ·
— Application authentication · |
Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| ·
— User authentication · |
“anonymous” or by user name & password | “anonymous” or by user name & password | “anonymous” or by user name & password |
| ·
● User data per job, max. · |
See online help (S7 communication, user data size) | See online help (S7 communication, user data size) | See online help (S7 communication, user data size) |
| Number of connections | |||
| ·
● overall · |
8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication |
| Test commissioning functions | |||
| Status/control | |||
| ·
● Status/control variable · |
Yes | Yes | Yes |
| ·
● Variables · |
Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| ·
● Limit class B, for use in residential areas · |
Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
| ·
● max. · |
60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical | 60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical |
| Vibrations | |||
| ·
● Vibration resistance during operation acc. to IEC 60068-2-6 · |
2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
| ·
● Operation, tested according to IEC 60068-2-6 · |
Yes | Yes | Yes |
| Shock testing | |||
| ·
● tested according to IEC 60068-2-27 · |
Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations | |||
| ·
● SO2 at RH < 60% without condensation · |
S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| Weights | |||
| Weight, approx. | 550 g | 500 g | 585 g |
