| Article number | 6ES7217-1AG40-0XB0 |

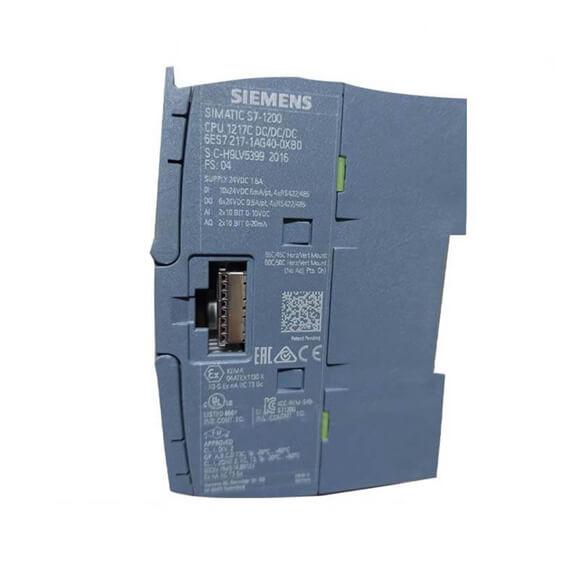

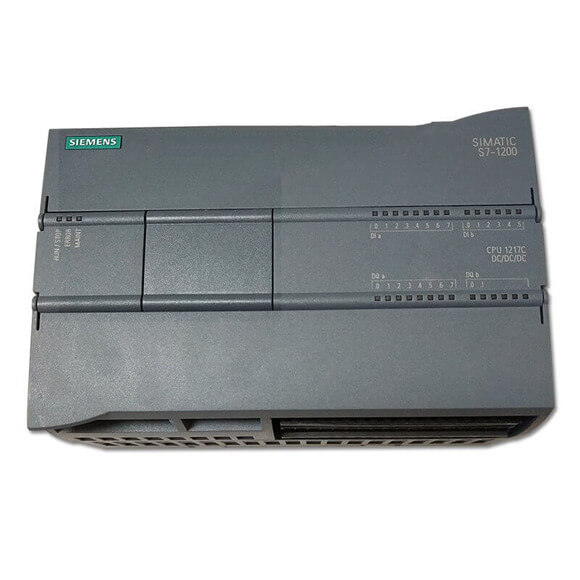

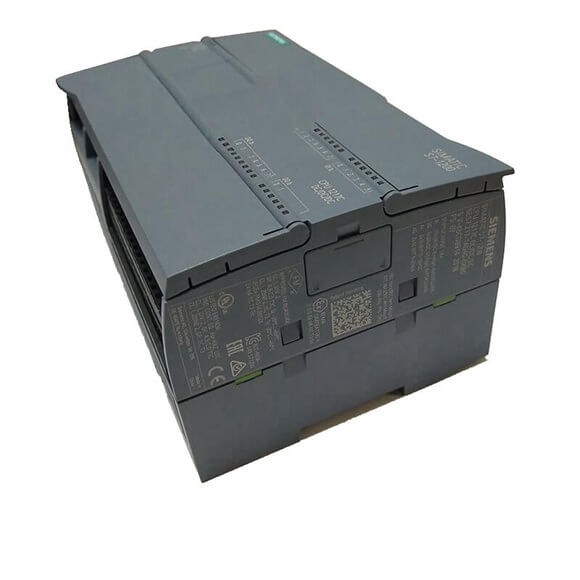

| CPU 1217C, DC/DC/DC, 14DI/10DQ/2AI/2AQ | |
| General information | |
| Product type designation | CPU 1217C DC/DC/DC |
| Firmware version | V4.4 |
| Load memory | |
| ·
● integrated · |
4 Mbyte |
| ·
● Plug-in (SIMATIC Memory Card), max. · |
with SIMATIC memory card |
| CPU processing times | |
| for bit operations, typ. | 0.08 µs; / instruction |
| for word operations, typ. | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.3 µs; / Operation |
| CPU-blocks | |
| Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| OB | |
| ·
● Number, max. · |
Limited only by RAM for code |
| Data areas and their retentivity | |
| Retentive data area (incl. timers, counters, flags), max. | 10 kbyte |
| Flag | |
| ·
● Number, max. · |
8 kbyte; Size of bit memory address area |
| Local data | |
| ·
● per priority class, max. · |
16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
| Process image | |
| ·
● Inputs, adjustable · |
1 kbyte |
| ·
● Outputs, adjustable · |
1 kbyte |
| Hardware configuration | |
| Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules |
| for technological functions | |
| ·
— parameterizable · |
Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| Cable length | |
| ·
● shielded, max. · |
500 m; 50 m for technological functions |
| ·
● unshielded, max. · |
300 m; for technological functions: No |
| Digital outputs | |
| Number of digital outputs | 10 |
| ·
● of which high-speed outputs · |
4; 100 kHz Pulse Train Output |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| Protocols | |
| Supports protocol for PROFINET IO | Yes |
| PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required |
| AS-Interface | Yes; CM 1243-2 required |
| ● User data per job, max.
· |
See online help (S7 communication, user data size) |
| Number of connections | |
| ·
● overall · |
8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication |
| Integrated Functions | |
| Number of counters | 6 |
| Counting frequency (counter) max. | 1 MHz |
| Frequency measurement | Yes |
| controlled positioning | Yes |
| Number of position-controlled positioning axes, max. | 8 |
| Number of positioning axes via pulse-direction interface | 4; With integrated outputs |
| Weights | |
| Weight, approx. | 530 g |
