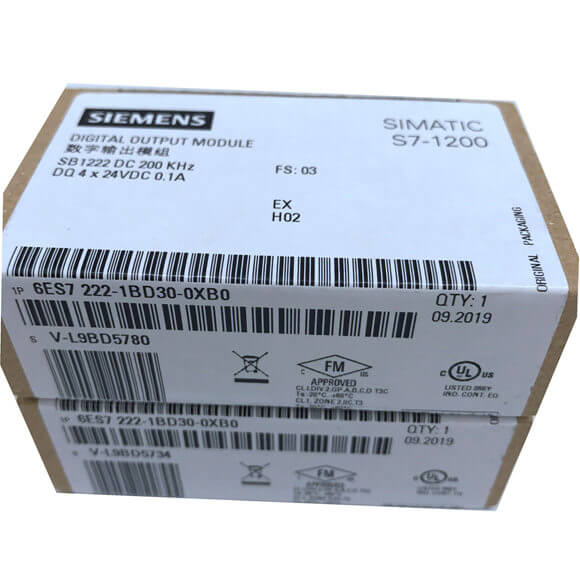

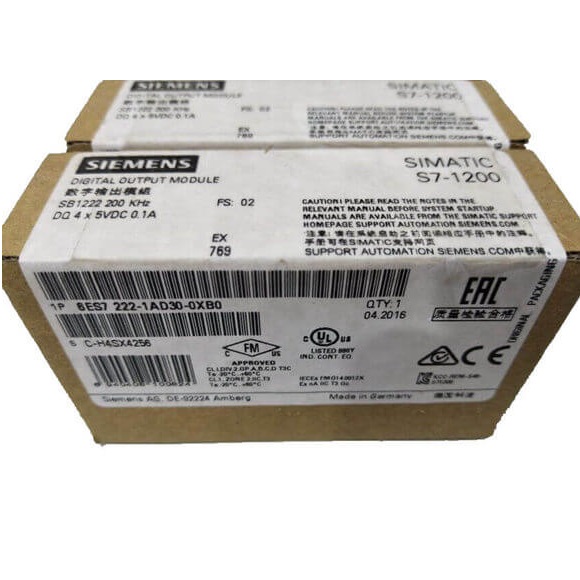

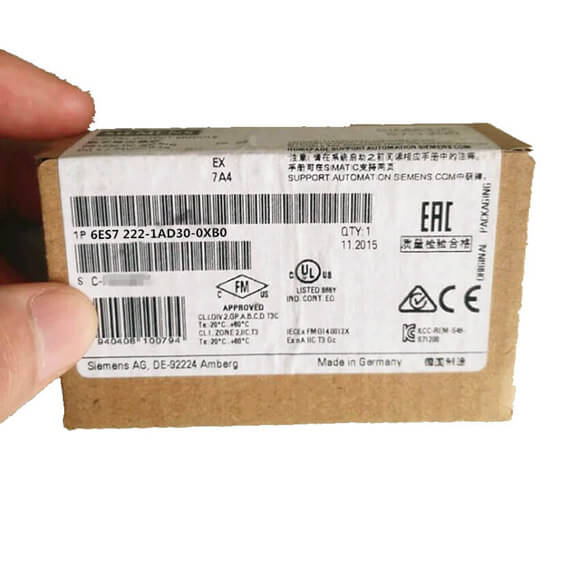

| Article number | 6ES7222-1AD30-0XB0 | 6ES7222-1BD30-0XB0 |
| Signal Board SB1222, 4 DQ 5VDC 200KHz | Signal Board SB1222, 4 DQ 24VDC 200KHz | |
| General information | ||
| Product type designation | SB 1222, DQ 4×5 V DC 200 kHz | SB 1222, DQ 4×24 V DC 200 kHz |
| Input current | ||
| from backplane bus 5 V DC, typ. | 35 mA | 35 mA |
| Power loss | ||
| Power loss, typ. | 0.5 W | 0.5 W |
| Digital outputs | ||
| Number of digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
|
● in groups of
|
4 | 4 |
| Short-circuit protection | No | No |
| Switching capacity of the outputs | ||
|
● with resistive load, max.
|
0.1 A | 0.1 A |
| Load resistance range | ||
|
● upper limit
|
7 Ω | 11 Ω |
| Output voltage | ||
|
● Rated value (DC)
|
5 V | 24 V |
|
● for signal “0”, max.
|
0.2 V | 1 V; with 10 kOhm load |
|
● for signal “1”, min.
|
L+ minus 0.7 V DC | L+ (-1.5 V) |
|
● for signal “1”, max.
|
6 V | |
| Output current | ||
|
● for signal “1” permissible range, max.
|
0.1 A | 0.1 A |
| Cable length | ||
|
● shielded, max.
|
50 m | 50 m |
| Diagnostics indication LED | ||
|
● for status of the outputs
|
Yes | Yes |
| Standards, approvals, certificates | ||
| CE mark | Yes | Yes |
| CSA approval | Yes | Yes |
| UL approval | Yes | Yes |
| cULus | Yes | Yes |
| FM approval | Yes | Yes |
| RCM (formerly C-TICK) | Yes | Yes |
| KC approval | Yes | Yes |
| Marine approval | Yes | Yes |
| Ambient conditions | ||
| Free fall | ||
|
● Fall height, max.
|
0.3 m; five times, in product package | 0.3 m; five times, in product package |
| Ambient temperature during operation | ||
|
● min.
|
-20 °C | -20 °C |
|
● max.
|
60 °C | 60 °C |
|
● horizontal installation, min.
|
-20 °C | -20 °C |
|
● horizontal installation, max.
|
60 °C | 60 °C |
|
● vertical installation, min.
|
-20 °C | -20 °C |
|
● vertical installation, max.
|
50 °C | 50 °C |
| Ambient temperature during storage/transportation | ||
|
● min.
|
-40 °C | -40 °C |
|
● max.
|
70 °C | 70 °C |
| Air pressure acc. to IEC 60068-2-13 | ||
|
● Storage/transport, min.
|
660 hPa | 660 hPa |
|
● Storage/transport, max.
|
1 080 hPa | 1 080 hPa |
| Relative humidity | ||
|
● Operation at 25 ℃ without condensation, max.
|
95 % | 95 % |
| Mechanics/material | ||
| Enclosure material (front) | ||
|
● Plastic
|
Yes | Yes |
| Dimensions | ||
| Width | 38 mm | 38 mm |
| Height | 62 mm | 62 mm |
| Depth | 21 mm | 21 mm |
| Weights | ||
| Weight, approx. | 35 g | 35 g |
