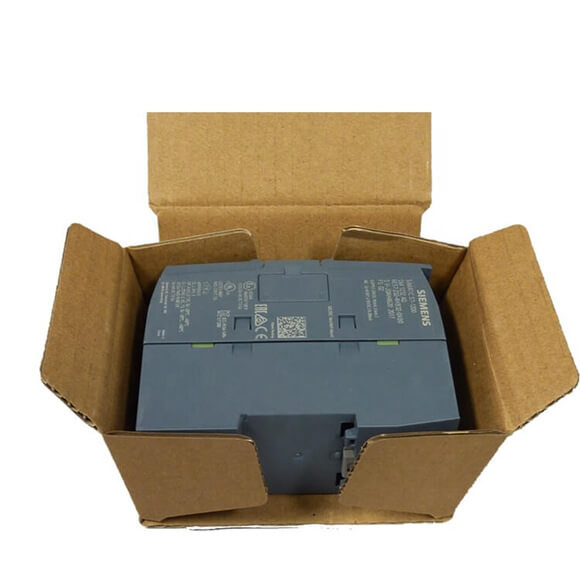

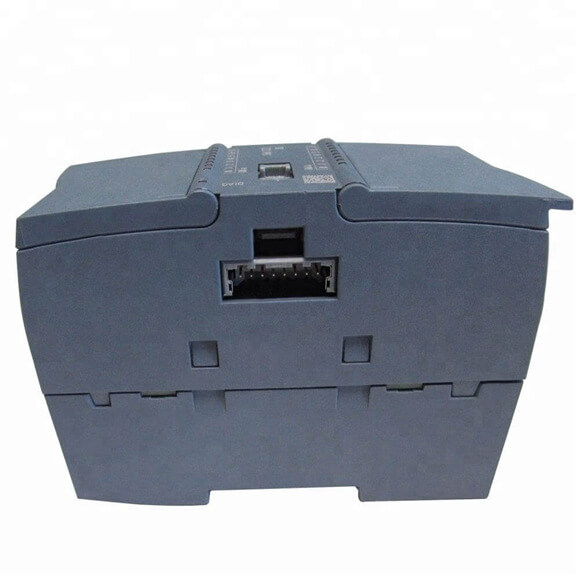

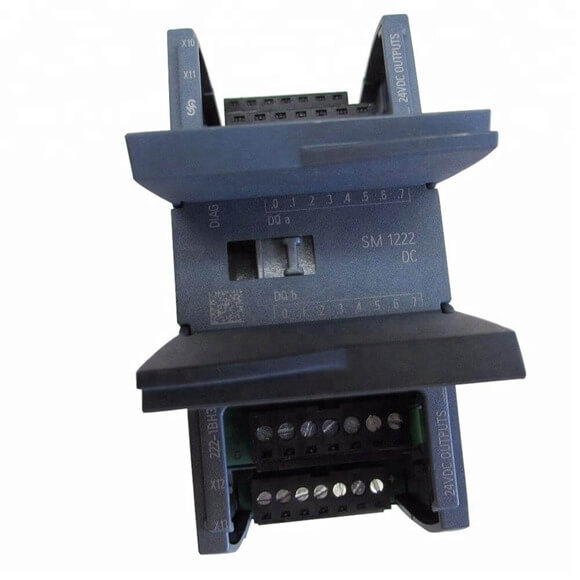

Siemens S7-1200 PLCs SM1222 I/O modules 6ES7222-1BF32-0XB0 6ES7222-1BH32-0XB0

Series#: Siemens PLC

Product Details

  • Siemens S7-1200 PLCs SM1222 I/O modules 6ES7222-1BF32-0XB0 6ES7222-1BH32-0XB0
  • We are First Class Siemens Supplier,siemens plc dealer and siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6ES7222-1BF32-0XB0 6ES7222-1BH32-0XB0 6ES7222-1BH32-1XB0 6ES7222-1HF32-0XB0 6ES7222-1HH32-0XB0 6ES7222-1XF32-0XB0
Digital Output SM1222, 8 DO, 24V DC Digital Output SM1222, 16 DO, 24V DC Digital Output SM1222, 16DO, 24V DC sink Digital Output SM 1222, 8 DO, Relay Digital Output SM1222, 16 DO, Relay Digital Output SM 1222, 8 DO, Changeover
General information
Product type designation SM 1222, DQ 8×24 V DC/0.5 A SM 1222, DQ 16×24 V DC/0.5 A SM 1222, DO 16x 24 V DC/0.5 A Sink SM 1222, DQ 8x relay/2 A SM 1222, DQ 16x relay/2 A SM 1222, DQ 8x relay/2 A
Supply voltage
permissible range, lower limit (DC) 20.4 V 20.4 V 20.4 V 20.4 V 20.4 V 20.4 V
permissible range, upper limit (DC) 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V 28.8 V
Input current
from backplane bus 5 V DC, max. 120 mA 140 mA 140 mA 120 mA 135 mA 140 mA
Digital outputs
·

● from load voltage L+, max.

·

11 mA/relay coil 11 mA/relay coil 16.7 mA/relay coil
Power loss
Power loss, typ. 1.5 W 2.5 W 2.5 W 4.5 W 8.5 W 5 W
Digital outputs
Number of digital outputs 8 16 16 8 16 8
·

● in groups of

·

1 1 1 2 1 1
Current-sinking Yes
Short-circuit protection No; to be provided externally No; to be provided externally No; to be provided externally No; to be provided externally No; to be provided externally No; to be provided externally
Limitation of inductive shutdown voltage to typ. (L+) -48 V typ. (L+) -48 V Typ 45 V
Switching capacity of the outputs
·

● with resistive load, max.

·

0.5 A 0.5 A 0.5 A 2 A 2 A 2 A
·

● on lamp load, max.

·

5 W 5 W 5 W 30 W with DC, 200 W with AC 30 W with DC, 200 W with AC 30 W with DC, 200 W with AC
Output voltage
·

● Rated value (DC)

·

24 V 24 V 24 V 5 V DC to 30 V DC 5 V DC to 30 V DC 5 V DC to 30 V DC
·

● Rated value (AC)

·

5 V AC to 250 V AC 5 V AC to 250 V AC 5 V AC to 250 V AC
·

● for signal “0”, max.

·

0.1 V; with 10 kOhm load 0.1 V; with 10 kOhm load L+ minus 0.75 V DC with 10k Load
·

● for signal “1”, min.

·

20 V DC 20 V DC 0,5 V
Output current
·

● for signal “1” rated value

·

0.5 A 0.5 A 0.5 A 2 A 2 A 2 A
·

● for signal “0” residual current, max.

·

10 µA 10 µA 75 µA
Output delay with resistive load
·

● “0” to “1”, max.

·

50 µs 50 µs 20 µs 10 ms 10 ms 10 ms
·

● “1” to “0”, max.

·

200 µs 200 µs 350 µs 10 ms 10 ms 10 ms
Total current of the outputs (per group)
horizontal installation
·

— up to 50 °C, max.

·

4 A; Current per mass 8 A; Current per mass 8 A; Current per mass 10 A; Current per mass 10 A; Current per mass 2 A; Current per mass
Relay outputs
·

● Number of relay outputs

·

8 16 8
·

● Rated supply voltage of relay coil L+ (DC)

·

24 V 24 V 24 V
·

● Number of operating cycles, max.

·

mechanically 10 million, at rated load voltage 100 000 mechanically 10 million, at rated load voltage 100 000 mechanically 10 million, at rated load voltage 100 000
Switching capacity of contacts
·

— with inductive load, max.

·

0.5 A 0.5 A 0.5 A 2 A 2 A 2 A
·

— on lamp load, max.

·

5 W 5 W 5 W 30 W with DC, 200 W with AC 30 W with DC, 200 W with AC 30 W with DC, 200 W with AC
·

— with resistive load, max.

·

0.5 A 0.5 A 0.5 A 2 A 2 A 2 A
Cable length
·

● shielded, max.

·

500 m 500 m 500 m 500 m 500 m 500 m
·

● unshielded, max.

·

150 m 150 m 150 m 150 m 150 m 150 m
Interrupts/diagnostics/status information
Alarms
·

● Diagnostic alarm

·

Yes Yes Yes Yes Yes Yes
Diagnostics indication LED
·

● for status of the outputs

·

Yes Yes Yes Yes Yes Yes
Potential separation
Potential separation digital outputs
·

● between the channels

·

Relays Relays Relays
·

● between the channels, in groups of

·

1 1 1 2 4 1
·

● between the channels and backplane bus

·

500 V AC 500 V AC 500 V AC 1 500 V AC for 1 minute 1 500 V AC for 1 minute 1 500 V AC for 1 minute
Permissible potential difference
between different circuits 750 V AC for 1 minute 750 V AC for 1 minute 750 V AC for 1 minute
Degree and class of protection
IP degree of protection IP20 IP20 IP20 IP20 IP20 IP20
Standards, approvals, certificates
CE mark Yes Yes Yes Yes Yes Yes
CSA approval Yes Yes Yes Yes Yes Yes
UL approval Yes Yes Yes Yes Yes Yes
cULus Yes Yes Yes Yes Yes Yes
FM approval Yes Yes Yes Yes Yes Yes
RCM (formerly C-TICK) Yes Yes Yes Yes Yes Yes
KC approval Yes Yes Yes Yes Yes Yes
Marine approval Yes Yes Yes Yes Yes Yes
Ambient conditions
Free fall
·

● Fall height, max.

·

0.3 m; five times, in product package 0.3 m; five times, in product package 0.3 m; five times, in product package 0.3 m; five times, in product package 0.3 m; five times, in product package
Ambient temperature during operation
·

● min.

·

-20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
·

● max.

·

60 °C 60 °C 60 °C 60 °C 60 °C; Number of simultaneously activated outputs: 8 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 16 at 55 °C horizontal or 45 °C vertical 60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical
·

● horizontal installation, min.

·

-20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
·

● horizontal installation, max.

·

60 °C 60 °C 60 °C 60 °C 60 °C 60 °C
·

● vertical installation, min.

·

-20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
·

● vertical installation, max.

·

50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
·

● permissible temperature change

·

5°C to 55°C, 3°C / minute 5°C to 55°C, 3°C / minute 5°C to 55°C, 3°C / minute 5°C to 55°C, 3°C / minute 5°C to 55°C, 3°C / minute 5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
·

● min.

·

-40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
·

● max.

·

70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Air pressure acc. to IEC 60068-2-13
·

● Storage/transport, min.

·

660 hPa 660 hPa 660 hPa 660 hPa 660 hPa 660 hPa
·

● Storage/transport, max.

·

1 080 hPa 1 080 hPa 1 080 hPa 1 080 hPa 1 080 hPa 1 080 hPa
Relative humidity
·

● Operation at 25 ℃ without condensation, max.

·

95 % 95 % 95 % 95 % 95 % 95 %
Connection method
required front connector Yes Yes Yes Yes Yes Yes
Mechanics/material
Enclosure material (front)
·

● Plastic

·

Yes Yes Yes Yes Yes Yes
Dimensions
Width 45 mm 45 mm 45 mm 45 mm 45 mm 70 mm
Height 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm
Depth 75 mm 75 mm 75 mm 75 mm 75 mm 75 mm
Weights
Weight, approx. 180 g 220 g 220 g 190 g 260 g 310 g
