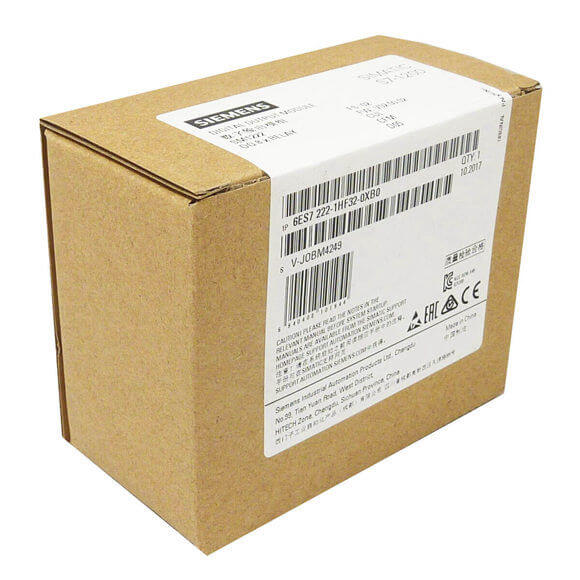

Article number | 6ES7222-1BF32-0XB0 | 6ES7222-1BH32-0XB0 | 6ES7222-1BH32-1XB0 | 6ES7222-1HF32-0XB0 | 6ES7222-1HH32-0XB0 | 6ES7222-1XF32-0XB0 |
Digital Output SM1222, 8 DO, 24V DC | Digital Output SM1222, 16 DO, 24V DC | Digital Output SM1222, 16DO, 24V DC sink | Digital Output SM 1222, 8 DO, Relay | Digital Output SM1222, 16 DO, Relay | Digital Output SM 1222, 8 DO, Changeover | |
General information | ||||||
Product type designation | SM 1222, DQ 8×24 V DC/0.5 A | SM 1222, DQ 16×24 V DC/0.5 A | SM 1222, DO 16x 24 V DC/0.5 A Sink | SM 1222, DQ 8x relay/2 A | SM 1222, DQ 16x relay/2 A | SM 1222, DQ 8x relay/2 A |
Supply voltage | ||||||
permissible range, lower limit (DC) | 20.4 V | 20.4 V | 20.4 V | 20.4 V | 20.4 V | 20.4 V |
permissible range, upper limit (DC) | 28.8 V | 28.8 V | 28.8 V | 28.8 V | 28.8 V | 28.8 V |
Input current | ||||||
from backplane bus 5 V DC, max. | 120 mA | 140 mA | 140 mA | 120 mA | 135 mA | 140 mA |
Digital outputs | ||||||
·● from load voltage L+, max.
· |
11 mA/relay coil | 11 mA/relay coil | 16.7 mA/relay coil | |||
Power loss | ||||||
Power loss, typ. | 1.5 W | 2.5 W | 2.5 W | 4.5 W | 8.5 W | 5 W |
Digital outputs | ||||||
Number of digital outputs | 8 | 16 | 16 | 8 | 16 | 8 |
·● in groups of
· |
1 | 1 | 1 | 2 | 1 | 1 |
Current-sinking | Yes | |||||
Short-circuit protection | No; to be provided externally | No; to be provided externally | No; to be provided externally | No; to be provided externally | No; to be provided externally | No; to be provided externally |
Limitation of inductive shutdown voltage to | typ. (L+) -48 V | typ. (L+) -48 V | Typ 45 V | |||
Switching capacity of the outputs | ||||||
·● with resistive load, max.
· |
0.5 A | 0.5 A | 0.5 A | 2 A | 2 A | 2 A |
·● on lamp load, max.
· |
5 W | 5 W | 5 W | 30 W with DC, 200 W with AC | 30 W with DC, 200 W with AC | 30 W with DC, 200 W with AC |
Output voltage | ||||||
·● Rated value (DC)
· |
24 V | 24 V | 24 V | 5 V DC to 30 V DC | 5 V DC to 30 V DC | 5 V DC to 30 V DC |
·● Rated value (AC)
· |
5 V AC to 250 V AC | 5 V AC to 250 V AC | 5 V AC to 250 V AC | |||
·● for signal “0”, max.
· |
0.1 V; with 10 kOhm load | 0.1 V; with 10 kOhm load | L+ minus 0.75 V DC with 10k Load | |||
·● for signal “1”, min.
· |
20 V DC | 20 V DC | 0,5 V | |||
Output current | ||||||
·● for signal “1” rated value
· |
0.5 A | 0.5 A | 0.5 A | 2 A | 2 A | 2 A |
·● for signal “0” residual current, max.
· |
10 µA | 10 µA | 75 µA | |||
Output delay with resistive load | ||||||
·● “0” to “1”, max.
· |
50 µs | 50 µs | 20 µs | 10 ms | 10 ms | 10 ms |
·● “1” to “0”, max.
· |
200 µs | 200 µs | 350 µs | 10 ms | 10 ms | 10 ms |
Total current of the outputs (per group) | ||||||
horizontal installation | ||||||
·— up to 50 °C, max.
· |
4 A; Current per mass | 8 A; Current per mass | 8 A; Current per mass | 10 A; Current per mass | 10 A; Current per mass | 2 A; Current per mass |
Relay outputs | ||||||
·● Number of relay outputs
· |
8 | 16 | 8 | |||
·● Rated supply voltage of relay coil L+ (DC)
· |
24 V | 24 V | 24 V | |||
·● Number of operating cycles, max.
· |
mechanically 10 million, at rated load voltage 100 000 | mechanically 10 million, at rated load voltage 100 000 | mechanically 10 million, at rated load voltage 100 000 | |||
Switching capacity of contacts | ||||||
·— with inductive load, max.
· |
0.5 A | 0.5 A | 0.5 A | 2 A | 2 A | 2 A |
·— on lamp load, max.
· |
5 W | 5 W | 5 W | 30 W with DC, 200 W with AC | 30 W with DC, 200 W with AC | 30 W with DC, 200 W with AC |
·— with resistive load, max.
· |
0.5 A | 0.5 A | 0.5 A | 2 A | 2 A | 2 A |
Cable length | ||||||
·● shielded, max.
· |
500 m | 500 m | 500 m | 500 m | 500 m | 500 m |
·● unshielded, max.
· |
150 m | 150 m | 150 m | 150 m | 150 m | 150 m |
Interrupts/diagnostics/status information | ||||||
Alarms | ||||||
·● Diagnostic alarm
· |
Yes | Yes | Yes | Yes | Yes | Yes |
Diagnostics indication LED | ||||||
·● for status of the outputs
· |
Yes | Yes | Yes | Yes | Yes | Yes |
Potential separation | ||||||
Potential separation digital outputs | ||||||
·● between the channels
· |
Relays | Relays | Relays | |||
·● between the channels, in groups of
· |
1 | 1 | 1 | 2 | 4 | 1 |
·● between the channels and backplane bus
· |
500 V AC | 500 V AC | 500 V AC | 1 500 V AC for 1 minute | 1 500 V AC for 1 minute | 1 500 V AC for 1 minute |
Permissible potential difference | ||||||
between different circuits | 750 V AC for 1 minute | 750 V AC for 1 minute | 750 V AC for 1 minute | |||
Degree and class of protection | ||||||
IP degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
Standards, approvals, certificates | ||||||
CE mark | Yes | Yes | Yes | Yes | Yes | Yes |
CSA approval | Yes | Yes | Yes | Yes | Yes | Yes |
UL approval | Yes | Yes | Yes | Yes | Yes | Yes |
cULus | Yes | Yes | Yes | Yes | Yes | Yes |
FM approval | Yes | Yes | Yes | Yes | Yes | Yes |
RCM (formerly C-TICK) | Yes | Yes | Yes | Yes | Yes | Yes |
KC approval | Yes | Yes | Yes | Yes | Yes | Yes |
Marine approval | Yes | Yes | Yes | Yes | Yes | Yes |
Ambient conditions | ||||||
Free fall | ||||||
·● Fall height, max.
· |
0.3 m; five times, in product package | 0.3 m; five times, in product package | 0.3 m; five times, in product package | 0.3 m; five times, in product package | 0.3 m; five times, in product package | |
Ambient temperature during operation | ||||||
·● min.
· |
-20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
·● max.
· |
60 °C | 60 °C | 60 °C | 60 °C | 60 °C; Number of simultaneously activated outputs: 8 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 16 at 55 °C horizontal or 45 °C vertical | 60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical |
·● horizontal installation, min.
· |
-20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
·● horizontal installation, max.
· |
60 °C | 60 °C | 60 °C | 60 °C | 60 °C | 60 °C |
·● vertical installation, min.
· |
-20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
·● vertical installation, max.
· |
50 °C | 50 °C | 50 °C | 50 °C | 50 °C | 50 °C |
·● permissible temperature change
· |
5°C to 55°C, 3°C / minute | 5°C to 55°C, 3°C / minute | 5°C to 55°C, 3°C / minute | 5°C to 55°C, 3°C / minute | 5°C to 55°C, 3°C / minute | 5°C to 55°C, 3°C / minute |
Ambient temperature during storage/transportation | ||||||
·● min.
· |
-40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
·● max.
· |
70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
Air pressure acc. to IEC 60068-2-13 | ||||||
·● Storage/transport, min.
· |
660 hPa | 660 hPa | 660 hPa | 660 hPa | 660 hPa | 660 hPa |
·● Storage/transport, max.
· |
1 080 hPa | 1 080 hPa | 1 080 hPa | 1 080 hPa | 1 080 hPa | 1 080 hPa |
Relative humidity | ||||||
·● Operation at 25 ℃ without condensation, max.
· |
95 % | 95 % | 95 % | 95 % | 95 % | 95 % |
Connection method | ||||||
required front connector | Yes | Yes | Yes | Yes | Yes | Yes |
Mechanics/material | ||||||
Enclosure material (front) | ||||||
·● Plastic
· |
Yes | Yes | Yes | Yes | Yes | Yes |
Dimensions | ||||||
Width | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 70 mm |
Height | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
Depth | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
Weights | ||||||
Weight, approx. | 180 g | 220 g | 220 g | 190 g | 260 g | 310 g |
