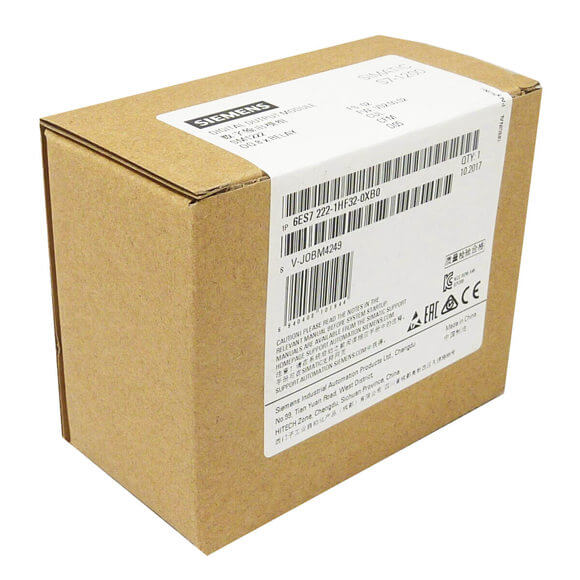

Siemens S7-1200 PLCs SM1222 I/O modules 6ES7222-1HH32-0XB0 6ES7222-1XF32-0XB0
Siemens PLC Controller Module LOGO Series
We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7222-1BF32-0XB0	6ES7222-1BH32-0XB0	6ES7222-1BH32-1XB0	6ES7222-1HF32-0XB0	6ES7222-1HH32-0XB0	6ES7222-1XF32-0XB0
	Digital Output SM1222, 8 DO, 24V DC	Digital Output SM1222, 16 DO, 24V DC	Digital Output SM1222, 16DO, 24V DC sink	Digital Output SM 1222, 8 DO, Relay	Digital Output SM1222, 16 DO, Relay	Digital Output SM 1222, 8 DO, Changeover
General information
Product type designation	SM 1222, DQ 8×24 V DC/0.5 A	SM 1222, DQ 16×24 V DC/0.5 A	SM 1222, DO 16x 24 V DC/0.5 A Sink	SM 1222, DQ 8x relay/2 A	SM 1222, DQ 16x relay/2 A	SM 1222, DQ 8x relay/2 A
Supply voltage
permissible range, lower limit (DC)	20.4 V	20.4 V	20.4 V	20.4 V	20.4 V	20.4 V
permissible range, upper limit (DC)	28.8 V	28.8 V	28.8 V	28.8 V	28.8 V	28.8 V
Input current
from backplane bus 5 V DC, max.	120 mA	140 mA	140 mA	120 mA	135 mA	140 mA
Digital outputs
·● from load voltage L+, max.·				11 mA/relay coil	11 mA/relay coil	16.7 mA/relay coil
Power loss
Power loss, typ.	1.5 W	2.5 W	2.5 W	4.5 W	8.5 W	5 W
Digital outputs
Number of digital outputs	8	16	16	8	16	8
·● in groups of·	1	1	1	2	1	1
Current-sinking			Yes
Short-circuit protection	No; to be provided externally	No; to be provided externally	No; to be provided externally	No; to be provided externally	No; to be provided externally	No; to be provided externally
Limitation of inductive shutdown voltage to	typ. (L+) -48 V	typ. (L+) -48 V	Typ 45 V
Switching capacity of the outputs
·● with resistive load, max.·	0.5 A	0.5 A	0.5 A	2 A	2 A	2 A
·● on lamp load, max.·	5 W	5 W	5 W	30 W with DC, 200 W with AC	30 W with DC, 200 W with AC	30 W with DC, 200 W with AC
Output voltage
·● Rated value (DC)·	24 V	24 V	24 V	5 V DC to 30 V DC	5 V DC to 30 V DC	5 V DC to 30 V DC
·● Rated value (AC)·				5 V AC to 250 V AC	5 V AC to 250 V AC	5 V AC to 250 V AC
·● for signal “0”, max.·	0.1 V; with 10 kOhm load	0.1 V; with 10 kOhm load	L+ minus 0.75 V DC with 10k Load
·● for signal “1”, min.·	20 V DC	20 V DC	0,5 V
Output current
·● for signal “1” rated value·	0.5 A	0.5 A	0.5 A	2 A	2 A	2 A
·● for signal “0” residual current, max.·	10 µA	10 µA	75 µA
Output delay with resistive load
·● “0” to “1”, max.·	50 µs	50 µs	20 µs	10 ms	10 ms	10 ms
·● “1” to “0”, max.·	200 µs	200 µs	350 µs	10 ms	10 ms	10 ms
Total current of the outputs (per group)
horizontal installation
·— up to 50 °C, max.·	4 A; Current per mass	8 A; Current per mass	8 A; Current per mass	10 A; Current per mass	10 A; Current per mass	2 A; Current per mass
Relay outputs
·● Number of relay outputs·				8	16	8
·● Rated supply voltage of relay coil L+ (DC)·				24 V	24 V	24 V
·● Number of operating cycles, max.·				mechanically 10 million, at rated load voltage 100 000	mechanically 10 million, at rated load voltage 100 000	mechanically 10 million, at rated load voltage 100 000
Switching capacity of contacts
·— with inductive load, max.·	0.5 A	0.5 A	0.5 A	2 A	2 A	2 A
·— on lamp load, max.·	5 W	5 W	5 W	30 W with DC, 200 W with AC	30 W with DC, 200 W with AC	30 W with DC, 200 W with AC
·— with resistive load, max.·	0.5 A	0.5 A	0.5 A	2 A	2 A	2 A
Cable length
·● shielded, max.·	500 m	500 m	500 m	500 m	500 m	500 m
·● unshielded, max.·	150 m	150 m	150 m	150 m	150 m	150 m
Interrupts/diagnostics/status information
Alarms
·● Diagnostic alarm·	Yes	Yes	Yes	Yes	Yes	Yes
Diagnostics indication LED
·● for status of the outputs·	Yes	Yes	Yes	Yes	Yes	Yes
Potential separation
Potential separation digital outputs
·● between the channels·				Relays	Relays	Relays
·● between the channels, in groups of·	1	1	1	2	4	1
·● between the channels and backplane bus·	500 V AC	500 V AC	500 V AC	1 500 V AC for 1 minute	1 500 V AC for 1 minute	1 500 V AC for 1 minute
Permissible potential difference
between different circuits				750 V AC for 1 minute	750 V AC for 1 minute	750 V AC for 1 minute
Degree and class of protection
IP degree of protection	IP20	IP20	IP20	IP20	IP20	IP20
Standards, approvals, certificates
CE mark	Yes	Yes	Yes	Yes	Yes	Yes
CSA approval	Yes	Yes	Yes	Yes	Yes	Yes
UL approval	Yes	Yes	Yes	Yes	Yes	Yes
cULus	Yes	Yes	Yes	Yes	Yes	Yes
FM approval	Yes	Yes	Yes	Yes	Yes	Yes
RCM (formerly C-TICK)	Yes	Yes	Yes	Yes	Yes	Yes
KC approval	Yes	Yes	Yes	Yes	Yes	Yes
Marine approval	Yes	Yes	Yes	Yes	Yes	Yes
Ambient conditions
Free fall
·● Fall height, max.·	0.3 m; five times, in product package	0.3 m; five times, in product package		0.3 m; five times, in product package	0.3 m; five times, in product package	0.3 m; five times, in product package
Ambient temperature during operation
·● min.·	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
·● max.·	60 °C	60 °C	60 °C	60 °C	60 °C; Number of simultaneously activated outputs: 8 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 16 at 55 °C horizontal or 45 °C vertical	60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical
·● horizontal installation, min.·	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
·● horizontal installation, max.·	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
·● vertical installation, min.·	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
·● vertical installation, max.·	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
·● permissible temperature change·	5°C to 55°C, 3°C / minute	5°C to 55°C, 3°C / minute	5°C to 55°C, 3°C / minute	5°C to 55°C, 3°C / minute	5°C to 55°C, 3°C / minute	5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
·● min.·	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
·● max.·	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Air pressure acc. to IEC 60068-2-13
·● Storage/transport, min.·	660 hPa	660 hPa	660 hPa	660 hPa	660 hPa	660 hPa
·● Storage/transport, max.·	1 080 hPa	1 080 hPa	1 080 hPa	1 080 hPa	1 080 hPa	1 080 hPa
Relative humidity
·● Operation at 25 ℃ without condensation, max.·	95 %	95 %	95 %	95 %	95 %	95 %
Connection method
required front connector	Yes	Yes	Yes	Yes	Yes	Yes
Mechanics/material
Enclosure material (front)
·● Plastic·	Yes	Yes	Yes	Yes	Yes	Yes
Dimensions
Width	45 mm	45 mm	45 mm	45 mm	45 mm	70 mm
Height	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm
Depth	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Weights
Weight, approx.	180 g	220 g	220 g	190 g	260 g	310 g
