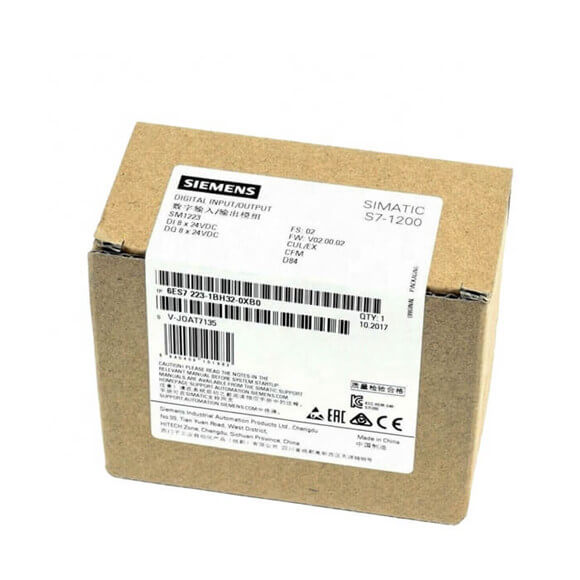

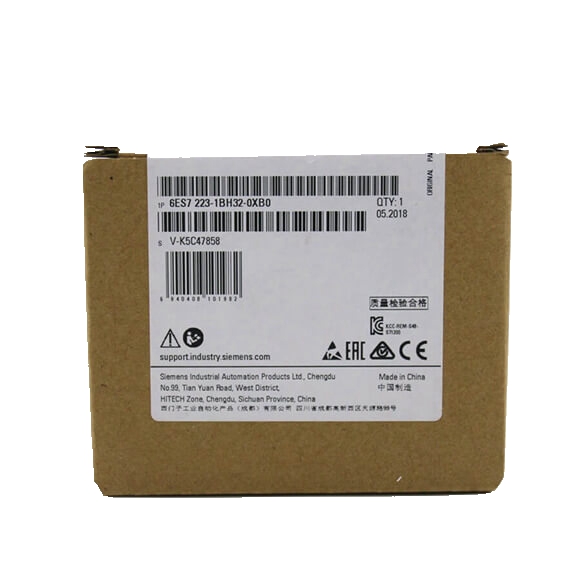

Siemens S7-1200 PLCs SM1223 I/O modules 6ES7223-1BH32-0XB0 6ES7223-1BL32-0XB0

Siemens S7-1200 PLCs SM1223 I/O modules 6ES7223-1BH32-0XB0 6ES7223-1BL32-0XB0

Series#: Siemens PLC

Product Details

Siemens S7-1200 PLCs SM1223 I/O modules 6ES7223-1BH32-0XB0 6ES7223-1BL32-0XB0
We are First Class Siemens Supplier,siemens plc dealer and siemens plc distributor in China.
We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
100% Original and new,In stock by Siemens Automation
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Article number	6ES7223-1BH32-0XB0	6ES7223-1BL32-0XB0	6ES7223-1BL32-1XB0	6ES7223-1PH32-0XB0	6ES7223-1PL32-0XB0	6ES7223-1QH32-0XB0
Article number	Digital I/O SM 1223, 8 DI / 8 DO	Digital I/O SM 1223, 16DI/16DO	Digital I/O SM 1223, 16DI/16DO sink	Digital I/O SM 1223, 8DI/8DO	Digital I/O SM 1223, 16DI/16DO	Digital I/O SM 1223, 8DI AC/ 8DO Rly
General information
Product type designation	SM 1223, DI 8×24 V DC, DQ 8×24 V DC	SM 1223, DI 16×24 V DC, DQ 16×24 V DC	SM 1223, DI 16×24 V DC, DO 16x 24 V DC Sink	SM 1223, DI 8×24 V DC, DQ 8x relay	SM 1223, DI 16×24 V DC, DQ 16x relay	SM 1223, DI 8×120/230 V AC, DQ 8x relay
Supply voltage
Rated value (DC)	24 V	24 V	24 V	24 V	24 V	24 V
permissible range, lower limit (DC)	20.4 V	20.4 V	20.4 V	20.4 V	20.4 V	20.4 V
permissible range, upper limit (DC)	28.8 V	28.8 V	28.8 V	28.8 V	28.8 V	28.8 V
Input current
from backplane bus 5 V DC, max.	145 mA	185 mA	185 mA	145 mA	180 mA	120 mA
Digital inputs
· ● from load voltage L+ (without load), max. ·	4 mA; per channel	4 mA; per channel	4 mA; per channel	4 mA/input 11 mA/relay	4 mA/input 11 mA/relay
Output voltage
Power supply to the transmitters
· ● present ·	Yes	Yes	Yes	Yes	Yes	Yes
Power loss
Power loss, typ.	2.5 W	4.5 W	4.5 W	5.5 W	10 W	7.5 W
Digital inputs
Number of digital inputs	8	16	16	8	16	8
· ● in groups of ·	2	2	2	2	2	4
Input characteristic curve in accordance with IEC 61131, type 1	Yes	Yes	Yes	Yes	Yes	Yes
Number of simultaneously controllable inputs
all mounting positions
· — up to 40 °C, max. ·	8	16	16	8	16	8
horizontal installation
· — up to 40 °C, max. ·	8	16	16	8	16	8
· — up to 50 °C, max. ·	8	16	16	8	16	8
vertical installation
· — up to 40 °C, max. ·	8	16	16	8	16	8
Input voltage
· ● Type of input voltage ·	DC	DC	DC	DC	DC	AC
· ● Rated value (DC) ·	24 V	24 V	24 V	24 V	24 V
· ● Rated value (AC) ·						120/230 V AC
· ● for signal “0” ·	5 V DC at 1 mA	5 V DC at 1 mA	5 V DC at 1 mA	5 V DC at 1 mA	5 V DC at 1 mA	20 V AC at 1 mA
· ● for signal “1” ·	15 V DC at 2.5 mA	15 V DC at 2.5 mA	15 V DC at 2.5 mA	15 V DC at 2.5 mA	15 V DC at 2.5 mA	79 V AC at 2.5 mA
Input current
· ● for signal “0”, max. (permissible quiescent current) ·	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
· ● for signal “1”, min. ·	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA	2.5 mA
· ● for signal “1”, typ. ·	4 mA	4 mA	4 mA	4 mA	4 mA	9 mA
Input delay (for rated value of input voltage)
for standard inputs
· — parameterizable ·	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four	Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
Weights
Weight, approx.	210 g	310 g	310 g	230 g	350 g	230 g
