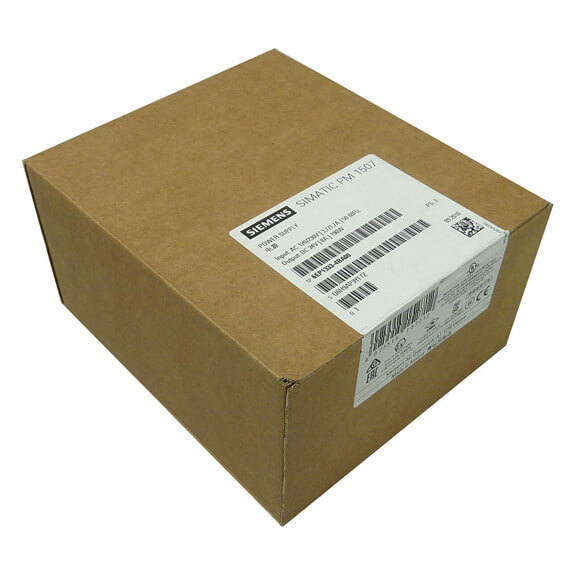

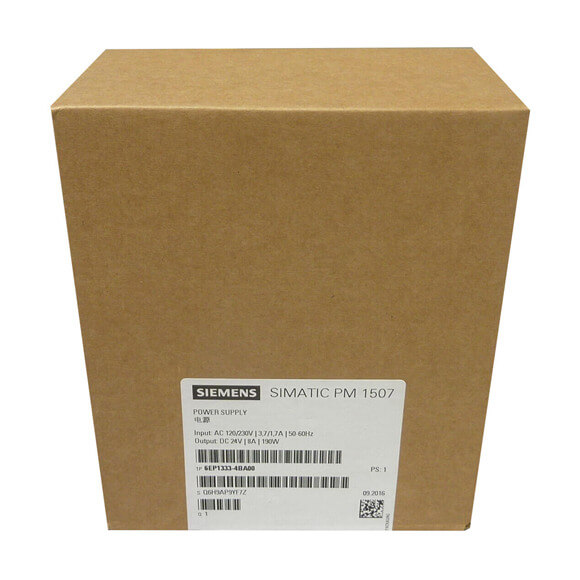

Siemens SIMATIC S7-1500 Power Module PM1507 6EP1333-4BA00

Series#: Siemens PLC

Product Details

  • Siemens SIMATIC S7-1500 Power Module PM1507 6EP1333-4BA00
  • We are First Class Siemens Supplier,siemens plc dealer and Siemens plc distributor in China.
  • We can Supply Siemens automation parts,such as Siemens PLC,Siemens Servo Motor,Siemens HMI,Siemens VFD and So on,
  • 100% Original and new,In stock by Siemens Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Article number 6EP1332-4BA00 6EP1333-4BA00
Product S7-1500 PM1507 S7-1500 PM1507
Power supply, type 24 V/3 A 24 V/8 A
Input
Input 1-phase AC 1-phase AC
·

● Note

·

Automatic range selection Automatic range selection
Supply voltage
·

● 1 at AC Rated value

·

120 V 120 V
·

● 2 at AC Rated value

·

230 V 230 V
Input voltage
·

● 1 at AC

·

85 … 132 V 85 … 132 V
·

● 2 at AC

·

170 … 264 V 170 … 264 V
Wide-range input No No
Overvoltage resistance 2.3 × Vin rated, 1.3 ms 2.3 × Vin rated, 1.3 ms
Mains buffering at Iout rated, min. 20 ms; at Vin = 93/187 V 20 ms; at Vin = 93/187 V
Rated line frequency 1 50 Hz 50 Hz
Rated line frequency 2 60 Hz 60 Hz
Rated line range 45 … 65 Hz 45 … 65 Hz
Input current
·

● at rated input voltage 120 V

·

1.4 A 3.7 A
·

● at rated input voltage 230 V

·

0.8 A 1.7 A
Switch-on current limiting (+25 °C), max. 23 A 62 A
Duration of inrush current limiting at 25 °C
·

● maximum

·

3 ms 3 ms
I²t, max. 1.3 A²·s 12 A²·s
Built-in incoming fuse T 3,15 A/250 V (not accessible) T 6.3 A/250 V (not accessible)
Protection in the mains power input (IEC 898) Recommended miniature circuit breaker: 10 A characteristic B or 6 A characteristic C Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C
Output
Output Controlled, isolated DC voltage Controlled, isolated DC voltage
Rated voltage Vout DC 24 V 24 V
Total tolerance, static ± 1 % 1 %
Static mains compensation, approx. 0.1 % 0.1 %
Static load balancing, approx. 0.1 % 0.1 %
Residual ripple peak-peak, max. 50 mV 50 mV
Spikes peak-peak, max. (bandwidth: 20 MHz) 150 mV 150 mV
Product function Output voltage adjustable No No
Status display LED green for 24 V OK; LED red for error; LED yellow for stand-by LED green for 24 V OK; LED red for error; LED yellow for stand-by
On/off behavior No overshoot of Vout (soft start) No overshoot of Vout (soft start)
Startup delay, max. 1.5 s 1.5 s
Voltage rise, typ. 10 ms 10 ms
Rated current value Iout rated 3 A 8 A
Current range 0 … 3 A 0 … 8 A
Supplied active power typical 72 W 192 W
Short-term overload current
·

● on short-circuiting during the start-up typical

·

12 A 35 A
·

● at short-circuit during operation typical

·

12 A 35 A
Duration of overloading capability for excess current
·

● on short-circuiting during the start-up

·

70 ms 70 ms
·

● at short-circuit during operation

·

70 ms 70 ms
Parallel switching for enhanced performance No No
Efficiency
Efficiency at Vout rated, Iout rated, approx. 87 % 90 %
Power loss at Vout rated, Iout rated, approx. 11 W 21 W
Closed-loop control
Dynamic mains compensation (Vin rated ±15 %), max. 0.1 % 0.1 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ. 1 % 2 %
Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ. 3 % 3 %
Load step setting time 10 to 90%, typ. 5 ms 5 ms
Load step setting time 90 to 10%, typ. 5 ms 5 ms
Setting time maximum 5 ms 5 ms
Protection and monitoring
Output overvoltage protection Additional control loop, limitation (closed loop control) at < 28.8 V Additional control loop, limitation (closed loop control) at < 28.8 V
Current limitation 3.15 … 3.6 A 8.4 … 9.6 A
Current limitation, typ. 3.4 A 9 A
Property of the output Short-circuit proof Yes Yes
Short-circuit protection Electronic shutdown, automatic restart Electronic shutdown, automatic restart
Overload/short-circuit indicator
Safety
Primary/secondary isolation Yes Yes
Galvanic isolation Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 and EN 61131-2 Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 and EN 61131-2
Protection class Class I Class I
Leakage current
·

● maximum

·

3.5 mA 3.5 mA
·

● typical

·

0.4 mA 1.3 mA
CE mark Yes Yes
UL/cUL (CSA) approval cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289 cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
Explosion protection IECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cULus (ANSI/ISA 12.12.01, CSA C22.2 No.213) Class I, Div. 2, Group ABCD, T4, File E330455 IECEx Ex nA nC IIC T3 Gc; ATEX (EX) II 3G Ex nA nC IIC T3 Gc; cULus (ANSI/ISA 12.12.01, CSA C22.2 No.213) Class I, Div. 2, Group ABCD, T3, File E330455
FM approval Class I, Div. 2, Group ABCD, T4 Class I, Div. 2, Group ABCD, T4
CB approval Yes Yes
Marine approval ABS, BV, DNV GL ABS, BV, DNV GL
Degree of protection (EN 60529) IP20 IP20
EMC
Emitted interference EN 55022 Class B EN 55022 Class B
Supply harmonics limitation EN 61000-3-2 EN 61000-3-2
Noise immunity EN 61000-6-2 EN 61000-6-2
Operating data
Ambient temperature
·

● during operation

·

0 … 60 °C 0 … 60 °C
·

— Note

·

with natural convection with natural convection
·

● during transport

·

-40 … +85 °C -40 … +85 °C
·

● during storage

·

-40 … +85 °C -40 … +85 °C
Humidity class according to EN 60721 Climate class 3K3, 5 … 95% no condensation Climate class 3K3, 5 … 95% no condensation
